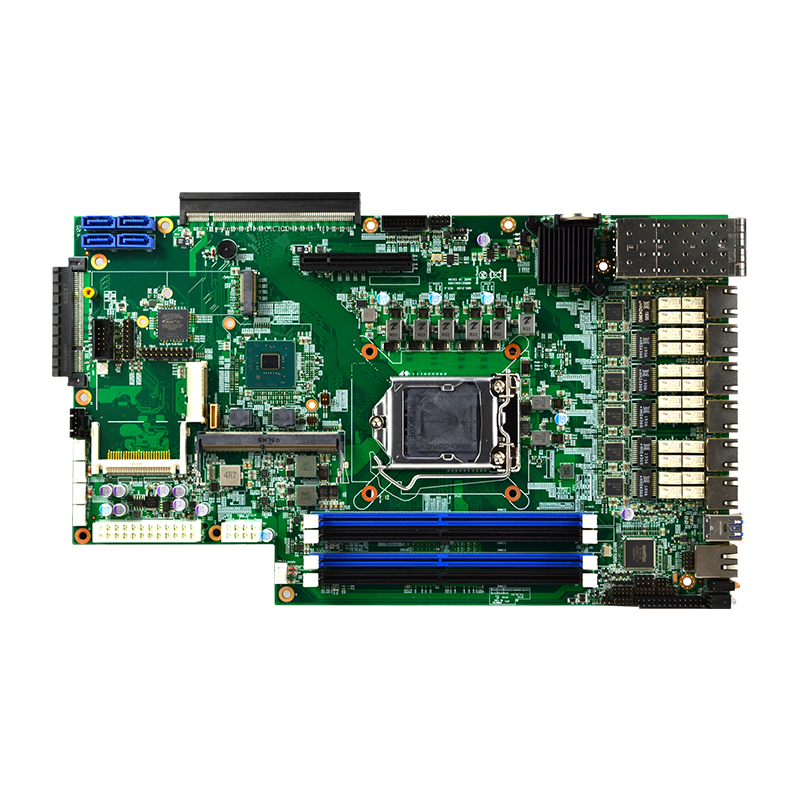

GNS-2160

基于Intel C246平台、支持可信、IPMI、6电4光，高性能的网安主板

产品型录

产品介绍
产品规格
档案下载

基于Intel C246平台、支持可信、IPMI、6电4光，高性能的网安主板

主要特点：

◆ CPU为基于Intel C246 (Coffeelake-S)平台，core8th，9th /Xeon /Pentium 系列CPU

◆ 内置M.2接口，支持可信华泰的TPCM可信卡，预留SPI总线支持TPM2.0可信卡

◆ 预留IPMI卡,SODIMM DDR4插槽，用来扩展IPMI功能

◆ 支持Red Hat\ubuntu\CentOS等操作系统

◆ 内置2条PCIex8插槽，灵活选择，便于布局各种客户卡

内存	2通道DDR4，可支持64GB
扩展	内置1个PCIex16接口，可以支持前置两扩
	1个M.2可支持可信华泰的TPCM可信卡
	1个20Pinheader，可支持TPM2.0卡
	内置2个PCIex8接口，二选一
串口	内置1个COM插针，外置1个RJ45串口
USB	2个USB3.0，板内预留双排20 Pinheader USB3.0插针，2组USB2.0插针
以太网口	板载6个RJ45千兆电口，4个SFP千兆光口
存储	4个SATA接口
存储	1个mSATA接口，标准接口定义与CF共layout，优先CF卡
电源	ATX 24Pin+8Pin
操作系统	支持开源操作系统如centos，ubantu，redhat等，国产化操作系统，如麒麟、凝思等
工作环境	工作温度0℃~ 45℃
工作环境	存储温度-40℃~ 60℃
