集智达基于飞腾D2000平台，支持8个网络模块扩展的网安整机及应用案例

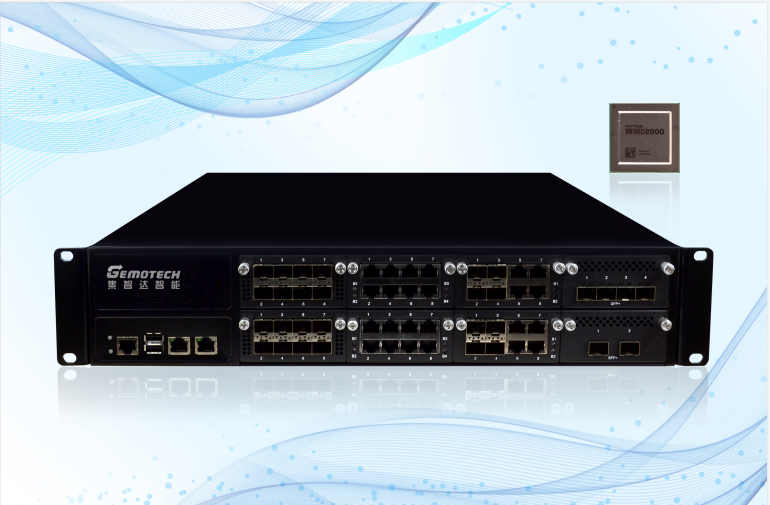

基于腾锐D2000处理器平台，支持前置8个网络扩展模块的2U网安整机。

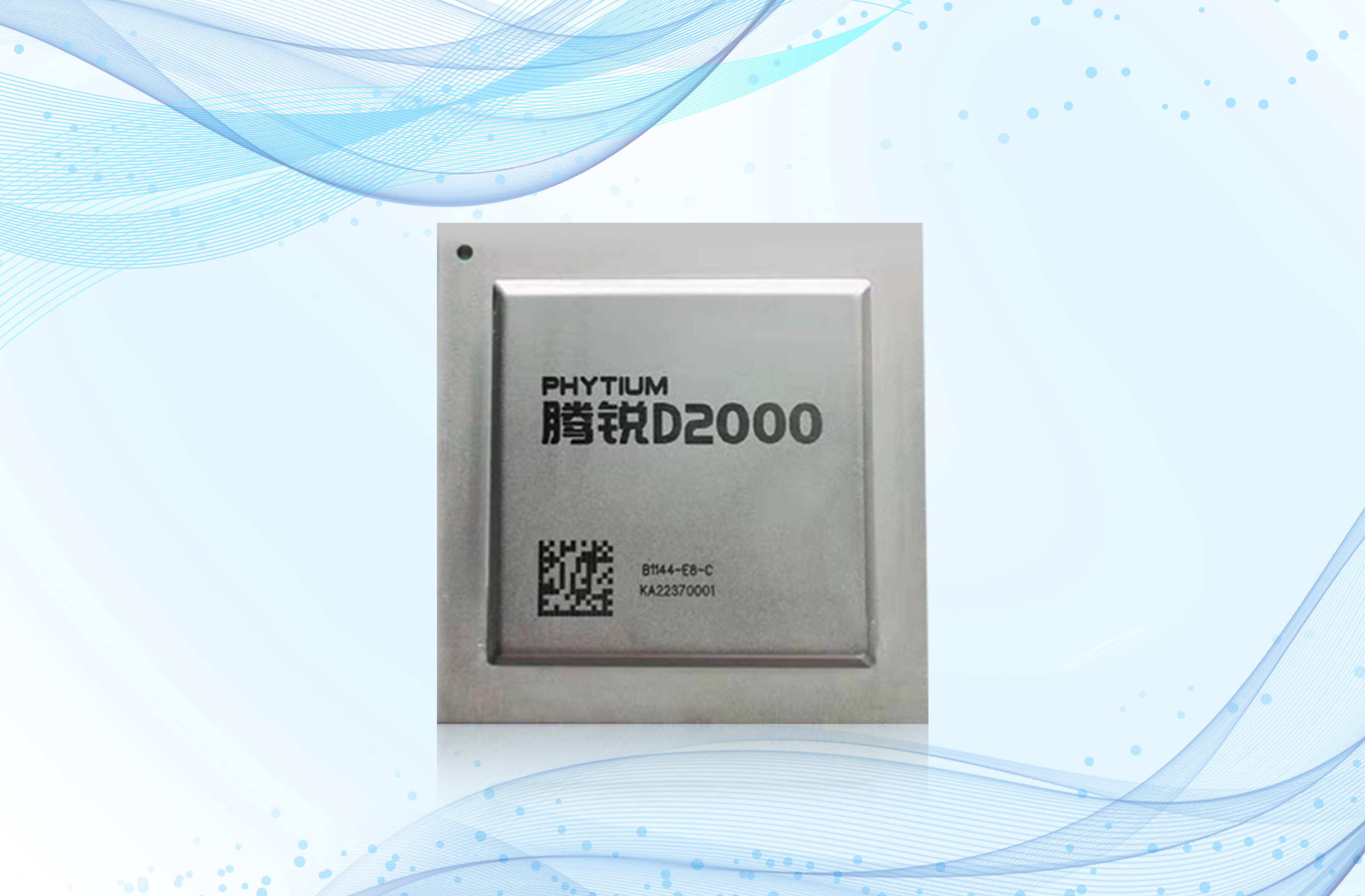

腾锐D2000 是一款高性能通用处理器，主频 2.3GHz，能够满足复杂应用场景下的性能需求和安全可信需求。

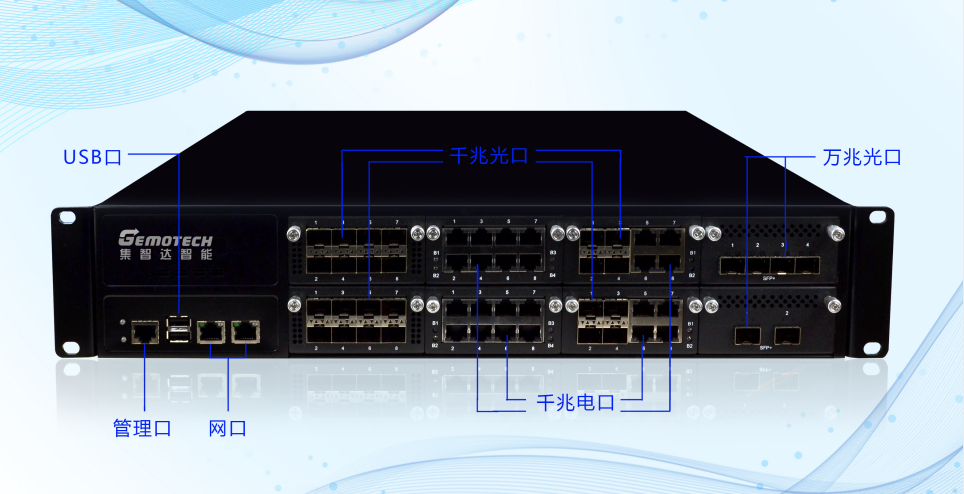

平台集成了2个千兆以太网管理口
8个前置扩展网络模块，可充份发挥网络性能
支持1个 PCle 8x 内置扩展插槽，4个DDR4 UDIMM 插槽，可支持到128GB内存
6个SATA 3.0 接口
1 个mSATA
1个CF卡接口
1个M.2 接口可支持可信卡
1个 Mini PCle
2个内置 USB 2.0 Pinheader，2个 USB2.0
1个 RJ45 Console 调试口
3个内置串口，LED指示灯

国产腾锐 D2000 8 核 CPU
2 个千兆管理电口
支持 2U 8个前置网络扩展模块
4 个 DDR4 UDIMM 插槽，整机可支持到128GB 内存
国产化 uEFI
支持多种国产化操作系统
支持可信华泰可信卡及安全软件

GNS-1303作为服务器负载均衡应用案例

随着金融行业快速发展，在银行业务访问压力越来越大的情况下，易出现部分服务器负荷过重，造成对访问者的请求响应越来越慢等严重影响访问体验的情况，而同时其他服务器负荷过轻，导致整体服务器资源利用不均。

某用户需求

设备必须是国产化平台，达到自主可控
设备硬件性能稳定，处理能力强
提供服务器负载功能，支持MBLB以及WebSocket

实施效果

通过部署服务器负载均衡对客户提供了以下：

GNS-1303作为负载均衡设备为区域业务提供了有效的负载，确保业务稳定运行
解决了MBLB和WebSocket等复杂环境下的业务访问
GNS-1303搭载腾锐D2000处理器大的吞吐性能保证了网络的实时性
产品支持国产化操作系统，从软件层面实现自主可信
作为负载均衡设备，GNS-1303采用国产网卡，保证了产品本身的网络安全
