集智达推出基于RK3568处理器网络安全硬件平台

集智达推出多款基于瑞芯微RK3568 SOC网络安全硬件平台产品，进一步丰富了在网络安全领域中ARM架构的产品系列。产品应用于边缘计算网络安全网关、工业控制信息安全检测、物联网网络安全等行业场景中。

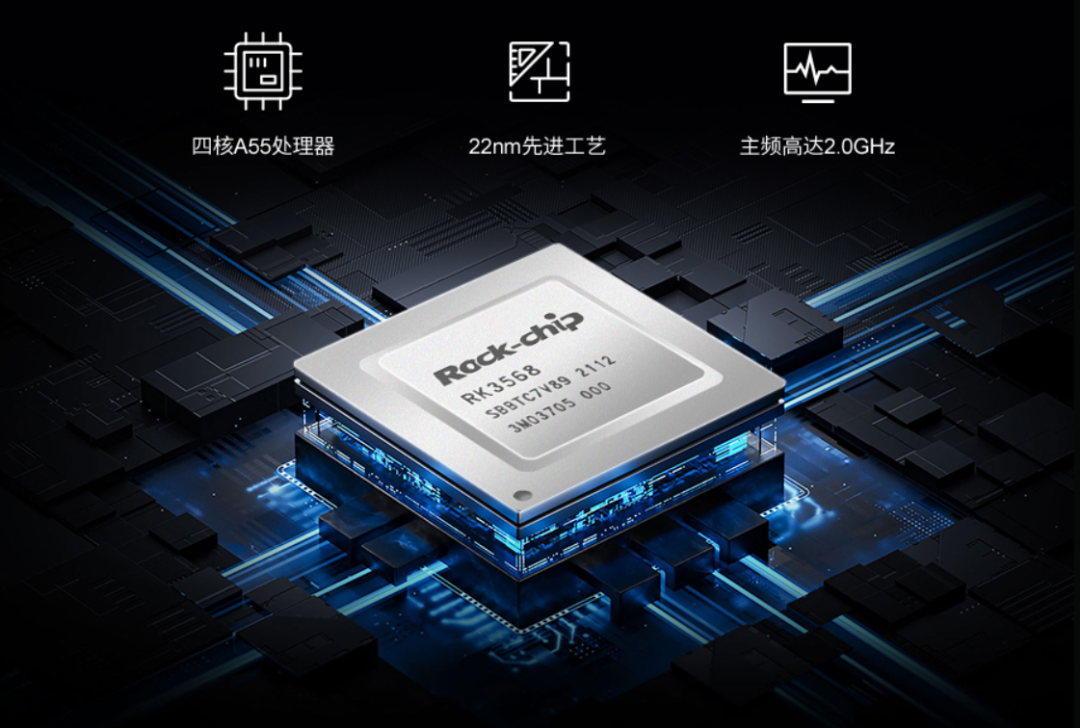

瑞芯微RK3568芯片是一款定位通用型SOC，采用22nm制程工艺，集成4核arm架构A55处理器，集成Mali G52 GPU，内置独立的 NPU。

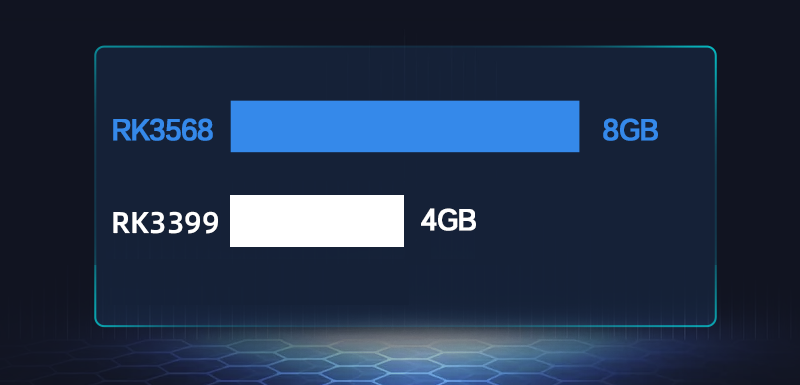

支持LP4/LP4x/LP3/DDR4/DDR3，频率可达1600Mhz，容量可支持到8GB 。

支持4K H.264/H.265/VP9等多种格式高清解码,支持1080p 60fps的H.264及H.265格式编码

支持多屏同显、多屏异显

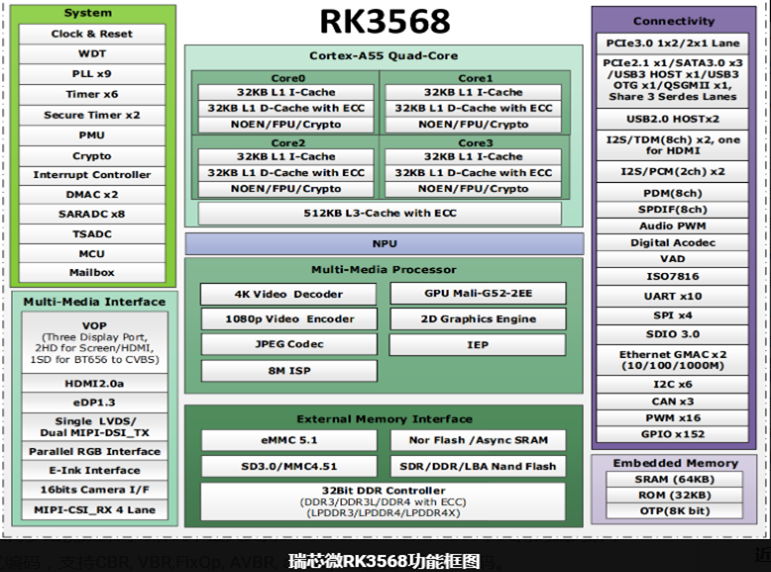

芯片逻辑框图

集智达作为国内的网络安全硬件平台提供商，基于RK3568处理器芯片较强的运算能力和丰富接口，开发了多款网络安全平台产品。

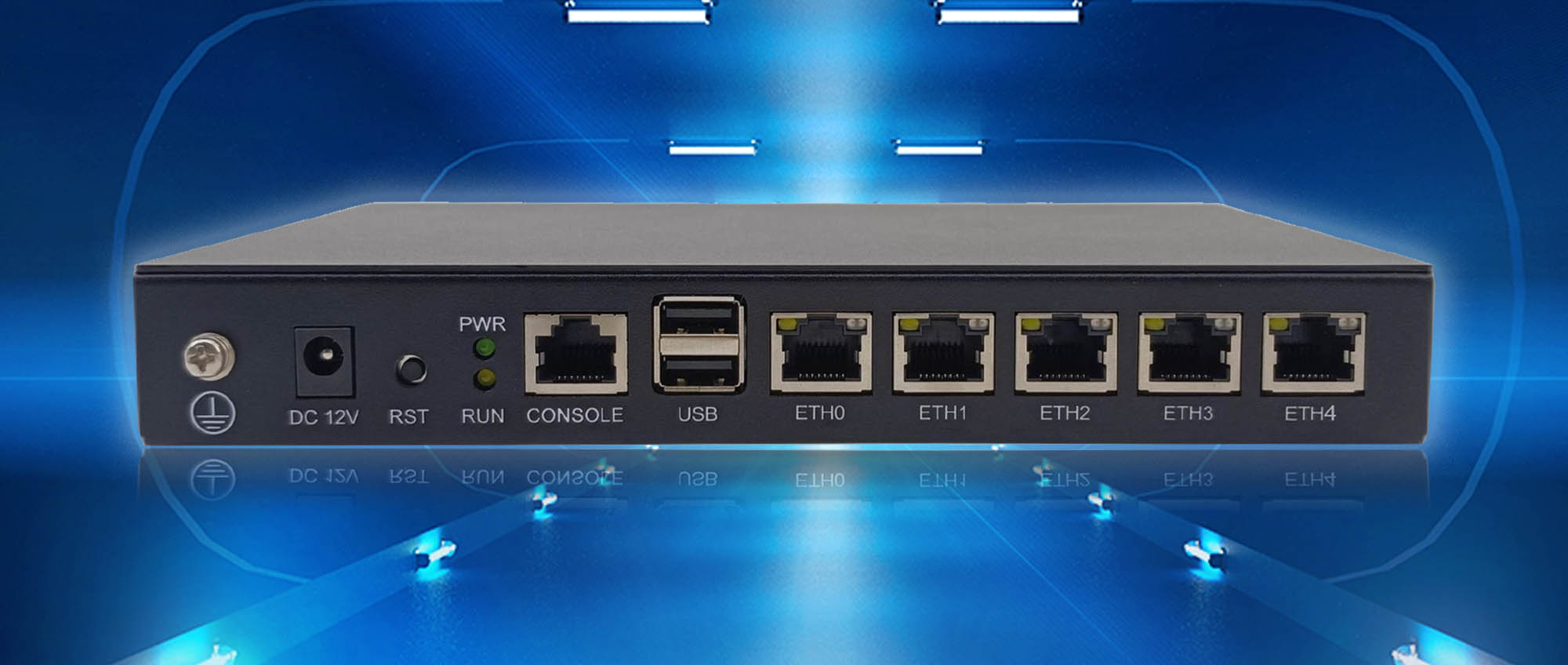

GNS-1615

基于RK3568处理器的1U上架式网络安全硬件平台

瑞芯微RK3568四核64位Cortex-A55处理器
5个独立千兆电口（网络芯片独立MAC+PHY，非交换芯片）
板载8~64GB EMMC存储，另支持，micro SD卡和SATA3.0硬盘扩展
板载1~8GB DDR4内存可选
支持4G/5G/WIFI扩展

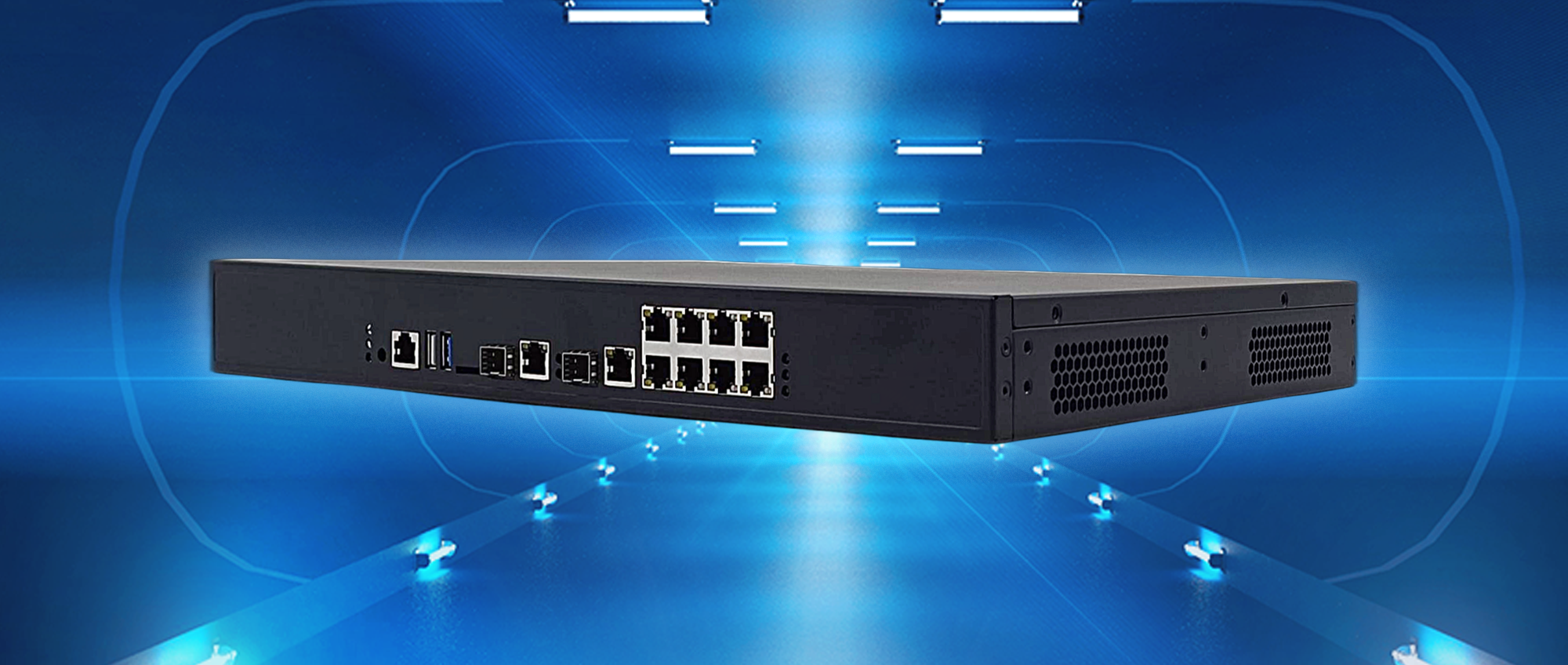

GNS-1618

1U上架式硬件平台，瑞芯微ARM 四核 Cortex-A55平台架构

瑞芯微 RK3568 四核64位Cortex-A55处理器
板载1～8GB DDR4 内存可选
8个千兆电⼝,2个 Combo口（网络芯片为独立MAC+PHY，非交换芯片）
支持4G/5G/WiFi扩展
板载8～64GB EMMC FLASH存储可选，另支持micro SD卡和SATA3.0硬盘扩展

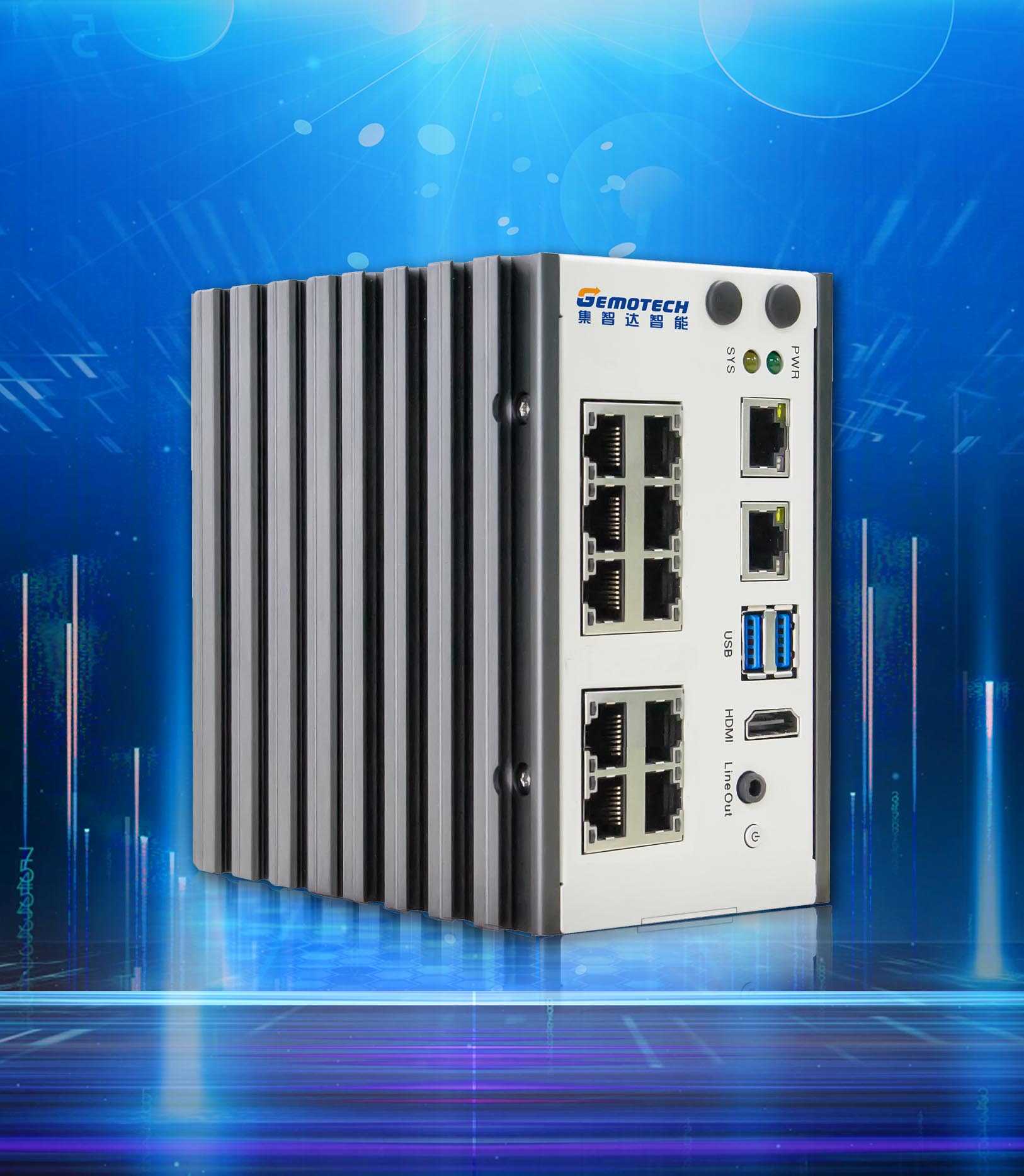

GNS-1601

基于RK3568处理器的网络安全硬件平台

搭载RK3568 四核64位Cortex-A55处理器
8电口或6电口2光口，6电口2COMBO自由选择
支持miniPCIe，M.2（PCIe+USB3.0）等扩展
支持WIFI6，LTE，5G，AI加速卡，加密卡（SPI，USB，PCIe接口均支持）
表贴DDR4 内存（4-8GB可选）

应用领域

网络安全，网络边缘计算，防火墙，物联网关等

上一篇：集智达边缘AI计算平台

下一篇：集智达推出基于腾珑E2000Q处理器网络安全平台
