集智达--MMAC-6896 无风扇工控电脑

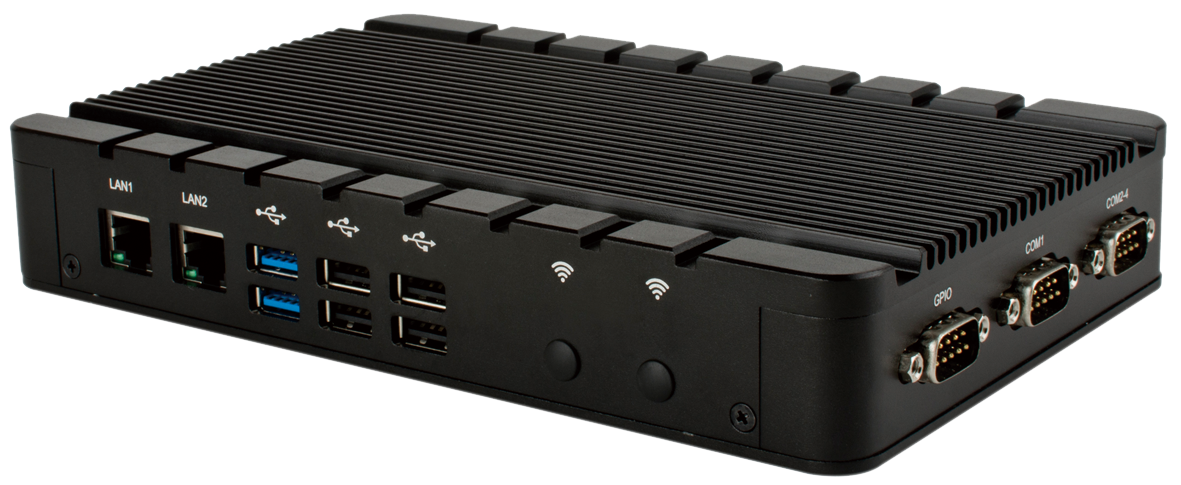

集智达MMAC-6896 英特尔®Haswell™Celeron® Processor 无风扇工控机

处理器系统	cpu	英特尔®Haswell™Celeron2957U1.4GHz双核双线程CPU
	Cpu插槽	板载
	前端总线
	芯片组	英特尔®Haswell
	BIOS	系统BIOS：SPD BIOS
内存	技术构架	DDR3 1666MT/s
	容量	16GB
	插槽	SODIMM
视频	图形控制器	英特尔®HD4000图形媒体加速器
	DVI	DVI-I接口
	分辨率	4096*2304
HDMI		HDMI 1.4
HDMI	分辨率	4096*2304
Display Port		DISPLAY PORT++1.2
Display Port	分辨率	3200*2000
多显支持		HDMI+DP+DVI同步或异步显示
网络	控制器	网络1：intel® i210 PSE千兆网卡网络2：intel® i210 PSE千兆网卡
音频	控制器	瑞显HD ALC662音频解码（左右声道+麦克风）
Super I/O	控制器	ITE8782，支持4COM
硬件监测	看门狗定时的器	定时器 1-255秒/分，溢出时引起复位
硬件监测	智能风扇	FSNLESS，全铝被动散热
TPM	控制器	N/A
I/O 接口	USB	6个USB（2个USB3.0 PORT+4个兼容USB2.0/1.1）
	串口	Com1:9线RS232，RS232/485可挑线选择，TX/RX信号支持4000V 浪涌保护
	串口	Com2-4:3线RS232，TX/RX信号支持4000V浪涌保护
	GPIO	8位，提供例程，自由定义输入/输出，3.3V@14MA电平
扩展总线	SMBUS	内部集成
	Mini-PCIe	1个半长Mini-PCIe 1x插槽，支持PCIe和USB设备
		1个全长Mini-PCIe 1x插槽，支持USB 3G/4G通讯模块
	UIM Scoket	3GUIM卡槽，内置翻盖
存储	SATA	1个7Pin SATA-Ⅲ及电源座子，传输速率3Gb/s
电源	电源类型	DC9-19V宽范围动态输入，支持电源反向保护，3PIN5.08mm凤凰头接口
电源	电源功耗	15W
指示灯	状态灯	HDD LED
		POWER LED
工作环境	工作温度	-20℃～60℃ with SSD;0℃～40℃ with 机械硬盘
	存储温度	-40℃～80℃
	工作湿度	10%～90% 相对湿度，无凝露
	存储湿度	10%～90% 相对湿度，无凝露
外观尺寸	尺寸	210mm（长）136mm（宽35mm（高）

特点
英特尔®Haswell Celeron1.4GHz or 1.6GHz 双核双线程处理器可支持16GB DDR3插槽英特尔®HD4000图形媒体加速器支持HDMI+DP+DVI，同步或异步显示 6个USB，4个COM 1个全长Mini-PCIe（支持USB 3G/4G通讯模块） 1个半长Mini-PCIe（支持PCIe和USB设备） 1个半长M-SATA（用于储存） 2个英特尔®I210 POE千兆网卡直流9-19V输入
MMAC-6896-57U intel®Haswell ™Celeron ®Processor2957U1.4GHz，DVI-I/HDMI/DP显示，2个千兆网络，4个串口，6个USB，直流9-19V输入 MMAC-6896-80U intel®Haswell ™Celeron ®Processor2980U1.6GHz，DVI-I/HDMI/DP显示，2个千兆网络，4个串口，6个USB，直流9-19V输入
