GEA-8625-UFT工控机

主要特点

◆FT2000/4C 飞腾 CPU，4 个 FTC663 内核，工作主频 2.6~3.0GHz

◆支持大唐高鸿安全芯片，支持 TCM1.0、TPM2.0，支持 SM2/SM3/SM4 等国密算法，支持等保 2.0

◆2 个 DVI 和 1 个 HDMI 接口的 MXM 显卡，采用和 PCI-Express 兼容的通讯协议，可配置多种图形芯片，以提供图形处理解决方案

◆ 20个USB2.0/USB3.0接口，满足多USB设备的接入

◆ 支持1组Bypass功能

产品型录

产品介绍
产品规格
档案下载

产品概述

FT-2000/4 芯片是飞腾片上并行系统（PSoC）体系结构设计的通用微处理器，兼容 ARMv8 指令集

整机集成了 2 个RJ45 千兆以太网口，2 通道DDR4-3200 DIMM 插槽，可支持到128GB 内存，3个SATA 3.0 接口， 1 个 MSATA，1 个 PCIe 8x 内置扩展插槽可支持多种客户卡；1 个 MXM 显卡接口，搭配各种显卡，可满足客户对显示接口的要求；1 个 Pinheader 可支持可信卡，1 个 Mini PCIe，4 个 USB 3.0，16 个 USB2.0，用以外设连接需求，预留 3 组 Pinheader 串口，其中 1 组为 DB9，2 个 LED 指示灯，3 组 CAN 口，支持 Audio 等。

主要特点

◆FT2000/4C飞腾CPU，4个FTC663 内核，工作主频 2.6~3.0GHz

◆支持大唐高鸿安全芯片，支持TCM1.0、TPM2.0 ，支持SM2/SM3/SM4 等国密算法，支持等保2.0

◆2个DVI 和 1个HDMI接口的MXM显卡，采用和 PCI-Express 兼容的通讯协议，可配置多种图形芯片，以提供图形处理解决方案

◆20个USB2.0/USB3.0接口，满足USB设备的接入

◆ 支持1组Bypass功能

订购信息

订货号

裸机型号

基本配置

可选配件

随机配件包

10G80862500XA

GEA-8625- UFT

FT-2000/4 / 2 电口 / 16 个 USB2.0 / 4 个 USB3.0 / 1个内置 PCIe 8x 扩展插槽 / 1 个 MXM 显卡接口 / 1 个Mini PCIe 接口 / 1 个 20 Pinheader 可信卡接口

内存/ 硬盘/ 可信卡/ 扩展显卡 / 电子盘

上架镙钉 / 电源线 / 用户说明书

主板型号	GEA-6625-UFT
处理器系统	FT-2000/4 核，2.6~3Ghz
内存	2条DIMM Socket支持 DDR4-3200 内存，可支持到128GB

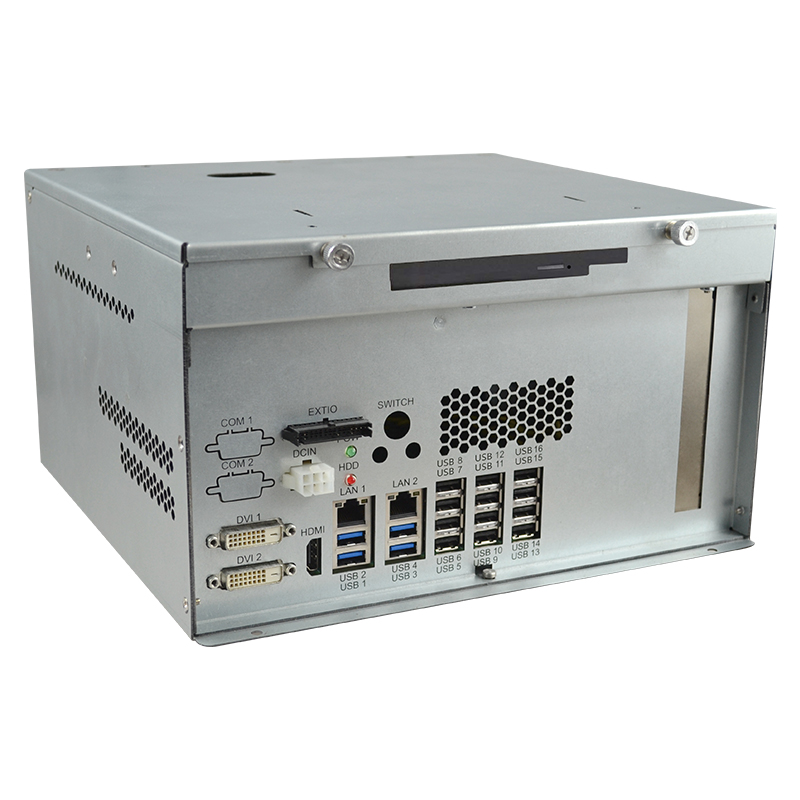

前面板 I/O 接口	PWR，HDD 灯
	24V DC IN 接口
	EXT IO接口，连接整机开关键和 Audio 音频接口
	预留2个COM接口
	2个DVI 接口和1个HDMI接口
	2 个 RJ45 千兆网卡接口
	预留笔记本光驱接口
	4个USB3.0，16个USB2.0接口
后面板 I/O 接口	暂无，根椐客户需求定义
扩展	1 个 PCIe 8x 插槽，可插客户卡
	1 个 Mini PCIe 插槽，可插 4G/WIFI 模块或其它设备
	1 个 20 Pinheader，可插大唐高鸿安全芯片TPM2.0卡
	2 个 RS232 Pinheader 内置接口
	3 个 CAN 接口
	1 个 DB9 接口
	1 个 Audio 接口
以太网口	板载2路 RJ45千兆电口、支持1组Bypass功能
存储	1 个 mSATA 接口
存储	3 个 SATA 接口，支持 2.5 或 3.5 硬盘
电源	支持外接 6PIN 电源接口，直流 DC 24V
操作系统	银河麒麟、泰山国心、深度、开源 Linux
工作环境	工作温度 0℃ ~ 60℃
	存储温度 -40℃ ~ 70℃
	0% ~ 90% 相对湿度，无凝露
外观尺寸	270mm x 253mm x 154mm（长x 宽 x 高）
