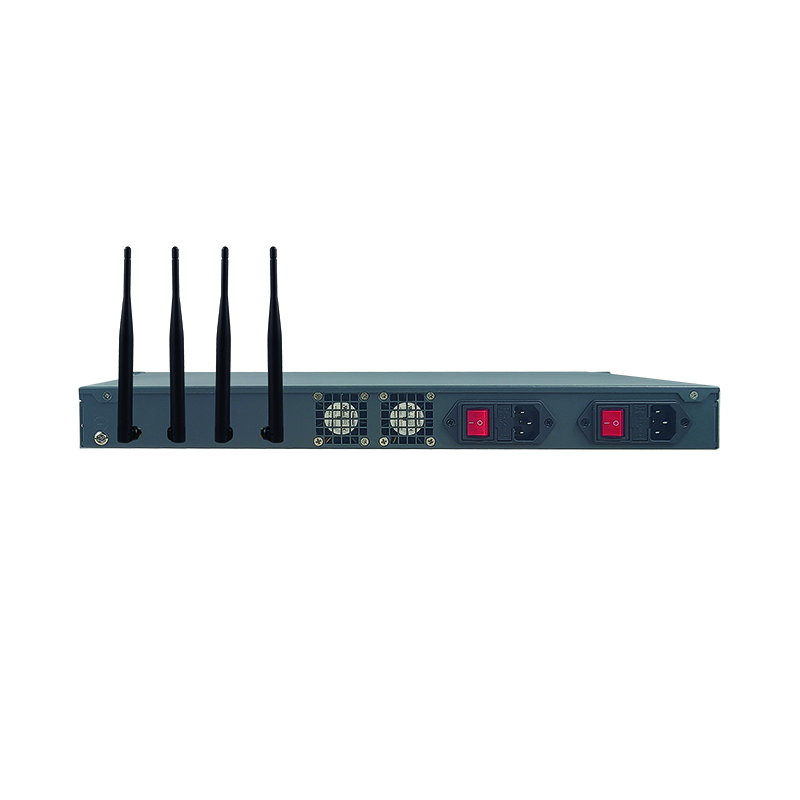

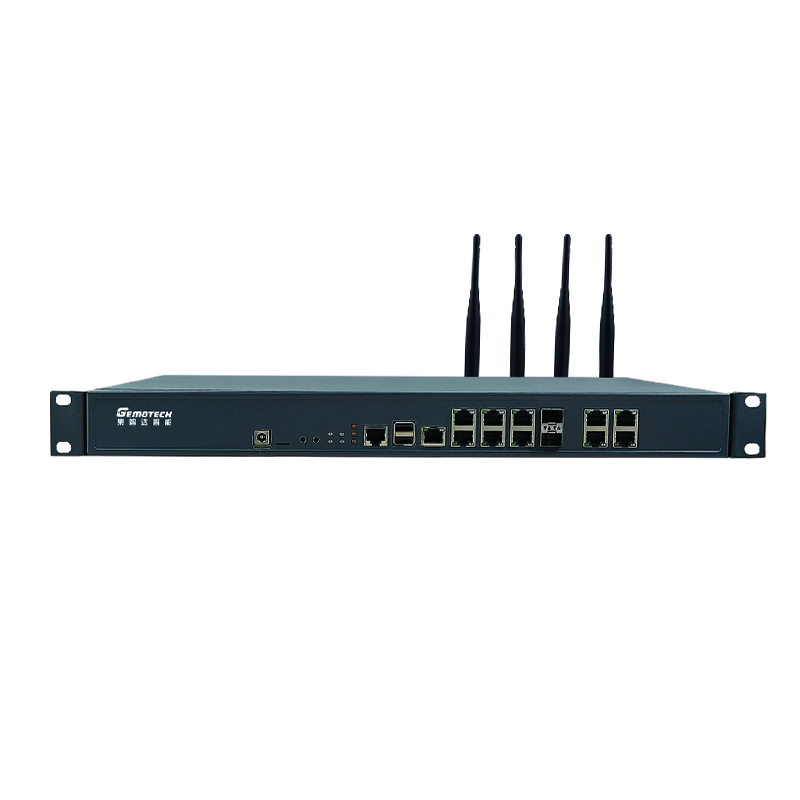

GNS-1602

GNS-1602系列产品是集智达基于瑞芯微RK3568平台开发的一款多网口、低功耗、可靠的网络安全产品。网络支持9电+2COMBO，全独立千兆网络，用户可灵活配置成11电或者9电+2光，同时支持WIFI6、4G、5G 等无线功能的扩展。适用于网络安全领域的防火墙、VPN、接入网关的应用。

产品型录

产品介绍
产品规格
档案下载

GNS-1602系列产品是集智达基于瑞芯微RK3568平台开发的一款多网口、低功耗的网络安全产品。网络支持9电+2COMBO，全独立千兆网络，用户可灵活配置成11电或者9电+2光，同时支持WIFI6、4G、5G等无线功能的扩展。适用于网络安全领域的防火墙、VPN、接入网关的应用。

主要特点

RK3568四核64位Cortex-A55 22nm处理器，主频可达2Ghz
网络支持5电+2COMBO（可扩展支持9电+2COMBO），支持1-3组BYPASS
支持全信号的miniPCIe、USB接口设备扩展
可通过miniPCIe扩展加密卡、WIFI6、4G模块
独立WIFI模块
可通过M.2接口扩展4G、5G无线通讯
支持1路SATA 外扩硬盘
预留HSCET加密芯片功能
内置双电源接口及电源监控功能

CPU	RK3568（4核A55 2.0GHz）
内存	核心板表贴LPDDR4颗粒，支持2G/4G/8G容量
显示	显示芯片 : CPU自带HDMI 接口形态 : HDMI TYPE A接口
网络	千兆5电 +2COMBO，或9电+2COMBO（PCIE扩展4千兆电）
BYPASS	1~3 组BYPASS , 根据客户需求选择是否支持
存储	SATA 接口 : 1 个 SATA3.0接口，标准接口定义，配SATA 电源接口，预留硬盘槽位 EMMC: 支持8G-64GEMMC，核心板表贴 , 默认32GB
串口	1RJ-45 连接器（无LED，卡线口位于连接器下方） 1路基于RS232/RS485 的端子串口（3PIN）（默认不焊接） 1路25pin板载插针串口COM2
USB	前面板一个USB2.0 OTG，TYPE A 前面板一个USB2.0 HOST，TYPE A 接口预留On-Board 2*USB2.0 PIN Header
miniPCIe接口	1路miniPCIe接口引入PCIE 1X信号用于连接miniPCIe设备/加密卡及 WIFI6
M.2（4G/5G）接口	支持2242/2280尺寸，有USB3.0信号以及PCIE信号引入，支持4G，5G
TPM 接口	SPI总线，20PIN定义，板载，可支持大唐高鸿软件机
TF 卡接口	1路TF卡接口，从主板后端引出
FAN 插座	CPU及system风扇供电接口。4PIN防呆2组
电源接口	默认12V DC JACK 接口( 桌面型使用 )，同时支持ATX供电，需兼容单电源（交流/直流）、双电源（交流/直流），支持PMBUS电源监控功能
GPIO	除系统或LED外，内置1组8位的GPIO控制插针
RTC	电池供电 RTC
Watchdog	支持软件可编程及硬件复位，可以控制BYPASS的状态、进行系统复位
Buzzer	1 个蜂鸣器
软件	系统 : Debian/Ubantu/centos，UBOOT启动
散热	无风扇:采用固定散热片方式，预留散热片孔位
工作环境温度	0~55度
适配机箱	430mm390mm44mm ，1U上架以及桌面型安装方式
