GNS-2415

基于海光 3280 处理器双路信创主板

产品型录

产品介绍
产品规格
档案下载

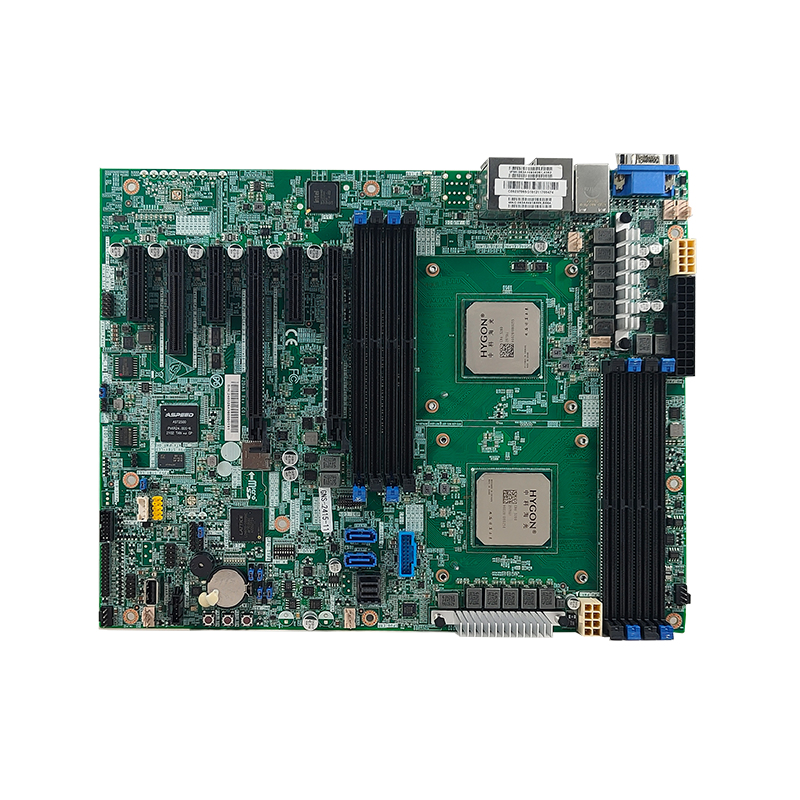

GNS-2415 是一款基于国产 X86 架构的海光 3280 处理器高性能服务器主板，支持双路、6 个内置扩展插槽，提供企业级计算性能和丰富扩展能力，具有出色的软硬件兼容性。

主要特点

◆ 国产化x86平台，支持双路海光二号3280 CPU

◆ 高主频，16核，提供更强算力

◆ 支持内置多达6个PCIe插槽，不同带宽，多样选择

◆ 高内存带宽，8条DDR4 /RDIMM/UDIMM ECC/no ECC,内存容量可达512GB

◆ 板载BMC远程管理功能

◆ 丰富的IO接口，可灵活选择和搭配

处理器

海光 3280 处理器 ×2

内存

8 槽

RDIMM/UDIMM ECC/no ECC

最大可支持到 512GB

支持双通道

存储

2 个 SATA3.0 接口

1 个 mini SAS 接口

显示

1*VGA

扩展插槽

2*PCIe 3.0 ×16（同时插两块卡为 x8）

1*PCIe 3.0 ×8（x4 in x8 Slot）

3*PCIe 3.0 ×4（x1 in x4 Slot）

面板 I/O 接口

2 个千兆 RJ45 网口

1 个 RJ45 千兆 BMC 管理网口

4 个 USB3.0

1 个 VGA 口

3* 音频孔

内部接口	2 个 SATA 3.0，1 个 mini SAS 接口 2 个 PCIe 3.0 ×16 1 个 PCIe 3.0 ×8（x4 in x8 Slot） 3 个 PCIe 3.0 ×4（x1 in x4 Slot） 8DIMM Slots, 2 Channels Per CPU 2 个 SYS_FAN，2 个 CPU_FAN 电源接口 24Pin +8Pin+8Pin 1 个 PMBUS 接口 1 个 CLR_CMOS，1 个 JGUI1，1 个 JAT_ATX
电源输入	550W 冗余电源
工作温度	0℃ ~ 40℃
存储温度	-40℃ ~70℃
相对湿度	10%~90%( 无凝结 )
主板尺寸	305mm x 245mm x 1.6mm( 长 x 宽 x 高 )

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
