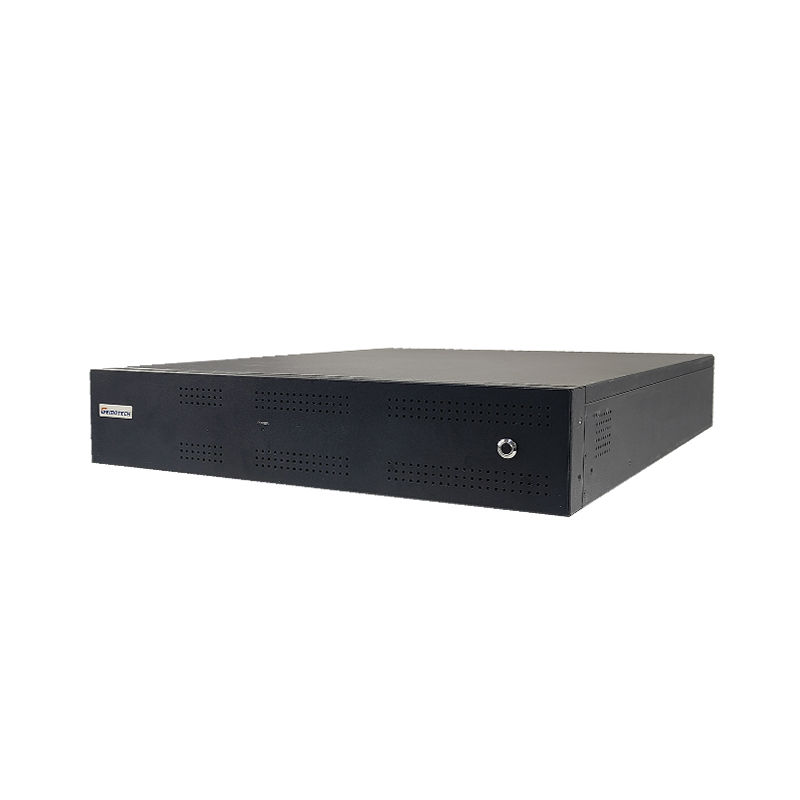

GNS-1905

网络安全服务器

华为鲲鹏920 ARM64架构处理器，16/24核高性能满足国产化计算需求。
内置CPU直连万兆SFP+通信端口，实现高速低延时通讯。
内置独立IPMI专用网口，支持智能平台管理，提升运维效率。
预留3路高速PCIe 4.0扩展槽，兼顾性能与空间兼容性，完美适配硬件扩展。
内置高速M.2 NVME存储插槽，满足高速数据读写需要。
2U标准机架式整机，内置1+1冗余电源

产品型录

产品介绍
产品规格
档案下载

网络安全服务器

华为鲲鹏920 ARM64架构处理器，16/24核高性能满足国产化计算需求。
内置CPU直连万兆SFP+通信端口，实现高速低延时通讯。
内置独立IPMI专用网口，支持智能平台管理，提升运维效率。
预留3路高速PCIe 4.0扩展槽，兼顾性能与空间兼容性，完美适配硬件扩展。
内置高速M.2 NVME存储插槽，满足高速数据读写需要。
2U标准机架式整机，内置1+1冗余电源

处理器系统	华为Kunpeng 920系列处理器，24核，2.6GHz
内存	4条 DDR4 2666/2400 UDIMM内存插槽
内存	内装32GB（4*8GB）DDR4 3200M UDIMM，Max 512GB
LAN	2个千兆 RJ45 网口，Kunpeng 920内置网卡
	2个万兆 SFP+ 网口，Kunpeng920内置网卡
	1个IPMI RJ45千兆管理网口
扩展接口	3个 x16 PCIe插槽（PCIe 4.0 8 Lane）
扩展接口	1个 M.2 插槽（PCIe 4.0 4 Lane）
前面板I/O接口	支持2x16个字符LCD模块
	PWR电源状态/HDD状态
	电源开关键

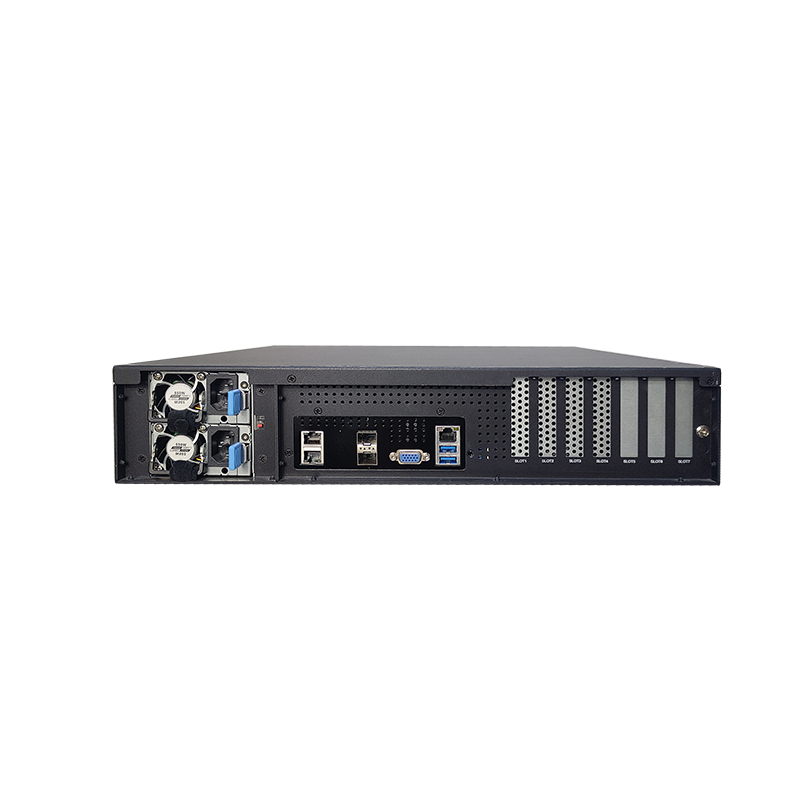

后面板I/O接口	1个DB-15 VGA接口，4个USB 3.0接口
	2个RJ45 千兆电口，2个SFP+ 万兆网口，2个LED（SFP+网络通信指示灯）
	1个RJ45 千兆管理网口
存储	2个 SATA接口
存储	内置1个512GB SATA SSD（SATA0）
电源	550W CRPS冗余电源
电源	AC220V输入
操作系统	OpenEula 22.03 SP4
管理功能	内置 BMC 模组，支持 IPMI2.0、KVM Over IP、虚拟媒介等高级管理功能， 1个专用 1Gbps RJ45 BMC管理网口
显示	集成显示控制器（最大分辨率1920 x 1200）
整机尺寸	560mm88mm440mm（深x高x宽）
工作环境	工作温度： 0℃～40℃(41℉～104℉)
	存储温度：-40℃～60℃(-40℉～140℉)
	相对湿度：0%～90%（无凝结）

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
