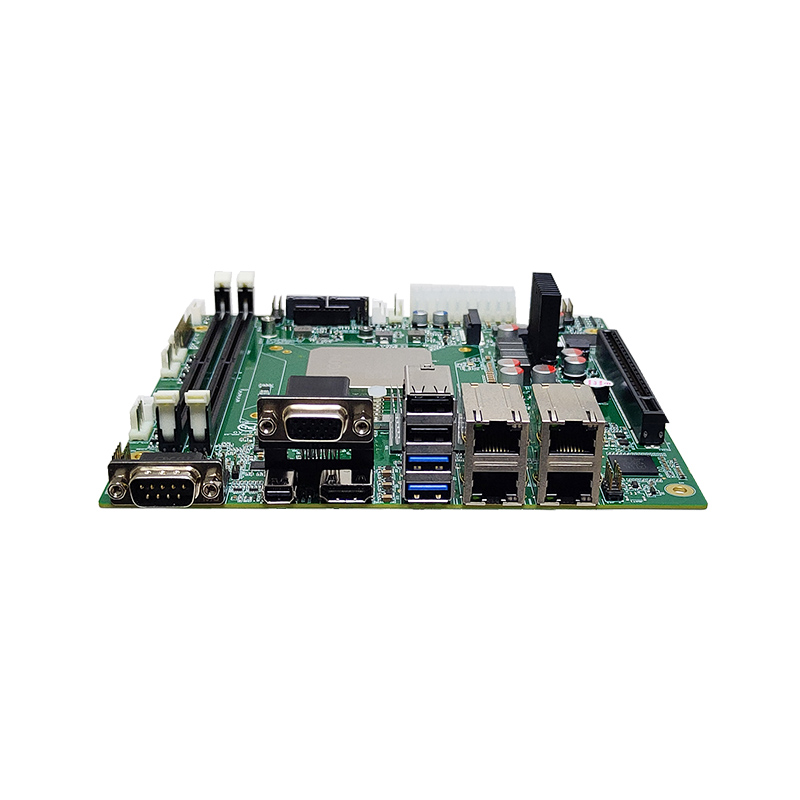

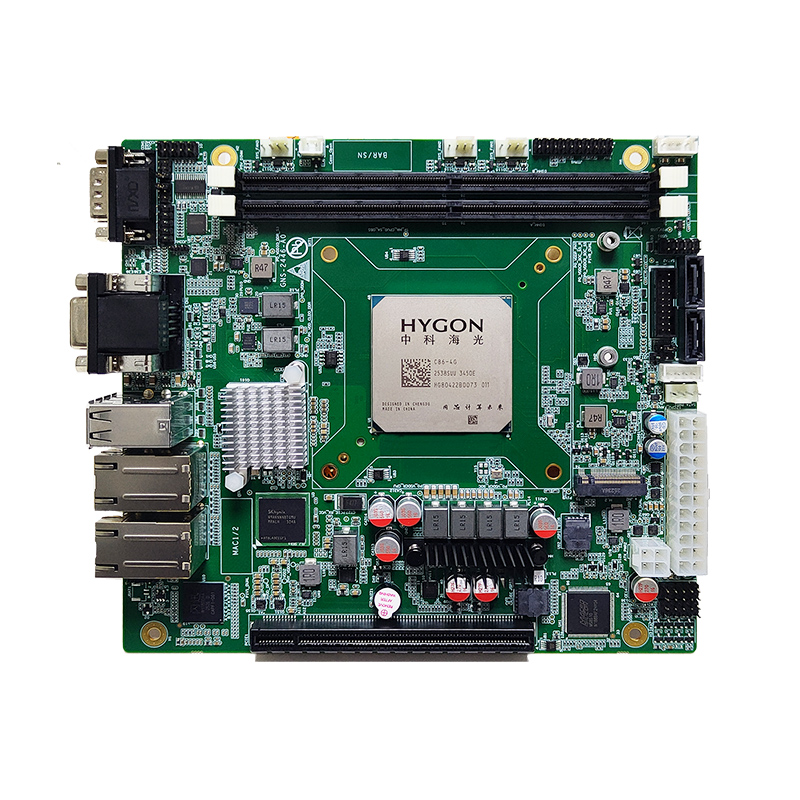

GNS-2446工业主板

主要特点：
国产化设计
自主知识产权处理器，海光四号平台
支持最高CPU主频：8核16线程3.6GHz
双通道DDR5 5600 UDIMM non-ECC, 最高容量可达128G
内置高性能GPU，独立三组显示，HDMI+Mini DP+VGA
支持1个PCIe X16插槽，1个M.2插槽
四路千兆网络
支持麒麟、UOS、欧拉国产操作系统
Mini-ITX兼容，185mm x 170mm

产品型录

产品介绍
产品规格
档案下载

产品概述

GNS-2446 采用国产器件，Mini-ITX 兼容版型（185mm×170mm）适配空间受限场景。核心支持海光 4 号高性能国产处理器，搭配 DDR5 non-ECC 高速内存（最大 128GB），板载风华 2 号 GPU，支持三屏独立输出（HDMI/Mini DP 4K@60Hz, VGA 1080P@60Hz），兼顾强算力与图形处理能力和多路显示输出。

接口配置丰富：内置4路千兆网卡保障高速通信，8路USB+2路串口拓展通用外设接入，1路RS422/485工业串口适配工业现场需求。产品兼具性能强、尺寸小、扩展全的优势，可无缝部署于工业自动化、网络安全、POS 终端、边缘计算等国产化应用场景。

主要特点：

国产化设计
自主知识产权处理器，海光四号平台
支持最高CPU主频：8核16线程3.6GHz
双通道DDR5 5600 UDIMM non-ECC, 最高容量可达128G
内置高性能GPU，独立三组显示，HDMI+Mini DP+VGA
支持1个PCIe X16插槽，1个M.2插槽
四路千兆网络
支持麒麟、UOS、欧拉国产操作系统
Mini-ITX兼容，185mm x 170mm

处理器

型号

Hygon 3450

Hygon 3430

主频

3.6GHz

（即将发布）

核数/线程数

8核16线程

TDP

75W

L3 Cache

16MB

Socket

BGA

内存

规格

DDR5 non-ECC，4800/5200/5600MHz

插槽数量

2x DDR5 UDIMM

最大容量

128GB

扩展槽

PCIe x16插槽

1（PCIe Gen5 x8Lane※）

MiniPCIe插槽

无

显示

芯片

风华2号 3F99A4，2GB显存

连接器

1x VGA，1x Mini DP，1x HDMI

分辨率

HDMI/Mini DP 4K@60Hz，VGA 1080P@60Hz（详见手册）

多屏显示

最大支持三屏独立输出（详见手册）

存储设备

SATA

2x SATA3.0（600MB/s）

M.2 NVME

1x 2280 M.2 M-KEY（PCIe Gen5 x4 Lane※）

以太网

芯片

网讯WX1860A4

连接器

4x RJ45

速率

10/100/1000Mbps

后置I/O

串口

1 x DB9，RS232（5线）/422/485

VGA

1x DB15 VGA

Display Port

1x Mini DP

HDMI

1x HDMI2.0 A Type

网口

4x RJ45 10/100/1000M Base-T

USB

2x USB3.1 Type A，2x USB2.0 Type A

音频接口

无

内置接口

USB

4（2x USB3.1，2x USB2.0）

串口

2（1x RS232（9线），1x RS232（5线）/RS422/RS485（与COM1复用））

GPIO

1路8-bits GPIO接口

SPI_TPM

有

PMBUS

无

电源

输入

24+4Pin ATX电源供电

环境

温度

工作温度：0~60℃，存储温度：-20~75℃

湿度

工作湿度：10%~90%（无凝结），存储湿度：5
