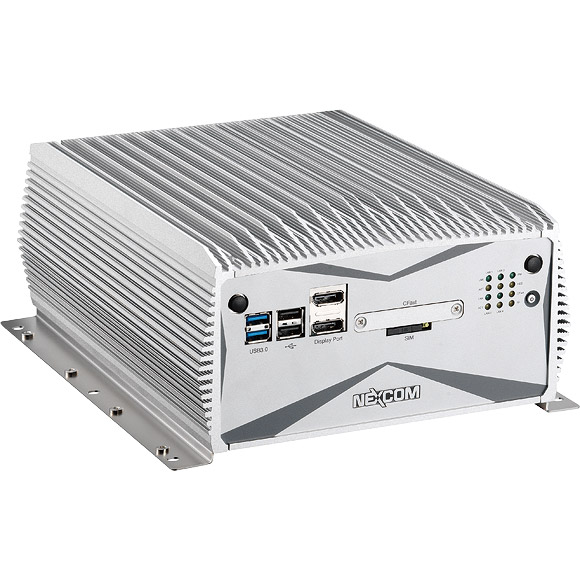

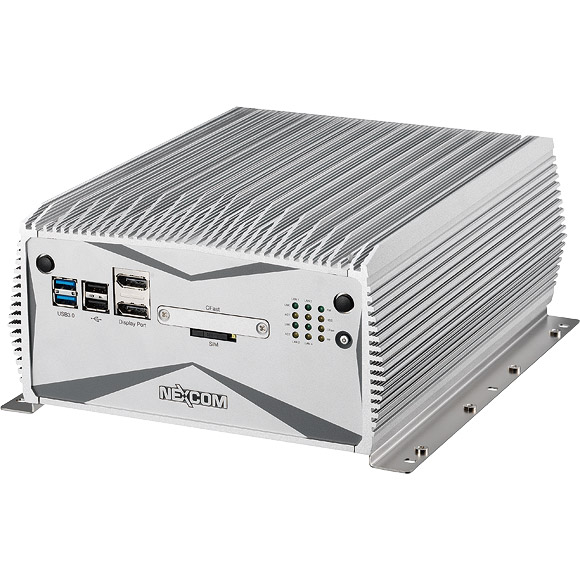

NISE 3640VR

第三代Intel® Core™ i7系统,2x 3.5” SATA HDD, 4x LAN, 3独立显示

主要特点

  • 板载第三代Intel® Core™ i7 BGA处理器
  • 移动Intel® QM77 PCH
  • 支持2x 3.5” SATA HDD
  • 2x Display Port; 1x VGA; 1x DVI-D
  • 4x Intel® 82574IT GbE LAN端口;支持WoL, teaming和PXE功能
  • 2x USB3.0; 2x USB2.0
  • 2x DB9用于RS232/422/485; 1x DB44串口用于4x RS232
  • 1x 内置的Mini-PCIe插槽,支持可选的Wifi 或 3.5G模块
  • 1x CFast插槽; 1xSIM卡槽
  • 支持+24VDC电源输入;支持ATX电源模式
  • 支持2x 3.5” HDD

* 备注:产品推出时,通风口设计将考虑在内

产品型录

  • 产品介绍
  • 产品规格
  • 档案下载

NISE 3640VR基于第三代Intel® Core™ i7 17W BGA type处理器,搭配QM77 PCH平台,并依然秉承NISE家族高性能、丰富的I/O、无风扇和无电缆设计等特点,更好地满足了市场需求。



NISE 3640VR配置4x Intel® 82574IT GbE LAN控制器,支持4路摄像,更好吞吐量;同时支持WoL、LAN teaming和PXE功能。并提供高性能图像和视觉检测,可用于交通控制、超速监控、实时更新和电子警察等。另外,NISE 3640E系列支持2x RS232/422/485, 4x RS232, 2x USB3.0, 2x USB2.0, 1x CFast插槽, 1x SIM卡槽,和1x 内置Mini-PCIe插槽,支持可选的WiFi 或 3.5G模块。NISE 3640VR支持2x 3.5” HDD,面板带有通风孔以便硬盘散热,配置 2x USB3.0, 2x USB2.0, 2x Display port, 1x VGA, 1x DVI-D, 2x RS232/422/485 和4x RS232。凭借其无风扇、无缆线设计和宽温操作等特点,NISE 3640E系列可在极端温度变化和振动存在的苛环境下运行。

CPUOnBoard 3rd generation Intel® Core™ i7 BGA processor Core™ i7-3517UE, Dual Core, 1.7GHz, 4M Cache Mobile Intel® QM77 PCH
内存On-board 2x DDR3/DDR3L SO-DIMM, supports up to 8GB DDR3/ DDR3L 1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G Industrial Grade Memory as the manufacture configuration for shipment
显示选项Three Independent Display (only support on 3rd Generation Processor)
- Two Display Port and 1x VGA
- Two Display Port and 1x DVI-D
Dual Independent Display
- VGA and DVI-D
- Display Port and VGA
- Display Port and DVI-D
- Display Port and Display Port

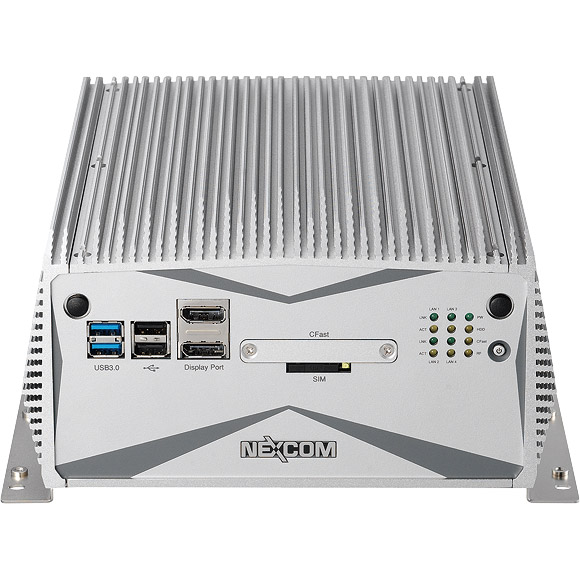

前置I/O界面ATX power on/off switch HDD access/ Power status/ LAN status LEDs 2x USB3.0 (Blue color) 2x USB2.0 2x Display Port (Can be converted to DVI-D or HDMI via active cables) 1x CFast socket 1x SIM card socket 2x Antenna holes

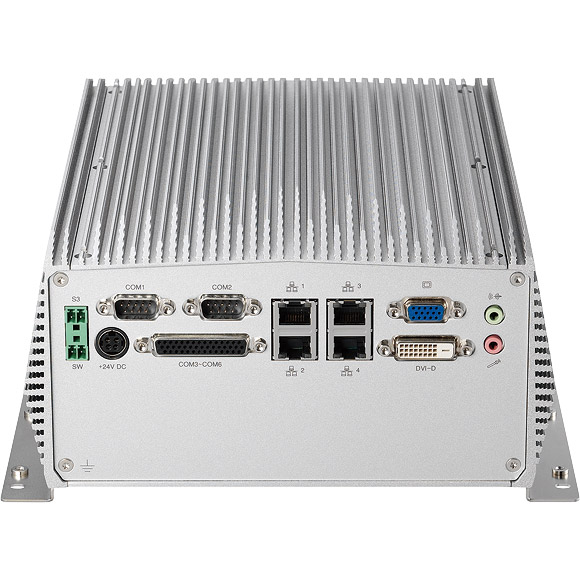

后置I/O界面2x DB9 for RS232/422/485 1x DB44 for 4x RS232 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE 1x DB15 VGA port 1x DVI-D 1x Line out and 1x Mic-in 2-pin Remote Power on/off switch +24VDC Input
存储设备2x 3.5” SATA HDD 1x CFast socket
扩展槽1x Mini-PCIe socket (support optional WiFi or 3.5G module)
电源需求ATX Power mode Support +24VDC Input Optional power adapter
尺寸215mm (W) x 272mm (D) x 114mm (H) without wall mount bracket (8.5" x 10.7" x 4.5")
构造Aluminum Chassis with fanless design Ventilation holes on panels for HDD cooling design
运行环境Operating temperature:
Ambient with air flow: -5°C ~ 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -30°C ~ 85°C Relative humidity: 95% at 40 degree C Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection
Random: 0.5Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
认证CE approval FCC Class A
OS Support ListsWindows XP 32bits and 64bits Windows 7 32bits and 64bits Windows 8.1 32 bits and 64 bits
