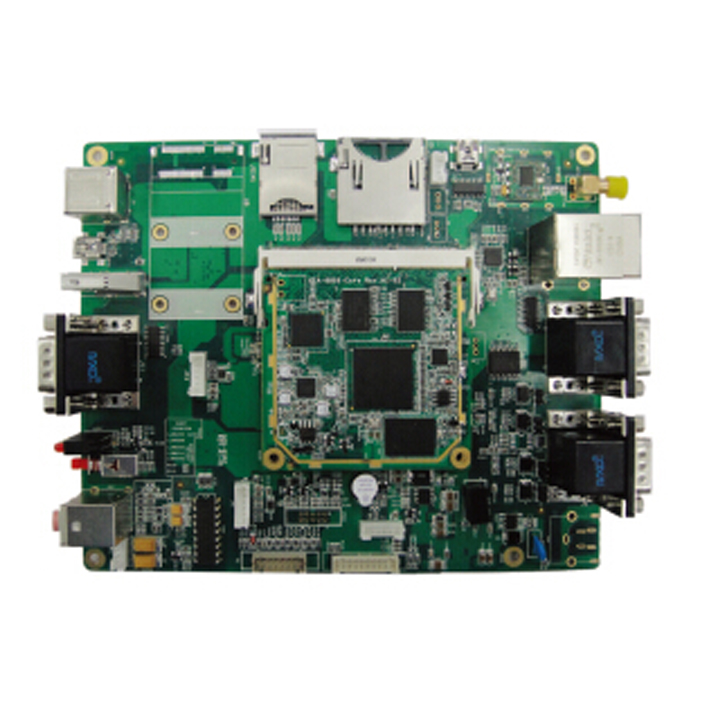

GEB-6503 底板

主要特点：

- GEA-6801 核心板配套底板

- HDMI / VGA / LVDS

- 支持LAN/WiFi/3G

- 7 串口，4-7USB 可选,1 个OTG

- 9 个GPIO

- 1 个SATA 2.0 接口

- 2 个100M 以太网口

产品型录

产品介绍
产品规格
档案下载

Main modules	Types
Core board slot	204PinCore board slot
LVDS	单通道 18/24bit
VGA	DB15
HDMI	HDMI 接口支持 1080p 含音效
Audio	ALC5616
UART	1
RS232	4
RS232/422/485	2
Debug port	1
USB	4-7 路USB2.0 可选
USB-OTG	1 路
Ethernet	2 路 100M ，板载PHY
WIFI	802.11b/g/n
MiniPCIE	1 MiniPCIE 插槽
SIM Card slot	1 路
GPIO	9 路
SD slot	1 路
Touch panel	I2C 触摸屏接口及4 线制电阻屏接口
LED Fpanel/ 快捷键	Power,GPIO,WIFI,WWAN
BEEP	YES
WDT
电源	12V DC_ in
工作温度	-10℃ ~ +65℃
工作湿度	小于95%（非凝结）
单板尺寸	180mm * 150mm * 40mm
