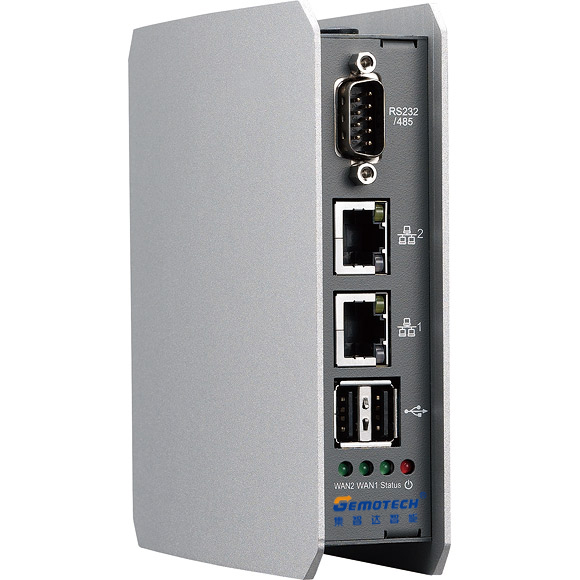

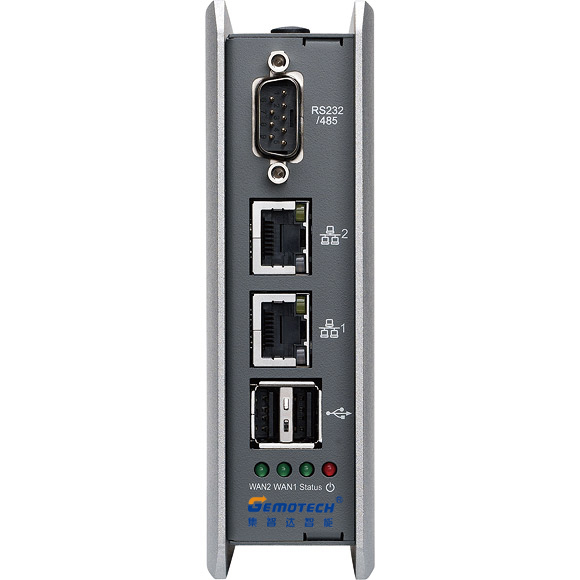

GIO-100

主要特点：

- 板载 Intel®Quark X1021 单核，400MHz 处理器

- Wind River® 或 Yocto (only for NIO100y) 操作系统和 McAfee® 安全软件解决方案

- 可选 Wi-Fi 或 Wireless 模块

- 2 x 10/100 以太网接口

- 1 x mPCIe 槽作为 Radio 模块 (only for NIO 100)

- 1 x mPCIe 槽作为 FBI 模块 (only forNIO 101)

- 2 x USB 2.0 type A

- 1 x RS232/485 可选

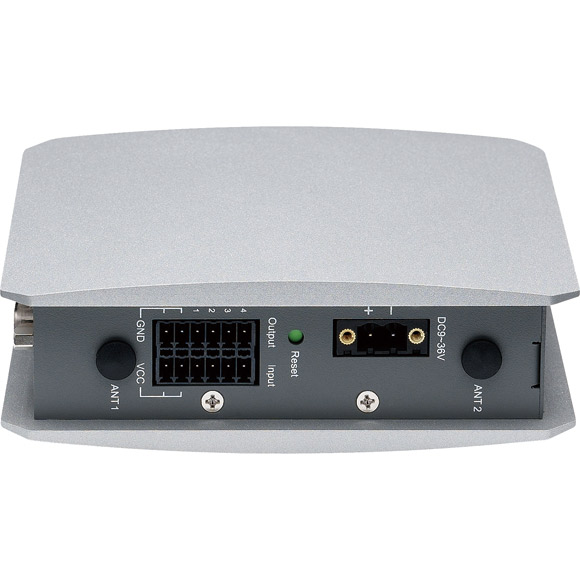

- DIO 4x4

- 支持 9~36V 宽压输入，phonix x 2 pin 接线端子

- 支持 -20 ~ 70°C 宽温

产品型录

产品介绍
产品规格
档案下载

GIO-100, 专为IoT（物联网）网关的云应用而设计，主要集中在工业领域，通过 RS232/485/DIO 收集传感器数据，和3G，WiFi或以太网的云数据传输。GIO-100 适用9 ~ 36V的范围直流输入的工业环境。

CPU	Onboard Intel® Quark SoC processor X1021 Single Core 400MHz
内存	DDR3 1GB EMMC 4GB
串口	1 x RS232/485 (software selectable )
DIO	4 x 4 DIO supports
USB	2 x USB 2.0 Type A
Ethernet	2 x 10/100 Base-TX MDI/MDIX Auto cross
Reset	1x reset button
扩展槽	1x mPCIe, half/short size One for Wi-Fi/3G module (Optional)
电源需求	DC 9~36V with 2 pins phonix terminal block Din-Rail(optional)/Wall mountable Dimension: 130 x 130 x 60mm Weight: 700g (w/o bracket)
SW特性	Moon Island Liunx 5.0.1 Macfee security Web GUI management Xcare client Modbus TCP
环境保护	Operating temperature: -20°C ~ 70°C Storage temperature: -30°C ~ 80°C Pole/Wall mount kit x1
机械构造	Wall Mounting Stand Rubber 110 x110 x 60mm -20 ~ 70 degree C
