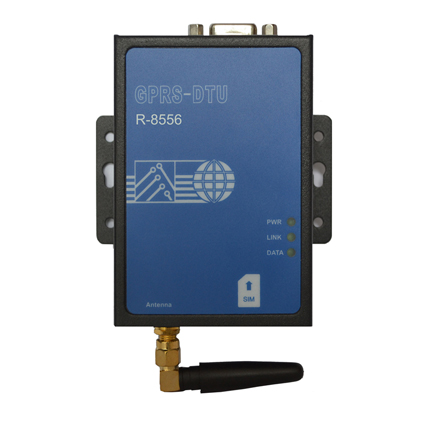

R-8556 GPRS DTU

主要特点：

- 标准：GSM/GPRS

- 频带：双频900MHz/1800MHz

- SIM卡参数:SIM Control: 1.8v and 3v

- 串口参数:RS-232/RS-485/RS-422

- 协议：TCP/IP, UDP

- 工作温度：-30 ℃到75 ℃

- 输入电压：5 to 24 VDC

- 平均工作电流：150至250mA@ 5v

产品型录

产品介绍
产品规格
档案下载

R-8556内置GPRS无线模块，提供标准RS232/485数据接口，可以方便的连接RTU、PLC、工控机等设备，仅需一次性完成初始化配置，用户设备就可以与数据中心通过GPRS无线网络建立连接，实现数据的全透明传输。

（本产品新旧包装混发）

技术规格	描述
GSM/GPRS通讯参数：	标准：GSM/GPRS
	频带：双频900MHz/1800MHz
	GPRS Multi-slot Class: Class 10
	GPRS Terminal Device Class: Class B
	GPRS Coding Schemes: CS1 to CS4
SIM卡参数:	SIM Control: 1.8v and 3v
串口参数:	RS-232/RS-485/RS-422
串口通讯参数:	波特率：300-115200
	数据位：5，6，7，8
	停止位：1，1.5，2（当校验位=None）
	校验位：NONE, EVEN, ODD, SPACE, Mark
串口管脚定义:	RS-232: TxD, RxD, GND
串口管脚定义:	RS-485: A+, B-, GND
支持的软件和协议:	协议：TCP/IP, UDP
支持的软件和协议:	提供Windows95/98/ME2000/XP/2003/VISTA/SERVER-2008/ NT环境下的配置软件和客户端动态链接库API。
外形尺寸及材料：	108x74x35mm （不包括天线和安装把手），外壳材料为铁。
重量：	220克
环境参数：	工作温度：-30 ℃ 到75 ℃
环境参数：	工作湿度：5 到95%RH
电源要求：	输入电压：5 to 24 VDC
	平均工作电流：150至250mA@ 5v
	工作电流：2A@+5V DC
	待机电流： 20mA@+5V DC

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2017/09/07	8556说明书			下载
