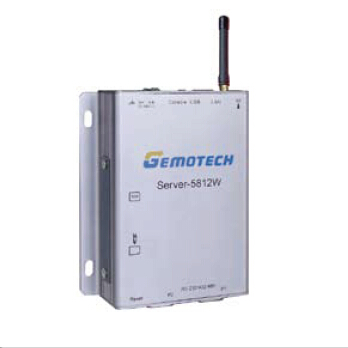

Server-5812W

无线智能通讯管理机

主要特点

- Linux
- Kernel版本：2.6.30
- Boot Loader：Uboot
- 协议栈：TCP，UDP，IPv4，SNMP V1/V3，ICMP，IGMP，
- ARP，HTTP，CHAP，PAP，SSH 1.0/ 2.0，SSL，DHCP，
NTP，NFS，SMTP，Telnet，FTP，PPP，PPPoE
- 文件系统：NFS,YSFFS2
- 系统工具：bash，busybox，telnet，ftp，
- 应用程序开发环境：
- Linux Tool Chain： Gcc，Glibc，GDB
- Windows Tool Chain： Gcc，Glibc，Insight (基于Windows的源代码调试工具)

产品型录

产品介绍
产品规格
档案下载

无线智能通讯管理机

系统
CPU	Atmel ARM9 32-bit RISC CPU，200MHz
DRAM	64 MB
Flash	256 MB
Console口	1个RS-232 (TxD，RxD，GND) 4-pin 输出
蜂窝式通信
蜂窝模块	GSM，GPRS
射频频段	850/900/1800/1900 MHz
GPRS等级	10
编码机制	CS1 ~ CS4
网络通信
LAN	1个10/100Mbps自动侦测网口，RJ45
保护	内建1.5KV电磁隔离保护
串口通信
串口	2个软件可选RS-232/422/485三合一串口，DB9 male
外扩存储器
SD卡	Usb存储器
连接器
保护	内建15KV ESD全信号保护
数据位	5，6，7，8
停止位	1，1.5，2
校验位	None，Even，Odd，Space，Mark
流量控制	RTS/CTS，XON/XOFF，RS-485 ADDC™
通信速率	50 bps ~ 921.6 Kbps，支持任意波特率
电源需求
电源输入	12 ~ 48 VDC
环境
工作温度	-20~60 °C 5 ~ 95% RH
存储温度	-20~80 °C (-4 ~ 176 °F)，5 ~ 95% RH
抗震性能	5G @ IEC-68-2-6，正弦波，5-500 Hz，1 Oct./ min，1 hr/axis.
抗冲击	50G @ IEC-68-2-27，半正弦波，30 ms
