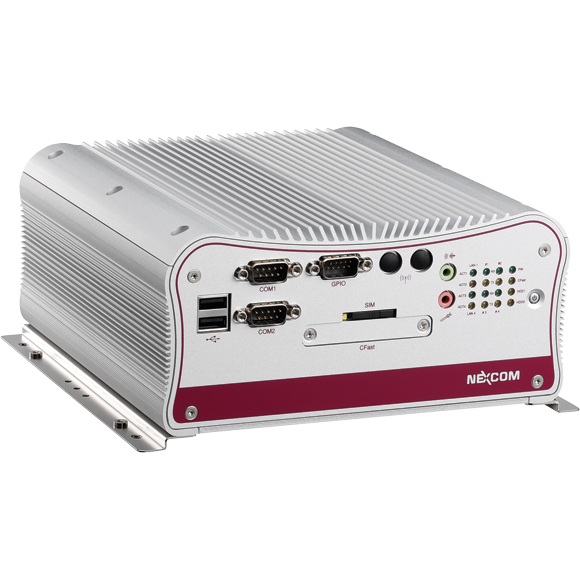

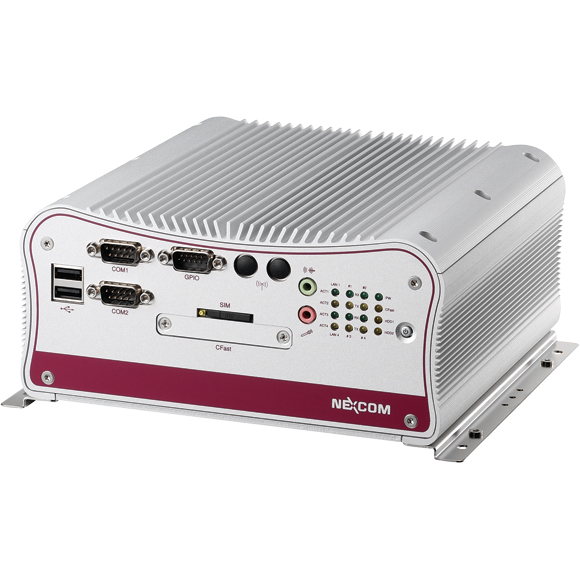

NISE 2310E

Intel® Atom™ 双核 D2550 1.86 GHz无风扇系统，4个LAN端口，4个COM端口和1个PCI/PCIe扩展

主要特点

板载Intel® Atom™ 双核D2550处理器，1.86 GHz
Intel® 82801JIR ICH10 RAID
1x DVI-I & 1x DVI-D显示输出
4x Intel® 82574IT GbE LAN端口;支持WoL, teaming和PXE功能
4x RS232/422/485
4x GPI & 4x GPO
6x USB2.0; 1x 外置的CFast插槽; 1x SIM卡槽
1x 内置的Mini-PCIe，带两个天线孔
支持+9V 到 36VDC输入; 支持ATX电源模式
1x PCI 或 PCIe扩展

产品型录

产品介绍
产品规格
档案下载

NISE 2310/2310E 基于Intel® Atom™ 双核 D2550处理器，是另一款用于工业自动化的无风扇工业计算机。支持宽温操作，可在严苛、恶劣的环境下运行。NISE 2310/2310E都遵循了NISE系列无风扇、线缆少的设计理念。在设计上，NISE 2310/2310E配置了4x LAN端口；支持WoL、LAN teaming和PXE功能。另外，NISE 2310/2310E还提供6x USB2.0，双独立显示和出色的图形处理性能，可满足多种应用需求，1个PCI或PCIe x1扩展可供选择。NISE 2310/2310E系列支持+9V 到 36V 宽压DC输入，大大提升了其在任何电源环境下的可靠性。

CPU	OnBoard Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cache Intel® 82801JIR ICH10 RAID
内存	2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G industrial-grade memory as the manufacture configuration for shipment
双独立显示选项	DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type) DVI-D + DVI-D

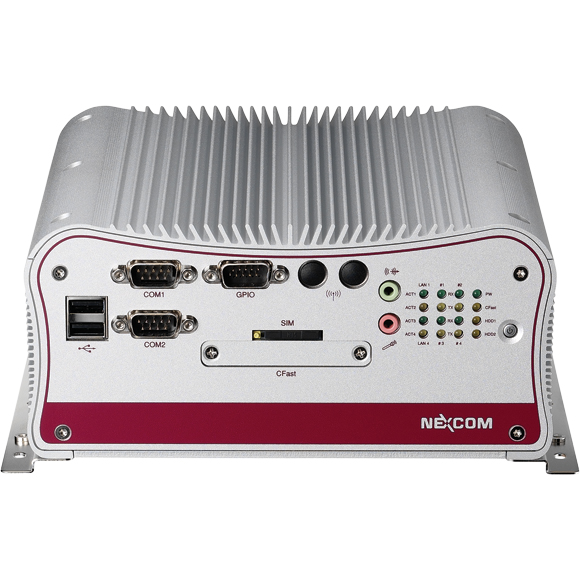

前置I/O界面	ATX Power on/off switch HDD access/ power status LEDs 2x DB9, RS232/422/485 w/ 2.5KV isolation protection 2x USB2.0 4x GPO & 4x GPI 1x Mic-in and 1x Line-out SIM card socket CFast socket 2x antenna holes

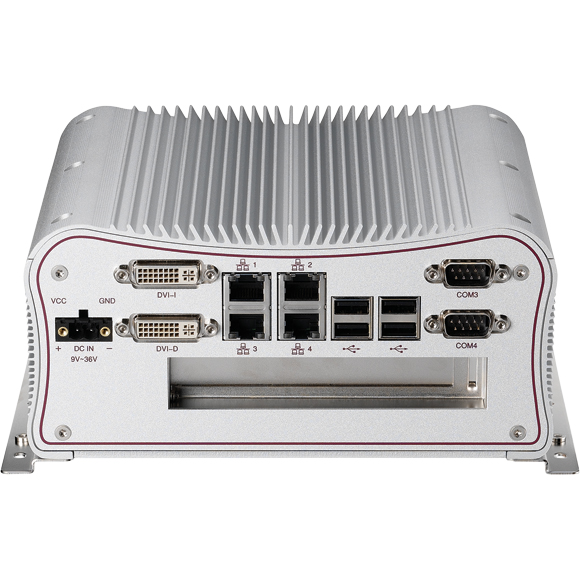

后置I/O界面	1x 2-pin DC input, Support +9 to 36VDC input 1x DVI-I 1x DVI-D 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE 4x USB2.0 2x DB9, RS232/422/485
设备	1x 2.5” SATA HDD driver bay 1x External CFast socket 1x External SIM card socket 1x internal Mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free)
扩展	NISE 2310: One PCI Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max. NISE 2310E: One PCIe x1 Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max.
电源需求	Support +9V to 36VDC input; Support ATX power mode
尺寸	195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)
构造	Aluminum Chassis with fanless design
运行环境	Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade device Storage temperature: -30°C to 85°C Relative humidity: 10% to 93% (Non-condensing) Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
认证	CE approval FCC Class A
OS Support List	Windows XP 32bits Windows 7 32bits WinCE 7.0
