GNS-1501

基于GNS-2501主板的网安无风扇平台

产品型录

产品介绍
产品规格
档案下载

基于GNS-2501主板的网安无风扇平台

产品概述:

GNS-1501是一款无风扇的 ARM 架构嵌入式安全网关平台，CPU 选用NXP Cortex A72 4核处理器，主频 1.8GHz，支持 8 路千兆以太网口。板载 16MB Nor Flash，4G Nand Flash,8G EMMC等；支持2 个 SATA2.0 接口的存储扩展及2个PCIex4扩展；嵌入式Linux 或者标准Ubuntu Linux 、凝思等操作系统；支持110/220VACDC 的交直流自适应双路供电方式，整机EMC4 设计，适用于变电站监测装置平台、通信网关、安全网关等应用。

主要特点:

◆ 基于NXP公司的LS1046A处理器，ARM Cortex-A72 64 位四核

◆ 支持8 路千兆以太网口，NAND Flash或Nor Flash，IRIG-B等

◆ 支持110/220VAC DC 的交，直流自适应双路供电方式

◆ 整机EMC4 设计

◆ 1U无风扇平台，适用复杂的工作环境

主板	GNS-2501
主板	NXP QorlQ LS1046A，Arm Cortex A72 4核1.8GHz
内存	1 x UDIMM DDR4 2133MHz，可支持16GB
LAN	8个千兆网口，RJ45连接器
LAN	支持PXE引导，支持10/100/1000MB传输速率

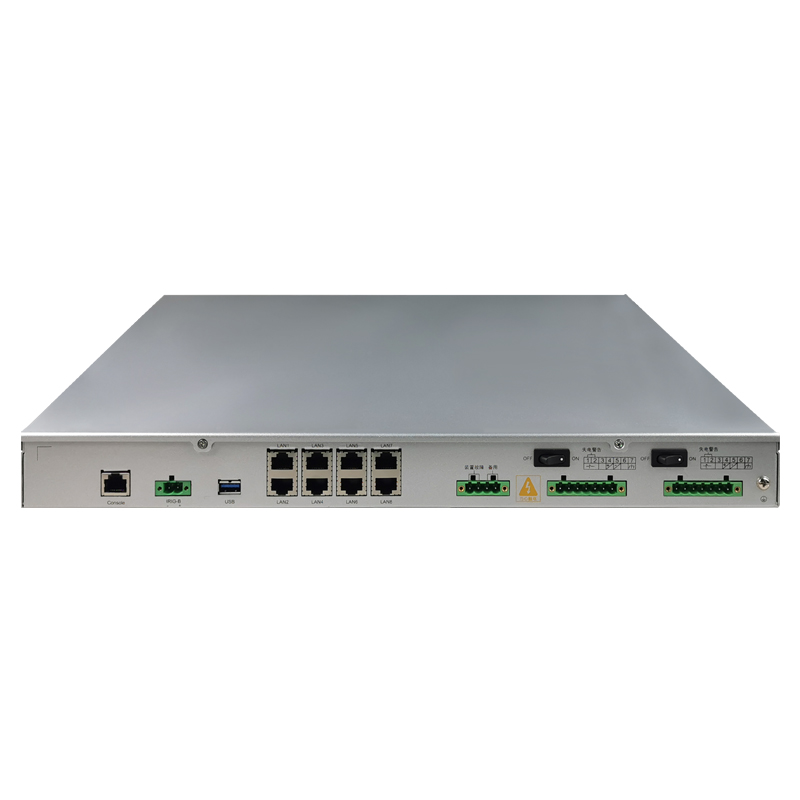

后面板I/O接口	1个RJ45串口
	1个IRIG-B接口，2Pin端子，RS-485差分电平输入，对时精度不大于 1ms，通过 SNTP 同步，对时精度不大于 100ms
	1个USB3.0接口
	2路D0接口，4PIN端子，继电器输出，常开型
	8个千兆RJ45网口
	2个电源开关，2个7PIN凤凰端子接口，1个接地螺钉

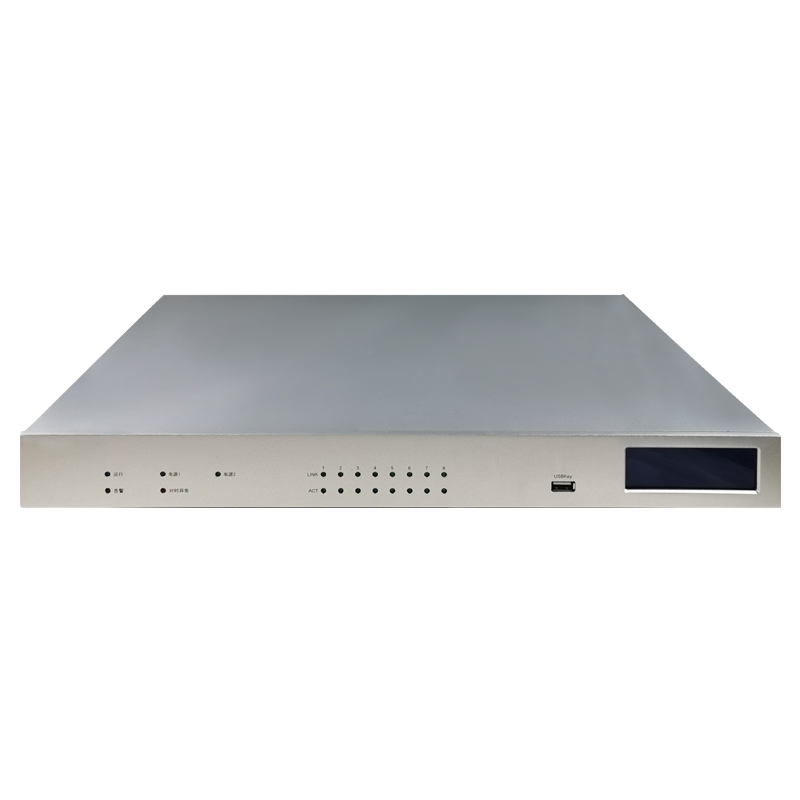

前面板I/O接口	1个运行灯，2个电源灯，1个告警灯，1个对时异常灯
	8个LINK网口指示灯和8个ACT网口指示灯
	1个USB3.0接口
	1个216×64分辩率的液晶屏
存储	64MB QSPI NOR FLASH，1GB NAND FLASH， 8GB EMMC
存储	2个SATA接口
电源	40W双电源，12V输入，单独开关控制，支持交直流电源输入
工作环境	工作温度：-20℃～60℃
	存储温度：-40℃~ 80℃
	工作湿度：5~95%，不凝结
	70kPa～106kPa
外观尺寸	440mm×340mm×44.5mm（长x宽x高）
重量	不大于8KG
