GNS-1302-WZ

基于飞腾FT-2000/4、D2000 8核，支持2种可信计算，7电4光的2U网闸整机

产品型录

产品介绍
产品规格
档案下载

基于飞腾FT-2000/4核或D2000 8核平台的2U网闸整机

产品概述：

搭载飞腾 FT-2000/4 核或 D2000 8 核平台，网安隔离产品，具有安全可信等特点。

平台内外网各集成 1 个千兆以太网管理口和 6 个千兆以太网电口及 4 个千兆以太网光口，3 组 Bypass，网卡芯片采用国产网迅芯片，进一步提高自主可控。2 通道 DDR4-2666 DIMM 插槽，可支持到 64GB 内存，3 个标准 SATA 3.0 接口，其中 1 个支持免拆卸 SSD，1 个 MSATA，1 个 PCIe 8x 内置扩展插槽可支持客户卡，1 个 M.2 接口可支持可信卡，1 个Pinheader 可支持 TPM2.0 卡，1 个 Mini PCIe，2 个内置 USB 3.0Pinheader，2 个 USB2.0，1 个 RJ45 CONSOLE 调试口，6 个 LED 指示灯，1 个内置串口，3 个 CAN 口，支持 Audio 等。

主要特点：

◆ 飞腾 4 核或 8 核 CPU，提供高IPC，支持硬件虚拟化

◆ 国产网迅芯片，提高产品国产化率

◆ 国产化 uEFI的固件架构，安全可控，集成安全可信解决方案

◆ 支持国产化操作系统

◆ 支持可信华泰可信卡及安全软件、大唐高鸿安全软件

◆ 2U 上架机型，可支持定制

名称	产品规格
处理器系统	FT-2000/4 4核，D2000 8核
内存	2条DIMM Socket支持DDR4-3200内存，可支持到64GB
扩展	2个USB 3.0，板内预留双排插针
	1个PCIe 8x的内置扩展插槽，可插客户卡
	1个M.2接口，可插可信华泰TPCM可信卡
	1个20 Pinheader，可插基于大唐高鸿软件的TCM1.0、TPM2.0卡
	1个Mini PCIe接口，可插4G/WIFI模块或Mini PCIe显卡
	1个Audio接口
	3个CAN接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能，1个RJ45千兆管理口
	板载4个SFP千兆光口
	网卡芯片：国产网迅网卡，支持10/100/1000MB
前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯
	1个RJ45串口
	2个USB2.0接口
	7个RJ45千兆网口，含1个管理口
	4个SFP千兆光口
	2个前置网络扩展卡接口

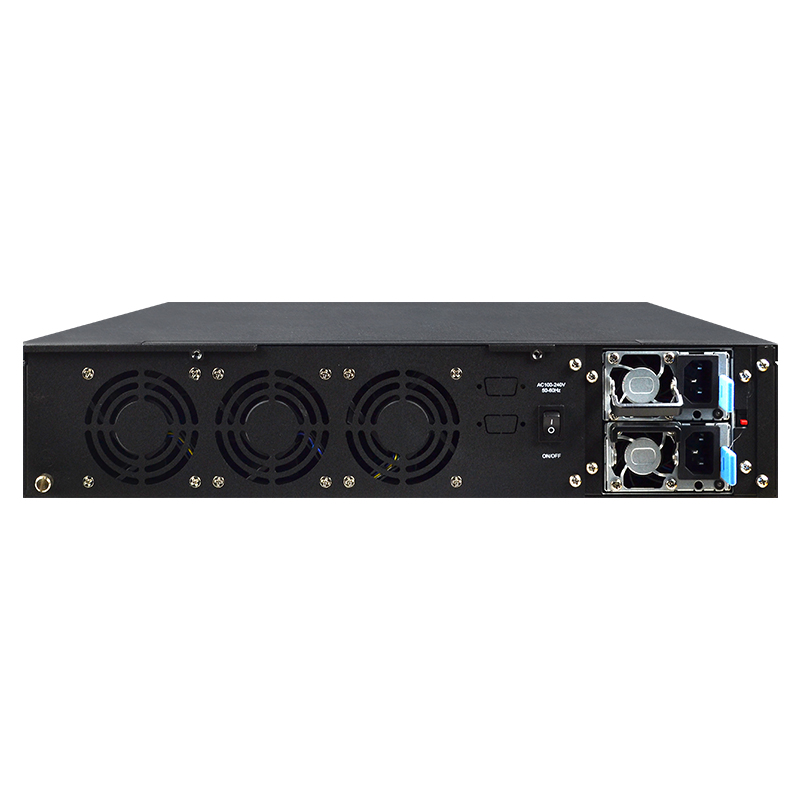

后面板I/O接口	1个电源开关按键
后面板I/O接口	1/2个外接电源输入接口
存储	1个mSATA接口
存储	3个SATA接口，支持2.5或3.5硬盘，1个接口可支持免工具拆卸
电源	支持单电，冗电
操作系统	麒麟、泰山国心、UOS、开源Linux
工作环境	工作温度 -10℃ ~ 45℃
	存储温度 -40℃ ~ 70℃
	0% ~ 90%相对湿度，无凝露
外观尺寸	560mm x 430mm x 44mm（长x宽x高）
