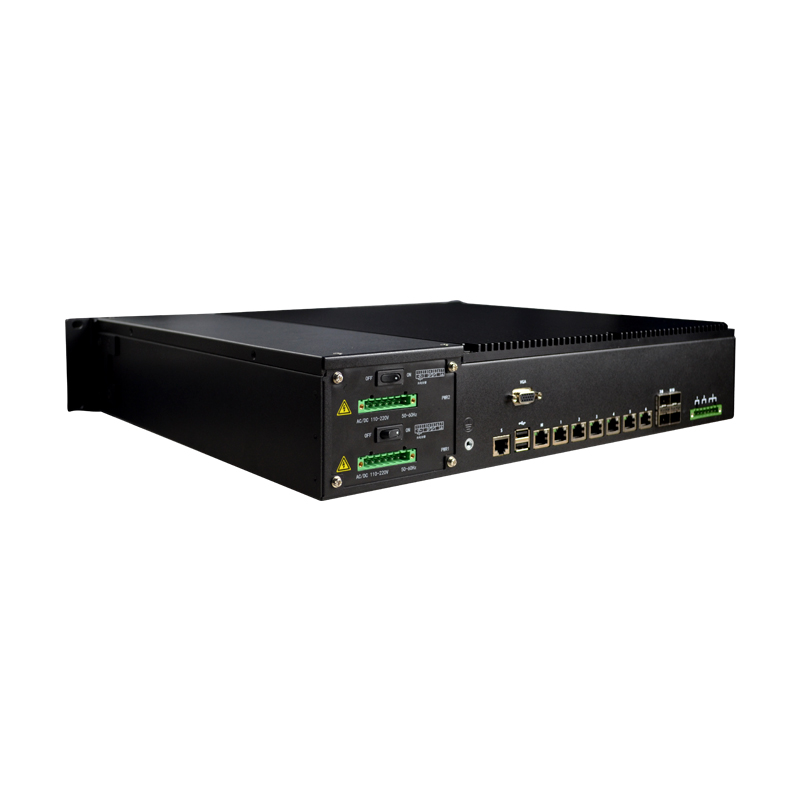

GNS-1302-DL

GNS-1302-DL是一款基于飞腾处理器的嵌入式网络安全平台。适用于应用加密、网闸隔离、防火墙、UTM、安全审计、网络流量管理、数据采集等诸多网络安全应用，具有低功耗，扩展总线丰富等特点。

产品型录

产品介绍
产品规格
档案下载

产品概述

GNS-1302-DL是一款基于飞腾处理器的嵌入式网络安全平台。适用于应用加密、网闸隔离、防火墙、UTM、安全审计、网络流量管理、数据采集等诸多国产化网络安全应用，具有低功耗，扩展总线丰富等特点。

产品特点

◆ 飞腾4核或8核CPU，提供高IPC，支持硬件虚拟化

◆ 国产网迅网卡芯片，提高国产化率

◆ 国产化uEFI的固件架构，安全可控，集成安全可信解决方案

◆ 支持国产化操作系统

◆ 支持可信华泰可信卡及安全软件、大唐高鸿安全软件，支持TPCM、TCM1.0、TPM2.0标准，支持主动度量，支持SM2/SM3/SM4等国密算法，满足等保2.0

处理器系统	FT-2000/4 ，D2000 8核
内存	2条DIMM Socket支持DDR4-3200内存，可支持到64GB
扩展	2个USB 3.0，板内预留双排插针
	1个PCIe 8x的内置扩展插槽，可插客户卡
	1个M.2接口，可插可信华泰TPCM可信卡
	1个20 Pinheader，可插基于大唐高鸿软件的TCM1.0、TPM2.0卡
	1个Mini PCIe接口，可插4G/WIFI模块或Mini PCIe显卡
	1个Audio接口
	3个CAN接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能，1个RJ45千兆管理口
	板载4个SFP千兆光口
	网卡芯片：国产网迅网卡，支持10/100/1000MB

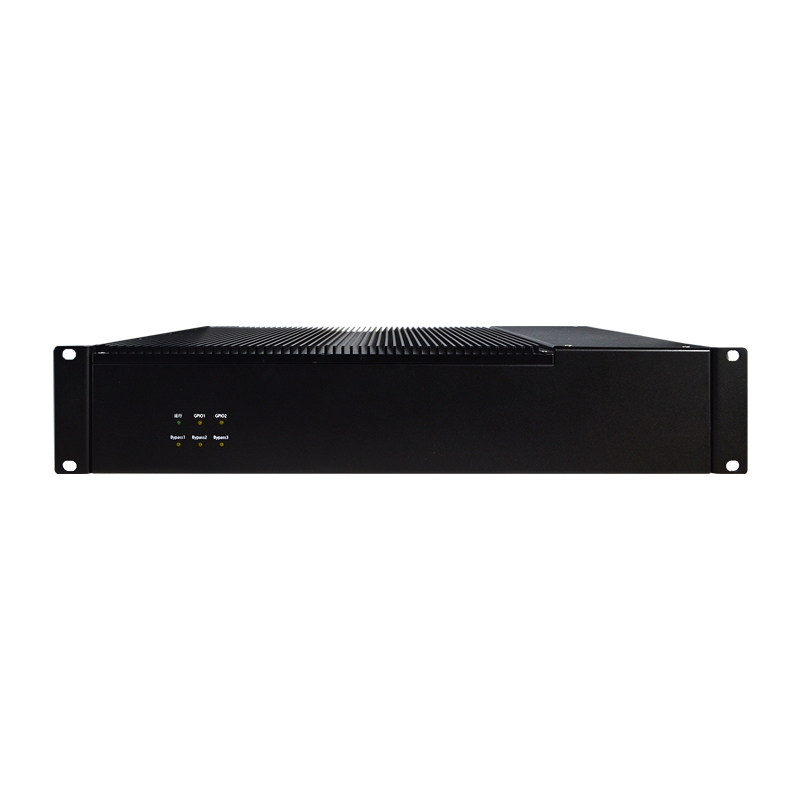

前面板I/O接口	运行灯/GPIO1灯/GPIO2灯/Bypass灯

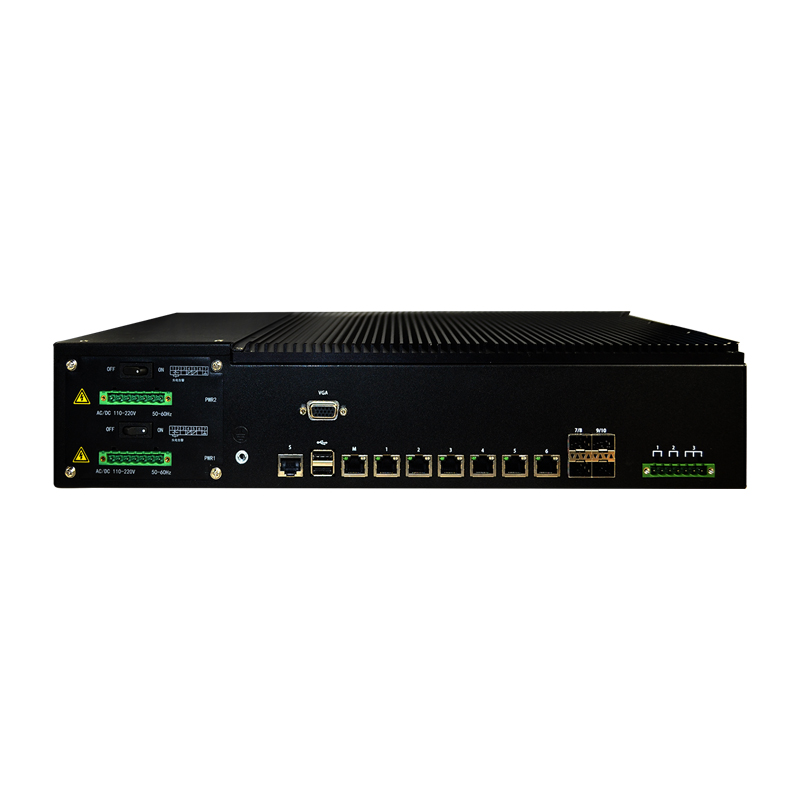

后面板I/O接口	1个RJ45串口
	2个USB2.0接口
	7个RJ45千兆网口，含1个管理口
	4个SFP千兆光口
	2个电源开关按键
	1个VGA
	2个RS232，1个RS485，凤凰端子接口
存储	1个mSATA接口
存储	3个SATA接口，支持2.5或3.5硬盘，1个接口可支持免工具拆卸
电源	支持冗电150W
操作系统	麒麟、凝思、UOS、开源Linux
工作环境	工作温度 0℃ ~ 40℃
	存储温度-40℃ ~ 70℃
	0% ~ 90%相对湿度，无凝露
外观尺寸	440mm x 435mm x 88mm（长x宽x高）
