GEA-8925

基于飞腾处理器的、可定制化的工控机

产品型录

产品介绍
产品规格
档案下载

基于飞腾处理器可定制化的工控机

产品概述:

飞腾的CPU从硬件层面增强了芯片的安全性，支持飞腾自主定义的处理器安全架构PSPA，满足更复杂应用场景下对性能和安全可信的需求。

整机集成了2个RJ45千兆以太网口，2条DDR4 DIMM插槽，可支持到64GB内存，3个标准SATA 3.0接口，1个MSATA，1个PCIe 16x、1个PCIe 8x、1个PCIe 4x内置扩展插槽可支持多种客户卡，板载VGA+DVI-D显卡接口，1个Pinheader可支持TPM2.0卡，1个Mini PCIe，8个USB 3.0，8个USB2.0，12个串口，3组CAN口，支持Audio等。

主要特点:

◆ FT-2000/4飞腾CPU，或支持D2000 8核飞腾CPU

◆ 支持可信华泰TPCM卡及安全软件，支持大唐高鸿安全软件

◆ 多PCIe接口，满足各种客户卡的搭配

◆ 多达12个串口，16个USB接口，可扩展多种外设

◆ 板载VGA+DVI-D显卡接口，适配不同的显示模示

◆ mATX主板，更好的机构兼容性

处理器系统	FT-2000/4核，或D2000 8核
内存	2条DIMM Socket支持DDR4 ECC/non ECC UDIMM内存，可支持到64GB

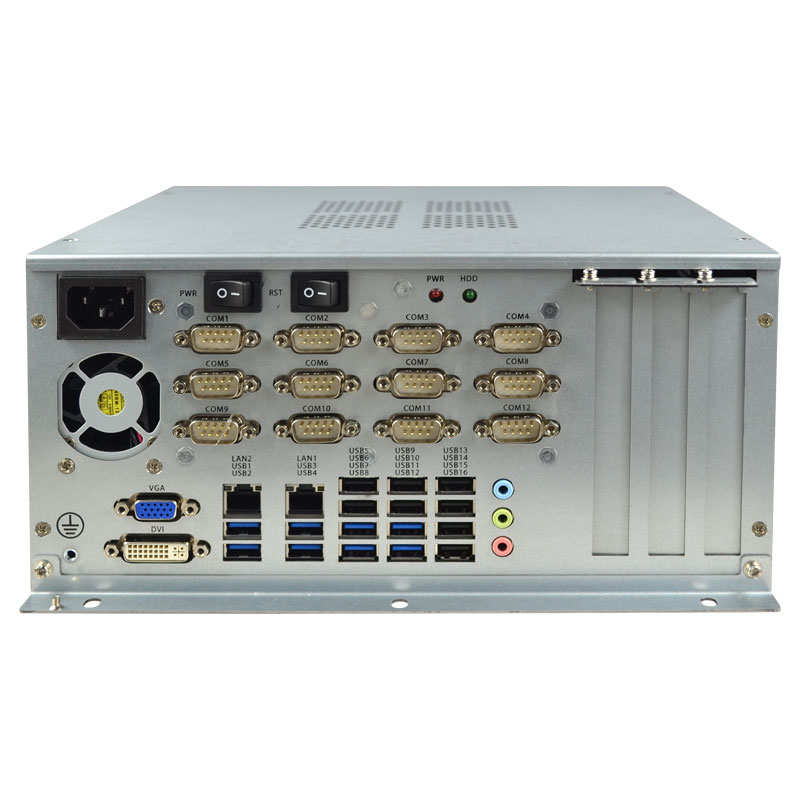

前面板I/O接口	PWR，HDD灯
	reset 按键
	EXT IO接口，连接整机开关键和Audio音频接口
	预留10个COM接口
	1个DVI-D接口和1个VGA接口
	2个RJ45千兆网卡接口
	8个USB3.0，8个USB2.0接口
	预留3个PCIe活动接口位置
后面板I/O接口	暂无，根椐客户需求定义
板载	1个PCIe 16x插槽，1个PCIe 8x插槽，1个PCIe 4x插槽，可插扩展卡
	1个Mini PCIe插槽，可插4G/WIFI模块或其它设备
	1个20 Pinheader，可插基于大唐高鸿软件的TPM2.0卡
	8个RS232 Pinheader内置接口
	3个CAN接口
	1个Audio接口
以太网口	板载2路RJ45千兆电口
存储	1个mSATA接口
存储	3个SATA接口，支持2.5或3.5硬盘
电源	支持外接24PIN电源接口
操作系统	麒麟、泰山国心、UOS、开源Linux
工作环境	工作温度：0℃ ~ 60℃
	存储温度：-40℃ ~ 70℃
	0% ~ 90%相对湿度，无凝露
外观尺寸	270mm x 290mm x 130mm（长x宽x高）
