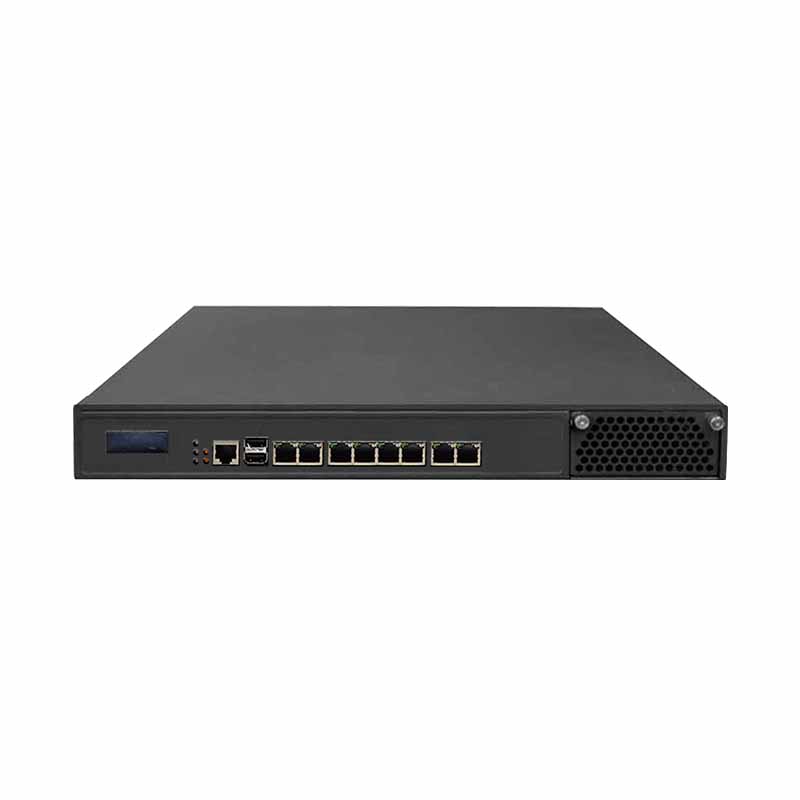

GNS-1330-11

基于腾珑E2000Q处理器，6电口2Combo口，低功耗网络安全平台

产品型录

产品介绍
产品规格
档案下载

基于腾珑E2000Q处理器，6电口2Combo口，低功耗网络安全平台

产品概述：

E2000Q集成2个FTC664和2个FTC310内核，兼容64位ARMV8指令集并支持ARM64和ARM32两种执行模式，支持单精度、双精度浮点运算指令和ASIMD处理指令，支持硬件虚拟化。

整机平台集成6千兆电口2 Combo，通过研发技术设计，可灵活配置成8电或6电2光，支持前置1扩或2扩，满足客户多网口的应用。

该产品可面向云终端、电力、轨道交通、网络设备和智能控制等行业领域和场景，满足复杂多样的产品应用需求，具备高安全、高可靠、低功耗等特点。

主要特点：

1. 集成2个FTC664和2个FTC310处理器核， 1.5GHz-2.0GHz

2. 1个SO-DIMM ECC/Non-ECC，DDR4 2400Mhz ，可支持到16GB容量

3. 板载6千兆电口2个Combo，1个或2个前置扩展插槽

4. 板载Wifi，可支持4G

5. 支持mini-PCIe，DP/VGA等功能

处理器系统	腾锐E2000Q标准版，4核，主频2.0GHz+1.5GHz,11W，25mmx25mm FCBGA
内存	1个SO-DIMM，ECC/Non-ECC,DDR4 2400，可支持到16GB容量
LAN	板载6个千兆电口(WX1860A4)，2个Combo 电口支持2组BYPASS 2个板载SGMII可分别扩展4光/4电 1个或2个前置扩展可支持多种扩展网卡
I/O 前面板接口	支持2 x 16 个字符LCD 模块 PWR 电源状态/HDD 状态/GPIO 2组BYPASS指示灯 2 个USB 2.0 接口 1 个RJ45 类型串口
扩展接口	1个或2个前置扩展网卡接口内置2个mnin-PCIe接口
I/O 后面板接口	1 个电源按钮开关 1/2 个外接电源输入接口支持1 个DP/VGA 接口
存储单元	1个mSATA接口(与mini-PCIe二选一) 1个SATA3.0接口
电源输入	1U单电、冗电、双电 2U冗电 ATX 24Pin/4Pin/电源适配器等供电方案
环境	工作温度 : 0℃~ 40℃ 储存温度 : -20℃~ 75℃ 相对湿度 : 10%~90%( 无凝结) 支持1U/2U
