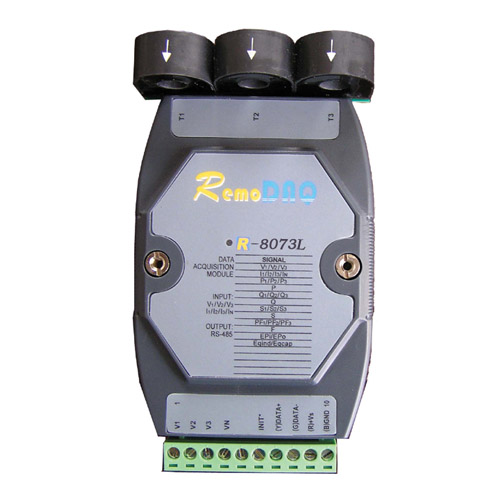

R-8073L

三相智能交流电量采集模块

主要特点

本产品内部集成了微型控制电脑芯片、数字信号处理芯片、标准的通信接口，兼容RS-485或RS-232接口，可以完成测量、校准、设定、遥测、遥调等功能。

由于体积小、功能多、精度高，可以用在多种交流用电场合下的测量、计量以及远程集中抄表、监控管理。性能优异、价格低廉，可有效的降低用户使用成本。

产品型录

产品介绍
产品规格
档案下载

三相智能交流电量采集模块

规格	R-8073S
被测路数	三相电流电压
测量内容	电流、电压的真有效值，有用功率，有功电度
电压量程	10～500V，可通过外加电压互感器及设定电压变比测量较高电压
电流量程	基本量程0～5A，可通过外加电流互感器测量较大电流，可设电流变比
通信接口	RS-485
通讯协议	ASCII命令集及MODBUS\ASCII协议
采样速率	交流采样，4KHz/通道
通讯速率	300/600/1200/2400/4800/9600BPS
精度等级	电流、电压0.2级，其他0.5级
供电电源	10～30VDC
功耗	1.5W

订货信息：

R-8073L/5：三相智能交流电量采集模块，0~5A输入

R-8073L/20：三相智能交流电量采集模块，0~20A输入

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8073L			下载
