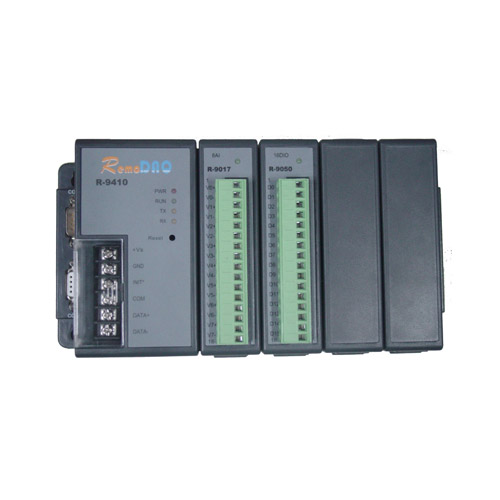

RemoDAQ-9410/9810

RS-485(4或8槽) 分布式数据采集控制系统

主要特点

- 易于安装及组网的RS-485通讯
- 每个系统带4个或8个插槽，最多可支持128个I/O点
- 支持Modbus/RTU协议，易于同通用HMI/SCADA软件相连　　
- 带浪涌保护，避免系统受到危险电压及电源突波的破坏
- 可利用R-8510中继器模块进行网络扩展，一个系统最多可带256个
RemoDAQ-9000单元，最远传输距离达10公里

产品型录

产品介绍
产品规格
档案下载

RS-485(4或8槽) 分布式数据采集控制系统

RemoDAQ-9410和RemoDAQ-9810系统使用EIA RS-485通讯议。这种协议是在工业领域被广泛采用的差分、双向传输线标准。RS-485具有传输距离远、传输速率高的特点，非常适合于工业应用。
　
规格：
处理器

CPU	16位微处理器
I/O模块容量	4或8块
看门狗定时器	有
功耗	1.0W (R-9410) 4.0W (R-9810)

隔离保护

通讯隔离

2500 VDC(R-9410)

3000 VDC(R-9810)

隔离保护

通讯电源3000 VDC

I/O模块隔离

3000 VDC

诊断

状态显示	电源、CPU、通讯
自检	开机时自检
软件诊断	有

通讯

网络	RS-232或RS-485(2线)到主机
速率(bps)	1200、 2400、 4800、 9600、 19.2K、 38.4K、57.6K和115.2Kbps
最大通讯距离	4000 英尺(1.2 公里)
命令格式	ASCll 命令／响应协议，Modbus/RTU协议
可靠性检查	带有校验核的通讯错误检查
异步通讯数据格式	1位起始位、8位数据位、1位停止位、无校验
最多节点数	每个主机串口最多可连接 256 个多站系统
保护	RS-485 通信线上的浪涌保护

电源要求

未调理	+1O～+30 VDC
电源反向保护
电源保护	抑制电源输入瞬变

机械特性

外壳	KJW 塑料，带安装配件
插入式螺丝端子块	导线线径0.5mm²到2.5 mm²，1-#12或2-#14到#22 AWG

环境

工作温度	-20～70℃
储存温度	-25～85℃
湿度	5～95％，无凝结

订货信息
- RemoDAQ-9410 RS-485(4槽) 分布式数据采集控制系统
- RemoDAQ-9810 RS-485(8槽) 分布式数据采集控制系统
