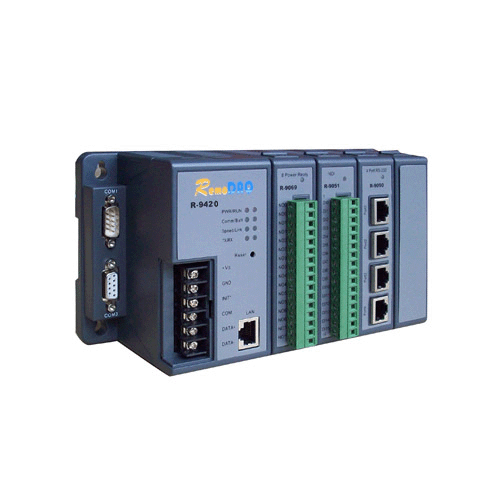

RemoDAQ-9420/9820以太网(4槽)分布式数据采集控制系统

主要特点：

- ARM 32 位RISC CPU
- 10/100 Base-T自动侦测通讯端口
- 支持Modbus/TCP通讯协议，易于整合
- 支持UDP事件处理功能
- 在没有中继器的情况下可以达到100米的通讯距离
- 允许通过以太网远程进行配置
- Modbus/RTU至Modbus/TCP网关功能
- 允许8台主机同时访问
- RemoDAQ-9420 4个I/O插槽可支持64点的数据监控
- RemoDAQ-9820 8个I/O插槽可支持128点的数据监控
- 1500 VDC 以太网通讯隔离
- 内置用于系统自动复位的看门狗定时器
- Windows 工具：I/O模块配置及校准，网络自动搜索数据流设置，当前状态监视和报警触发

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-9420/9820是一种基于以太网的I/O系统。在不使用中继器的情况下，RemoDAQ-9420/9820的通讯距离可以达到100米。这样您就可以通过以太网进行配置并且允许8台PC同时访问数据。

CPU	32位RISC CPU
内存	4MB RAM；512KB Flash ROM
操作系统	实时OS
I/O能力	RemoDAQ-9420/9820 4/8个插槽
状态指示	电源(3.3V，5V)、CPU、通讯（Link，Active，10/100Mbps，TX，RX）
CPU功耗	5.0W
复位按钮	有

隔离保护

以太网通讯	1500 VDC
I/O模块	3000 VDC
通讯电源	3000 VDC

诊断

上电自检

硬件和软件

以太网

接口	10/100Base T
接线	UTP，5类
总线连接	RJ45模块插孔
通讯协议	Modbus/TCP，TCP，UDP，IP，ARP
数据传输速率	100Mbps
通讯距离	无中继器时100米
响应时间	<5毫秒

机械特性

外壳	ABS塑料，带安装配件
插入式螺丝	导线线径0.5mm²到2.5mm²、1-#12 2-#14到#22AWG
端子块

串行网络

接口	RS-485
通讯协议	Modubs/RTU
节点数	32个节点
波特率	115.2Kbps

电源要求

未调理	10～30VDC
保护	过压保护和电源反向保护

软件支持

Windows工具

网络设置、I/O配置及标准、数据流、报警设置

环境

工作温度	-20～70℃
储存温度	-25～85℃
湿度	5～95 ％，无凝结

订货信息

- RemoDAQ-9420 以太网(4槽)分布式数据采集控制系统

- RemoDAQ-9820 以太网(8槽)分布式数据采集控制系统
