PCI-5141/5121

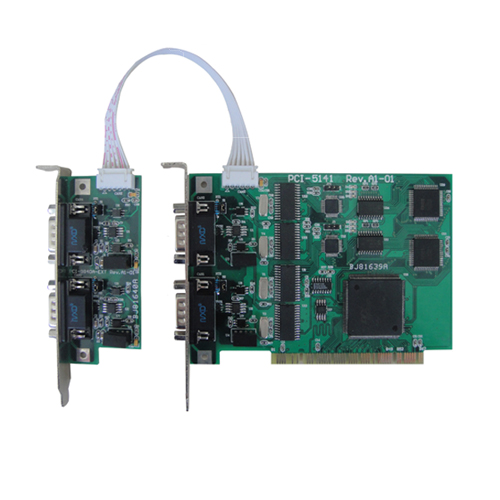

PCI-5141 智能型4口CAN接口卡
PCI-5121 智能型双口CAN接口卡

主要特点

集智达公司PCI-5141/5121智能CAN接口卡是具有PCI接口的CAN总线通讯适配卡,它使PC机方便地连接到CAN总线上，实现CAN2.0B协议的数据通讯。

PCI-5141/5121智能CAN接口卡采用PCI接口，实现与主机PC的高速数据交换。PCI-5141智能CAN接口卡集成4(PCI-5141) / 2 (PCI-5121)个电气独立的CAN接口通道，使得在开发应用中更显方便和灵活；每个通道光电隔离，保护计算机避免地环流的损坏，增强系统在恶劣环境中使用的可靠性；内置120 欧姆终端电阻，可通过跳线选择；接口卡采用四层电路板，全部SMT工艺，保证长期工作的可靠性。

产品型录

产品介绍
产品规格
档案下载

集智达公司PCI-5141/5121智能CAN接口卡是具有PCI接口的CAN总线通讯适配卡,它使PC机方便地连接到CAN总线上，实现CAN2.0B协议的数据通讯。

PC接口：32位33M PCI数据总线，PCI 2.1兼容；

板载数据存储器：2*8KB Dual Port RAM；

CAN控制器：NXP SJA1000T；

CAN收发器：NXP PCA82C251；

数据传送速率： CAN通讯速率可编程，范围在5Kbps~1Mbps之间；

CAN通讯接口： DB9针型插座；

CAN协议： CAN 2.0B规范（PeliCAN）；

光电隔离耐压： 2500VDC；

物理尺寸 135.6mm * 95.6mm

运行环境： Win98、Win2000/XP等操作系统；

操作温度：0°C ~ +70°C

存储温度：-20°C ~ +80°C

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
