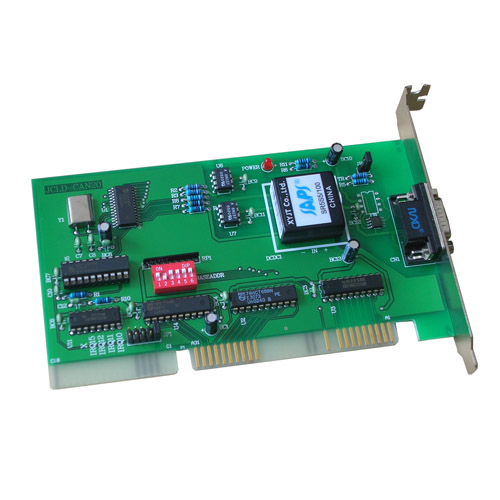

ISA-CAN20/ISA-CAN20X2

ISA-CAN20 单口非智能隔离型ISA总线CAN BUS接口卡
ISA-CAN20X2 双口非智能隔离型ISA总线CAN BUS接口卡

主要特点

·CAN网络通讯速率 1Mbit/s
·CAN网络接口控制器 Philips SJA1000T
·CAN网络收发器 Philips 82C251
·CAN网络连接器 DB9,针式
·隔离电压 1000V DC
·DOS驱动程序 Windows95/98/NT/2000/XP
·可选中断 I/O地址
·外形尺寸 160mm×89mm
·工作温度 0～60℃
·工作湿度 5%～95%
·功耗 +5V@200mA

产品型录

产品介绍
产品规格
档案下载

ISA-CAN20/ISA-CAN20X2是ISA总线非智能隔离型单路/双路CAN接口卡,CAN在于它的实时性,由于它采用仲裁方式进行网络分配,因此可以限度的保证系统对紧急事件的响应。CAN另外一个是具有可靠性,它有五种方法判断和纠正数据在传输中可能发生的错误。所以CAN可以应用在对可靠性要求较高的系统中。

规格
·CAN网络通讯速率 1Mbit/s
·CAN网络接口控制器 Philips SJA1000T
·CAN网络收发器 Philips 82C251
·CAN网络连接器 DB9,针式
·隔离电压 1000V DC
·DOS驱动程序 Windows95/98/NT/2000/XP
·可选中断 I/O地址
·外形尺寸 160mm×89mm
·工作温度 0～60℃
·工作湿度 5%～95%
·功耗 +5V@200mA

订货信息
·ISA-CAN20 单口非智能隔离型CAN总线接口卡
·ISA-CAN20X2 双口非智能隔离型CAN总线接口卡
