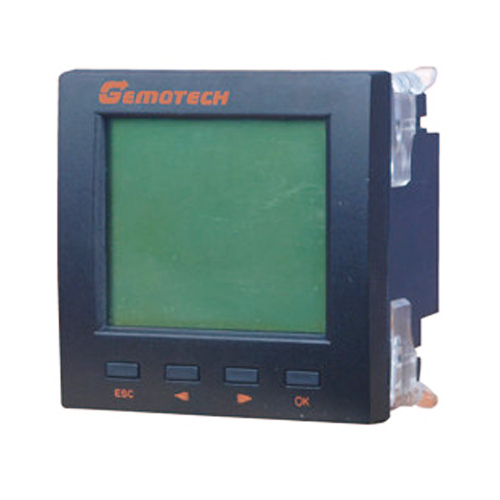

R-8076B

三相电力监测仪表

主要特点

R-8076B 系列电力监测仪表用于电网、自动化控制系统，
　　采用交流采样技术真有效值测量，主要测量三相电压，具有
　　2 路遥信量采集功能、1 路4~20mA 模拟量输出功能（选配），
　　本系列仪表可与上位机数字通讯，强抗干扰RS485 通讯接
　　口，支持标准Modbus-RTU 通讯协议(Profibus-Dp 选配），
　　共同构成智能配电系统。
　　注意：“●”表示支持该功能，“－”表示不支持该功能。
　　1. 测量三相相电压、三相线电压；
　　2. 高清晰LCD 显示；
　　3. 2 路开关量输入，1 路4~20mA 模拟量输出（选配），可
　　以任意关联所测量的电参量；
　　4. RS485 通信接口，标准Modbus-RTU(Profibus-Dp 选配）。

产品型录

产品介绍
产品规格
档案下载

　　产品简介
　　R-8076B 系列电力监测仪表用于电网、自动化控制系统，
　　采用交流采样技术真有效值测量，主要测量三相电压，具有
　　2 路遥信量采集功能、1 路4~20mA 模拟量输出功能（选配），
　　本系列仪表可与上位机数字通讯，强抗干扰RS485 通讯接
　　口，支持标准Modbus-RTU 通讯协议(Profibus-Dp 选配），
　　共同构成智能配电系统。

技术参数

项目		参数
网络		三相三线（3P3L) 三相四线（3P4L) 可配置
电流	额定值	AC 400V( 或AC 100V)（订货时请注明）
	过负荷	测量：1.2 倍，瞬时：2 倍/1s
	功耗	<1VA( 每相）
	阻抗	>400kΩ
	精度	RMS 测量，精度等级±0.5%
显示		显示LCD 显示
开关量输入	输入数量	2DI
	输入形式	光耦隔离，无源空接点输入
	隔离电压	2500Vrms
模拟量输出（选配）	输出数量	1 路
	输出方式	4~20mA, 精度：±0.5%
	带载能力	≤ 500Ω
外形重量	尺寸	96mm96mm85mm( 长* 宽* 深）
外形重量	重量	0.3kg

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/10	用户手册R-8076B			下载
