GEA-8501-UF

主要特点：

- 操作系统Android 4.2.2

- CPURK3188 A9 4核1.4G

- 内存1G

- 存储4G EMMC

- 串口RS-232*6（其中2个RS-232/RS-422/RS-485可复用）

- 以太网口1*RJ45,10/100LAN

产品型录

产品介绍
产品规格
档案下载

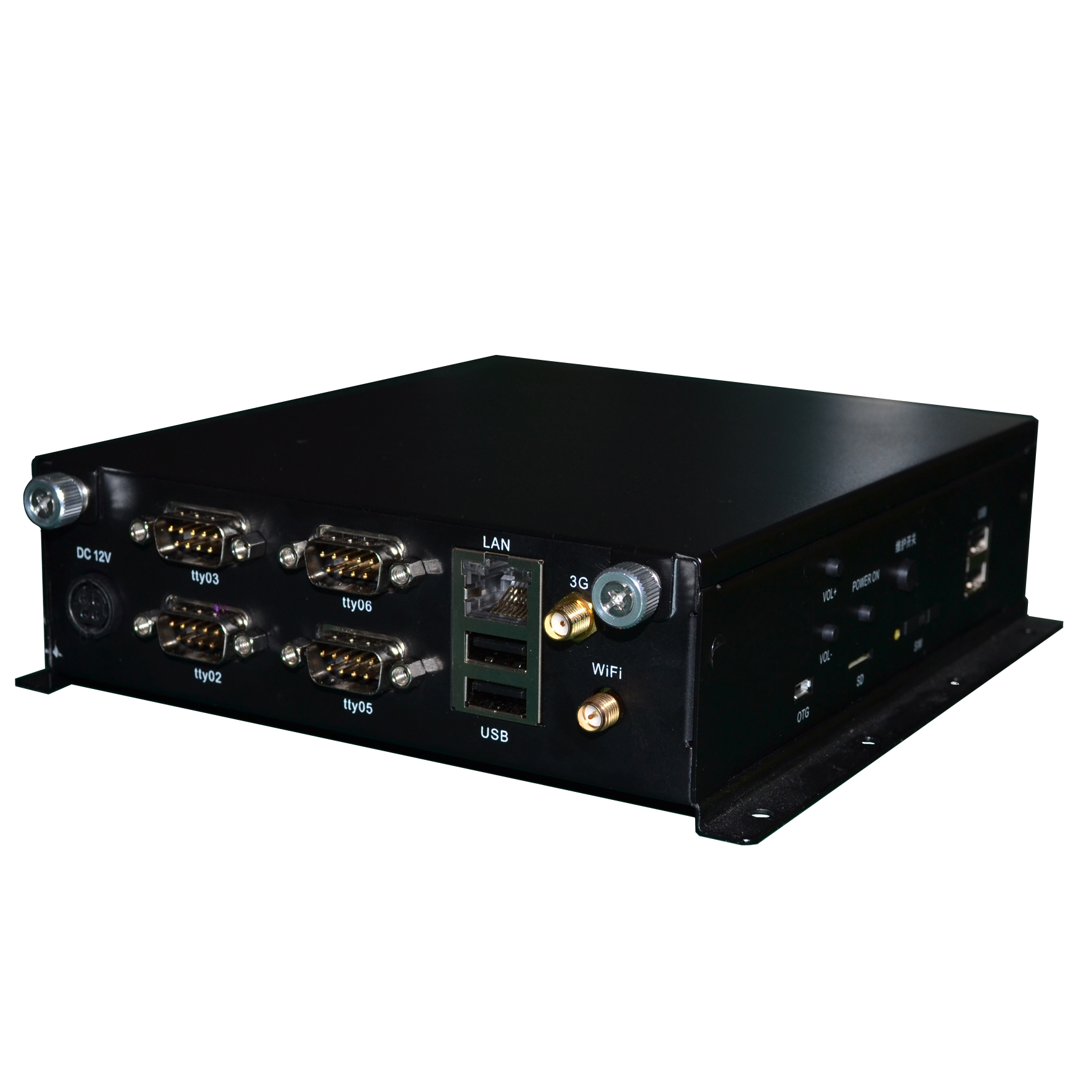

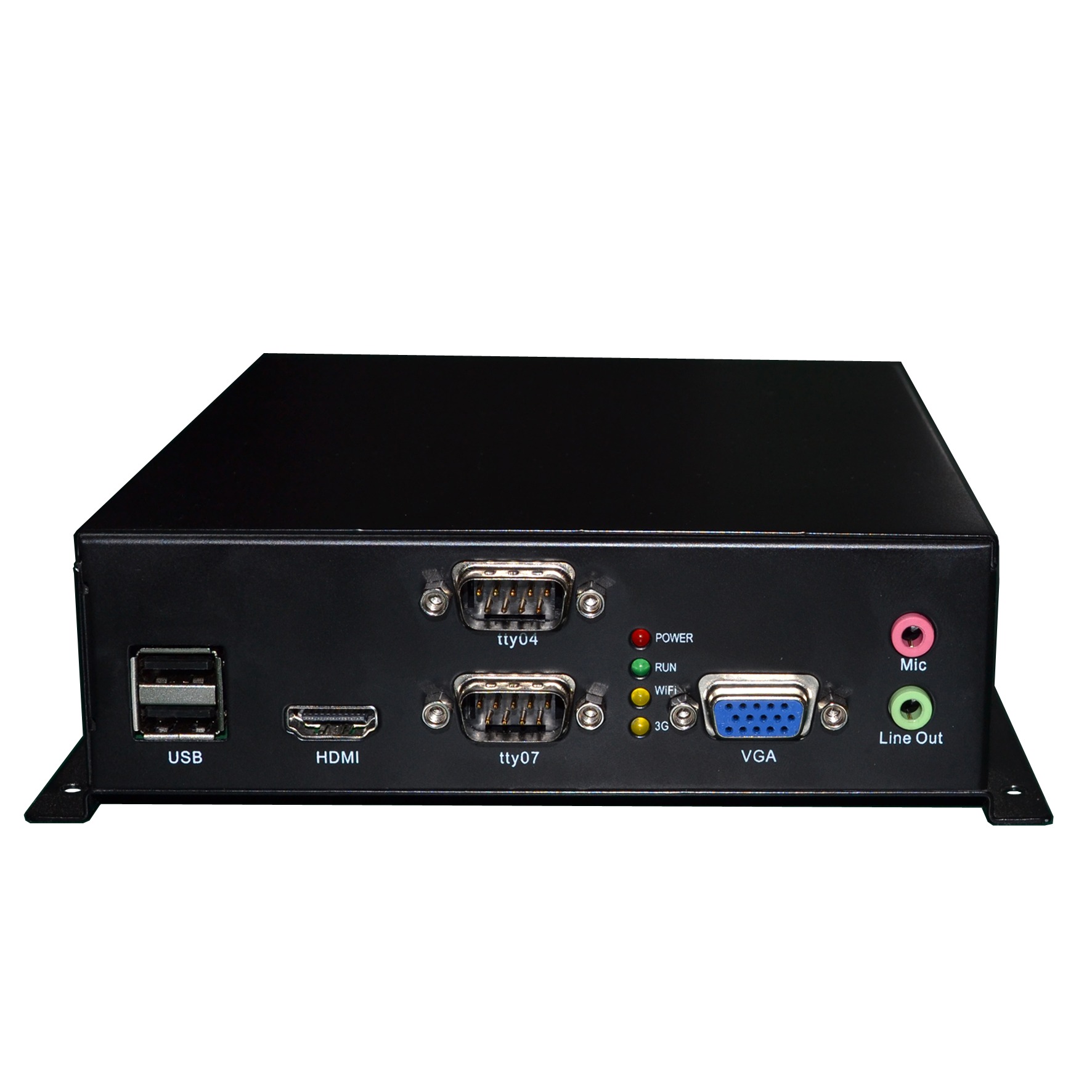

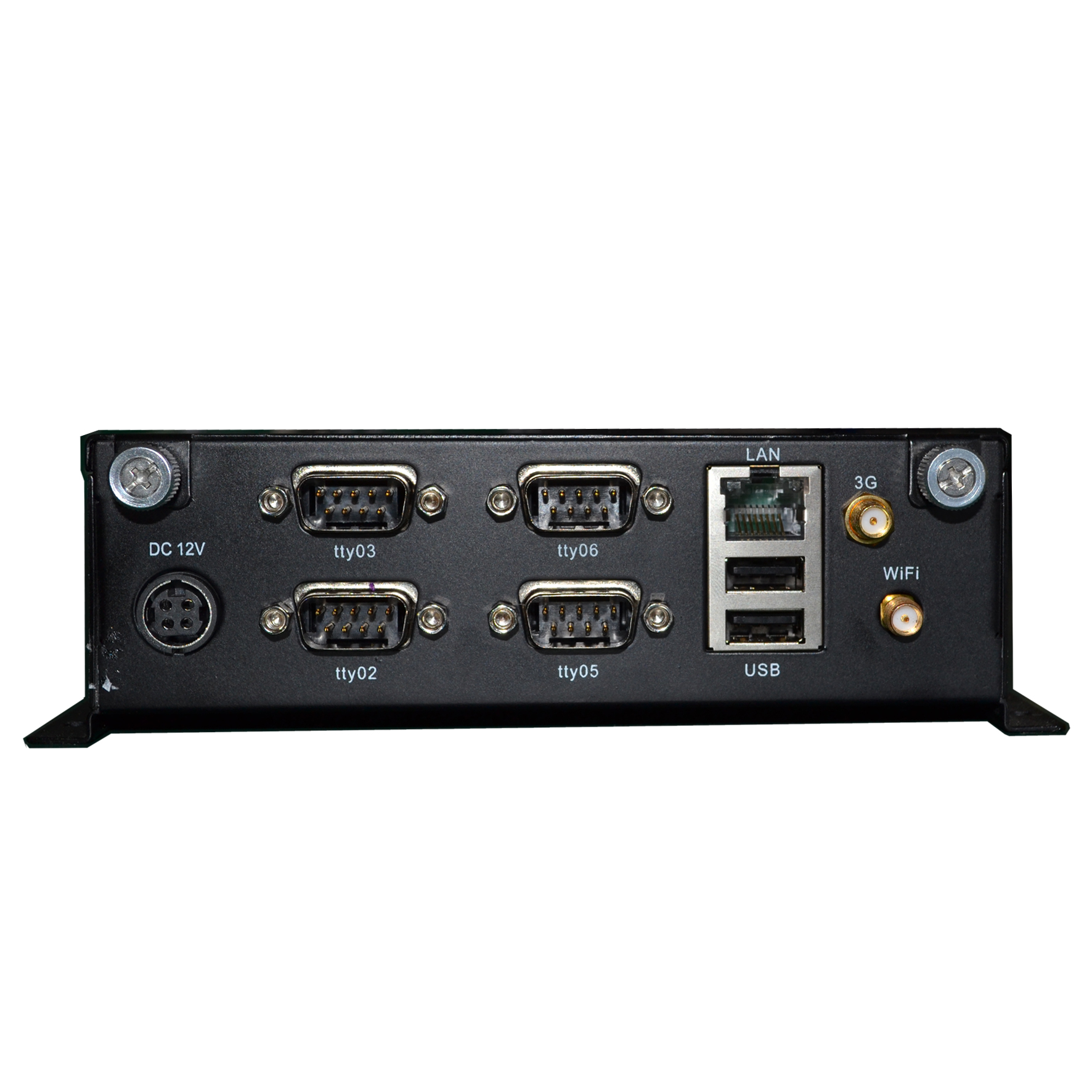

GEA-8501-UF工控机

操作系统	Android 4.2.2
CPU	RK3188 A9 4核1.4G
内存	1G内存
存储	4G EMMC
串口	RS-232*6（其中2个RS-232/RS-422/RS-485可复用）
以太网口	1*RJ45,10/100LAN
显示	1HDMI，支持分辨率1024768@60HZ、1366768@60HZ、1080P、720P等 1VGA，支持分辨率1024768@60HZ、1366768@60HZ、1080P、720P等
3G	支持移动、联通、电信3G网络，可共享
4G	支持移动、联通、电信4G网络，可共享
SIM卡槽	可插拔，抽屉式
WIFI	IEEE802.11b/g/n、支持热点功能
音频	标准LINE OUT、MIC接口
OTG	Micro USB 接头，支持Android网络共享功能
USB	6*USB2.0，兼容USB1.1，支持USB 声卡和MIC，每接口支持500mA电流
SD卡槽	可插拔，Micro SD（TF）卡
Debug	Debug内置插针
GPIO	8路输入输出
硬件看门狗	支持
上电自启	支持
定时开关机	支持
电源	DC 12V供电，具备过压过流保护，
工作温度	-20℃—55℃
外观尺寸	179mm172mm50mm
设计寿命	5-7年

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
