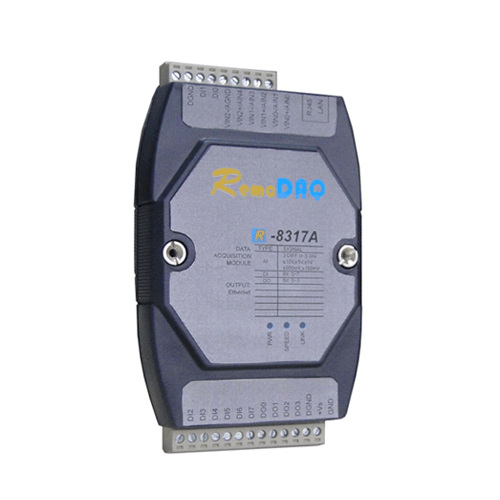

R-8317A

3路差分或5路单端AI、8路隔离DI、4路DO模块

主要特点

- 基于工业以太网的数据采集模块:

- 模拟量输入：5路单端或3路差分

- 开关量输入：8路

- 开关量输出：4路OC门

产品型录

产品介绍
产品规格
档案下载

3路差分或5路单端AI、8路隔离DI、4路DO模块

模拟量输入
有效分辨率：16位
通道：5路单端或3路差分
输入类型：mV，V，mA
输入范围：±150mV，±500mV，±5V，±10V，0-20mA，4-20 mA
隔离电压：2000VDC
故障和过压保护：承受电压± 35V
采样速率：10采样点/秒
输入阻抗：20MΩ
带宽：13.1Hz@50Hz
15.72Hz@60Hz
精度：±0.1%
零漂移：±6μV/℃
满量程漂移：±25ppm/℃
CMR@50/60Hz 92db

数字量输出
通道：4，集电极开路30V，100mA负载
光隔离：2000 V RMS

数字量输入
通道：8路
干接点：
逻辑电平0 ：接地
逻辑电平 1 ：开路
湿接点：
逻辑电平 0：＋3V
逻辑电平 1：＋10V到30V
光隔离 2000 V RMS

电源
电源要求：未调理10 ～ 30 VDC
功耗：2W
内置看门狗定时器

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8317A			下载
