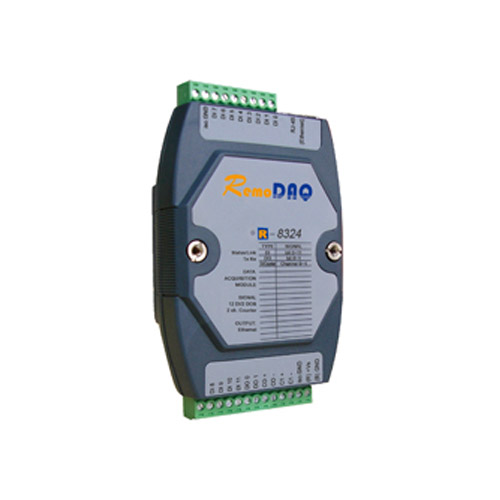

R-8324

12路通用输入/输出模块

主要特点

模拟量输出
-    通道 4
-    有效分辨率 12位
-    输出范围 0～10VDC,0-20mA,4-20mA
-    驱动电压 5VDC（电流输出）
-    隔离电压 2000 VDC

数字量输入
- 通道 4

    干接点
    逻辑电平0：接地
    逻辑电平1：开路
    湿接点：
    逻辑电平0：+3Vmax
    逻辑电平1：+10V到30VDC

数字量输出
-    通道 4
     集电极开路30V
     100mA 负载

产品型录

产品介绍
产品规格
档案下载

12路通用输入/输出模块

模拟量输出

有效分辨率	12位
通道	4
输入范围	0～10VDC，0～20mA，4～20mA
驱动电压	5VDC（电流输出）
隔离电压	2000VDC
精度	满量程的0.05%
零漂移	±50ppm/℃

数字量输入

通道	4 干接点：逻辑电平0：接地逻辑电平1：开路湿接点：逻辑电平0：+3Vmax 逻辑电平1：+10V到30VDC

数字量输出

通道	4 集电极开路30V 100mA 负载

电源

功耗

4W（典型）

订货信息
- R-8324 12路通用输入/输出模块

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8324			下载
