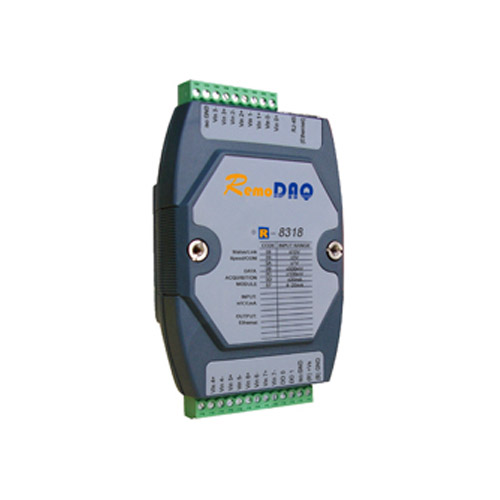

R-8318

8路模拟量/热电偶输入模块

主要特点

-   有效分辨率 16位
-   通道 8路差分
-   隔离电压 2000VDC
-   故障和过压保护承受电压± 35V
-   采样速率 10采样点/秒
-   输入阻抗 7MΩ
-   带宽 13.1Hz@50Hz 15.72Hz@60Hz
-   精度 ±0.1%或更高
-   零漂移 ±6μV/℃
-   满量程漂移 ±25ppm/℃

产品型录

产品介绍
产品规格
档案下载

8路模拟量/热电偶输入模块

模拟量输入

有效分辨率	16位
通道	8路差分
输入类型	热电偶，mV，V，mA
输入范围	±15mV，±50mV，±100mV，±500mV，±1V，±2.5V，±20mA
热电偶类型和范围	J 0～760℃ K 0～1370℃ T -100～400℃ E 0～1000℃ R 500～1750℃ S 500～1750℃ B 500～1800℃
隔离电压	2000VDC
故障和过压保护	承受电压± 35V
采样速率	10采样点/秒
输入阻抗	7MΩ
带宽	13.1Hz@50Hz 15.72Hz@60Hz
精度	±0.1%或更高
零漂移	±6μV/℃
满量程漂移	±25ppm/℃
CMR@50/60Hz	92db

电源

电源要求	未调理10 ～ 30 VDC
功耗	2W
内置看门狗定时器	是

订货信息
- R-8318 8路模拟量/热电偶输入模块

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8318			下载
