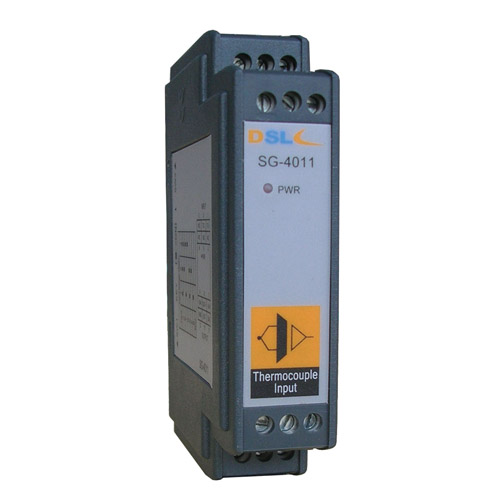

SG-4011

热电偶输入/直流输出模块

主要特点

- 隔离(3线) 1000Vdc
- 精确度 ±2℃
- CMR 115DB（Min）
- 温度范围 -20℃ ~ 70℃
- 湿度 5% ~ 90%，无凝露

产品型录

产品介绍
产品规格
档案下载

热电偶输入/直流输出模块

输入类型：

热电偶类型	温度范围	备注
J	-40~760℃	±2℃
K	0~1000℃	±2℃
T	-100~400℃	±2℃
E	0~760℃	±2℃
S	0~1750℃	±4℃
R	0~1750℃	±4℃
B	0~1800℃	±4℃
N	0~1300℃	±4℃

输出类型

电压输出	0~10V
阻抗	0.5Ω

常规

隔离(3线)	1000VDC
精确度	±2℃
CMR	115dB（Min）
温度范围	-20℃ ~ 70℃
湿度	5% ~ 90%，无凝露

电源

功耗	1.4W
电压	24VDC ±10%
