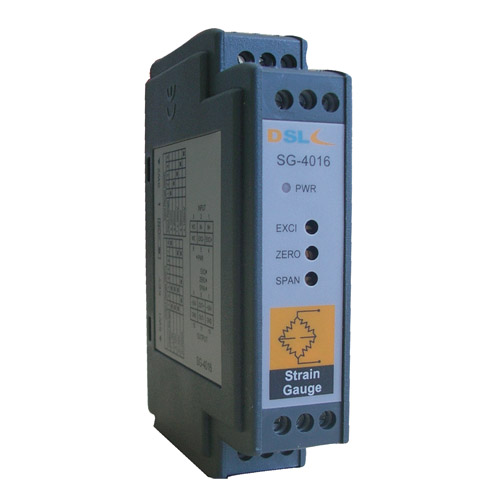

SG-4016

隔离的张力(应变)信号输入模块

主要特点

产品型录

产品介绍
产品规格
档案下载

隔离的张力(应变)信号输入模块

电压

输入：±10mV，±20mV，±30mV，±50mV，±100mV

激励电压：1～10VDC(最大60mA ，出厂默认设置10V)

输出

电压输出：

双极性：±5V，±10V

单极性：0～10V

输出阻抗：<50Ω

电流输出：

电流：0～20mA

负载：0～500Ω（源）

常规

隔离（3相）：1000VDC

精确度：±0.1% （满量程）

带宽：2.4KHz（标准）

稳定性（温度漂移）：150ppm（标准）

隔离模式抑制：＞100dB@50Hz/60Hz

温度范围：-20℃ ~ 70℃

湿度：5% ~ 90%，无凝露

电源

功耗：1.85W（电压输出）
2.15W（电流输出）

电压：24VDC ±10%
