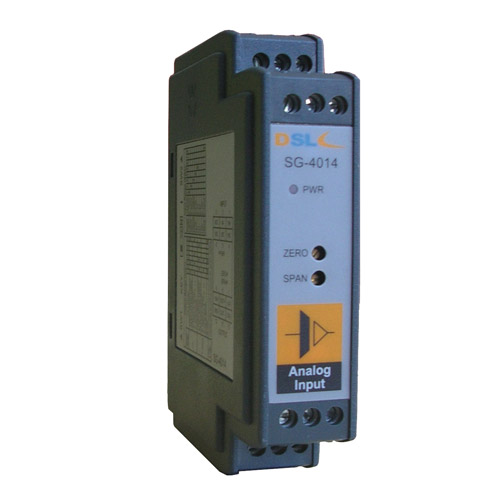

SG-4014

直流输入/直流/输出模块

主要特点

-   1000V（DC）完全隔离
-   宽输入/输出范围
-   简单的输入/输出结构
- DIN导轨安装
-   低能量消耗，085W（电压输出）
-   单路+24Vdc操作
-   温度范围：-20℃ ~ 70℃
-   湿度：5% ~ 90%，无凝露

产品型录

产品介绍
产品规格
档案下载

直流输入/直流/输出模块

输入电压	双极性：±10mV，±50mV，±100mV，±0.5V，±1V，±5V，±10V 单极性：0~10mV，0~50mV，0~100mV，0~500mV，0~1V，0~5V，0~10V 输入阻抗：2MΩ 输入带宽：2.4KHz
输入电流	双极性：±20mA 单极性：0~20mA 输入阻抗：250Ω
输出电压	双极性：±5V，±10V 单极性：0~10V 阻抗：<50Ω 驱动能力：10mA（Max）
输出电流	电流：0~20mA 负载：0~500Ω（源）
常规	隔离（3相）：1000VDC 精确度：±0.1%（满量程）稳定性（温度漂移）：150ppm 隔离模式抑制：>100dB@50Hz/60Hz 温度范围：-20℃ ~ 70℃ 湿度：5% ~ 90%，无凝露
电源	功耗：0.85W（电压输出） 1.2W（电流输出）电压：24VDC ±10%
