R-8187

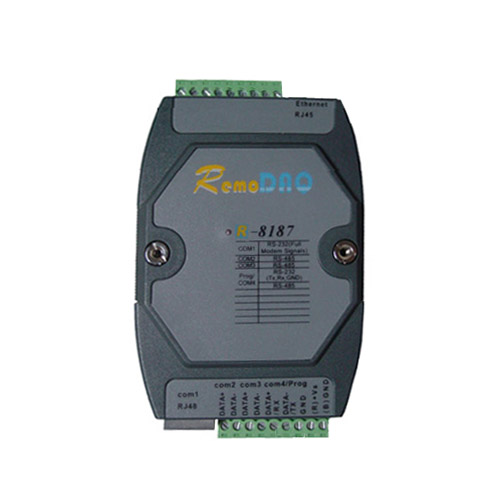

RemoDAQ-8187系列可编程通讯控制器

主要特点

- 10/100Base-T以太网接口

- 电子邮件报警功能能

- 内置Web Server

- 内置FTP Server和Client

- 支持4路数字量输入和4路数字量输出（R-8187A）

- TCP和UDP Socket的完整功能

- 可选4位7段LED显示

- 支持ModBus/RTU和ModBus/TCP函数库

- 1.5MB Flash ROM/640 KB SRAM

- 4个串口，可扩展至8个串口

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-8187系列是一款尺寸紧凑、具有以太网功能的X-86通讯控制器。RemoDAQ-8187系列不仅支持以太网接口，而且还带有4 个串口，适合在工业通讯和控制应用中使用。以太网功能包括内建的HTTP Server、FTP Server和电子邮件报警功能。模块化I/O设计为各种应用需求提供了很强的灵活性。 RemoDAQ-8187系列还支持丰富的ModBus函数库，包括ModBus/RTU主站/从站函数库和ModBus/TCP Server/Client函数库。

系统

CPU	16位微处理器
电子盘	1.5MB Flash -256KB系统Flash -256KB Flash -1024KB用于文件系统，960KB用于用户应用程序
内存	640KB SRAM，可达384KB电池备份
操作系统	ROM-DOS(MS-DOS)
定时器BIOS	有
实时时钟	有
看门狗定时器	有
COM1	RS-232(完整调制解调器信号)
COM2	RS-485
COM3	RS-485
编程端口/COM4	RS-232/485 RS-232接口(TX，RX，GND) RS-485
状态显示	电源、CPU、通讯和电池
CPU功耗	4W

数字量输入

通道	4
干接点	逻辑电平0：开逻辑电平1：接地
湿接点	逻辑电平：+2V 逻辑电平：4V～30V

数量量输出

通道	4
	集电极开路+40V，200mA负载

网络

以太网速率	10/100 Mbps
RS-485速率	1200～115.2 Kbps
最大节点数	每个串口可连接256个多站系统

软件支持

C函数库	Borland C++ 3.0 for DOS

电源：未调理+10～30VDC，电源反向保护

环境

工作温度	-10～70℃
储存温度	-25～85℃
湿度	5～95%，无凝结

订货信息
- R-8187 以太网通讯控制器
- R-8187A 与R-8187功能相同，但增加了4DI+4DO
