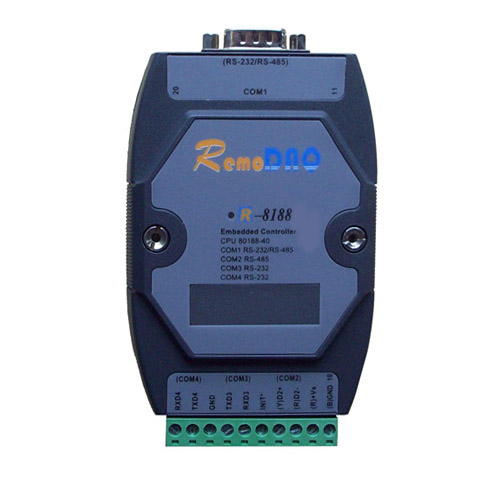

R-8188

RemoDAQ-8188系列可编程通讯控制器

主要特点

- AMD-80188-40Mhz低功耗CPU

- 内置RTC、SRAM、Flash Disk、miniBIOS、ROM DOS、看门狗，自动换向电路，7段LED显示，扩展I/O总线等

- 4～8个串口，其中COM1为5线RS-232或2线RS-485口

- 工作温度：-25～70℃

- 电源：+10～30VDC/2.0W

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-8188系列产品是一款低价格、多用途、可编程的串口通讯控制和通讯协议转换模块，由于其核心硬件为AMD-80188-40Mhz CPU，软件采用miniBIOS和ROM DOS，故此模块可视为一台IBM-PC兼容机，当然，此款机器仅包括CPU、内存、Flash Disk、4～8个RS-232/422/485串口等，而无软驱、硬盘、键盘、鼠标接口，用户可借助一台普通的PC机开发程序，并通过PC机的串口与RemoDAQ-8188XD进行通讯或下载程序。

随RemoDAQ-8188模块提供了完备的开发程序包，用户可利用BC和超级终端进行程序开发并进行单步调试。

模块配有7段数码显示管，可在本地进行简单数据显示。

Remo-8188-M支持ModBus协议，带有ModBus驱动的上位软件可直接从此模块获取数据。

RemoDAQ-8188系列速查表：

模块型号	R-8188 R-8188D	R-8188/5 R-8188/5D	R-8188/8 R-8188/8D	R-8188-M
CPU	80188-40M	80188-40M	80188-40M	80188-40M
SDRAM	256K	256K	256K	256K
Flash	512K	512K	512K	512K
嵌入式OS	ROM DOS	ROM DOS	ROM DOS	ROM DOS
EEPROM	2K	2K	2K	2K
COM口	1个RS-232/485，1个485，2个 RS-232	1个RS-232/485，1个485，3个 RS-232	1个RS-232/485，1个485，6个 RS-232	1个RS-232/485，1个485，2个 RS-232
通讯速率	从1200到115.2K	从1200到115.2K	从1200到115.2K	从1200到115.2K
通讯距离	RS-485：1200米	RS-485：1200米	RS-485：1200米	RS-485：1200米
7段数码显示	有（R-8188D）	有（R-8188/5D）	有（R-8188/8D）	有
数据流控制	有	有	有	有
看门狗定时器	有	有	有	有
隔离电压	3000VDC	3000VDC	3000VDC	3000VDC
电源要求	10～30VDC	10～30VDC	10～30VDC	10～30VDC
工作温度	-10～70℃	-10～70℃	-10～70℃	-10～70℃

订货信息：

- R-8188 4串口通讯控制器

- R-8188D 带7段数码显示的R-8188

- R-8188/5 5串口通讯控制器

- R-8188/5D 带7段数码显示的R-8188/5

- R-8188/8 8串口通讯控制器

- R-8188/8D 带7段数码显示的R-8188/8

- R-8188-M 带ModBus协议的4串口通讯控制器

- PWR-24/220 220V输入/24V输出，15W电源模块
