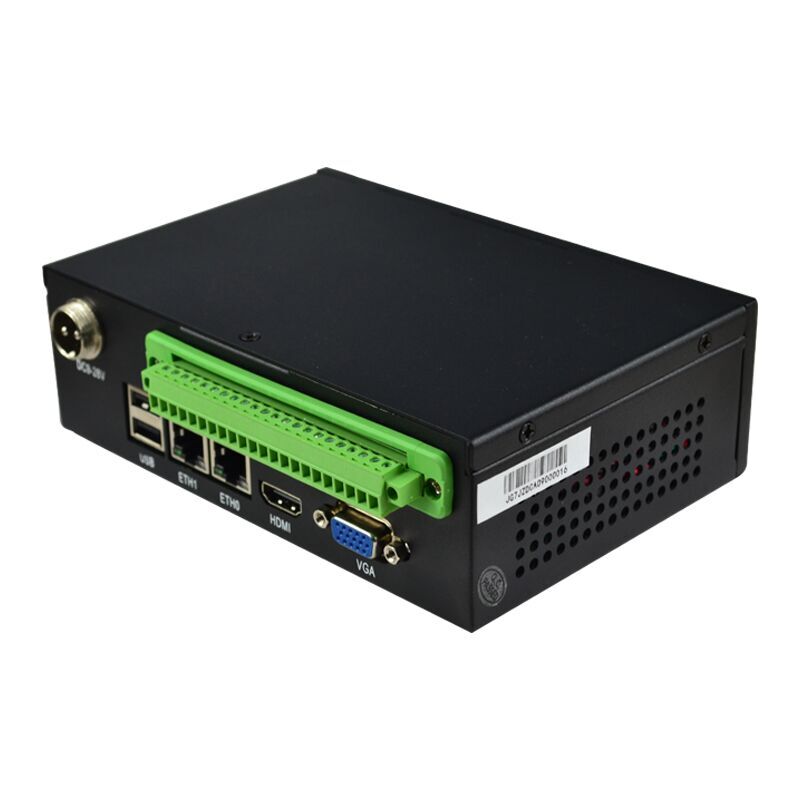

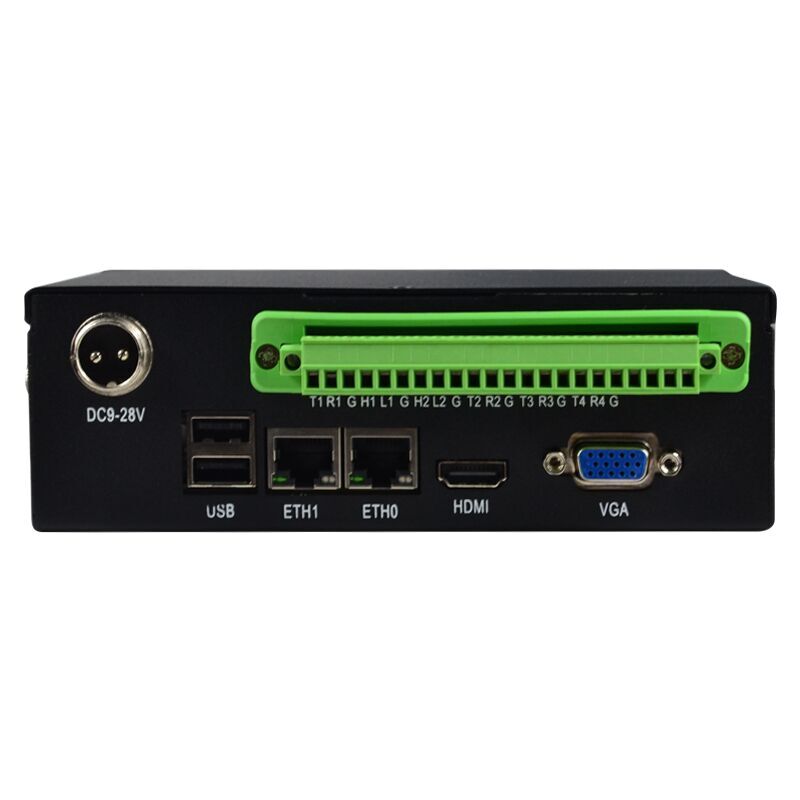

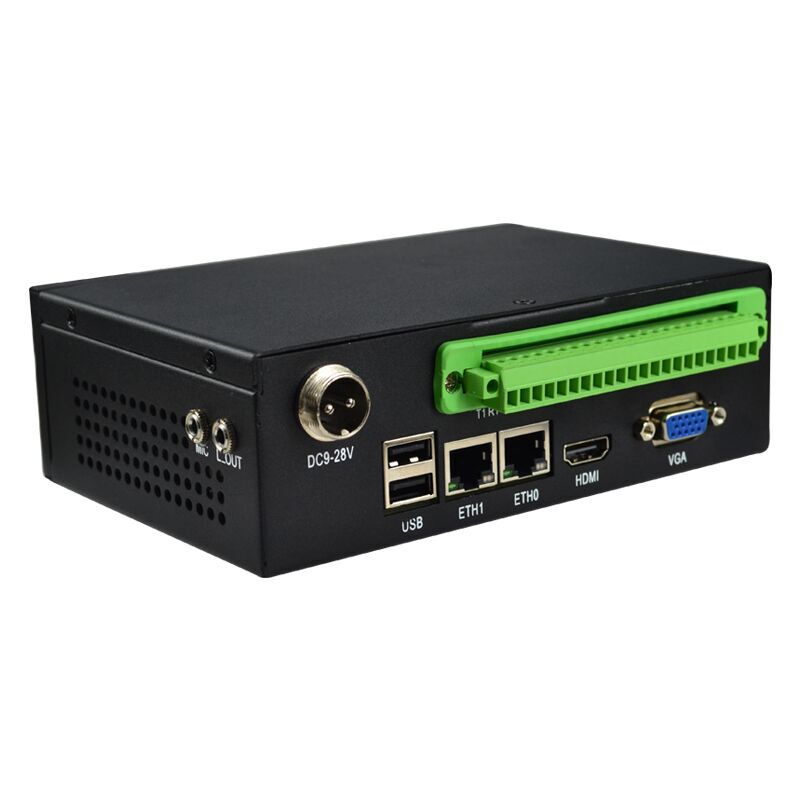

GEA-7316-YM

采用Freescale CortexTM A9 i.MX 6系列高性能，低功耗处理器（可选单核，双核，四核）
默认板载DDRIII 1066MHZ 2GB存储器：8GB Nand Flash.
集成3D图形单元和1080P编程/编译视频引擎
提供HDMI, LVDS, VGA显示输出端口，支持同步异显
提供1xSATA,拥有8xCOM,4xUSB2.0, 20xGPIO
提供WIFI,千兆以太网以及3G/4G模块.灵活的网络应用环境。
采用开放式Android/ Linux智能操作系统

产品型录

产品介绍
产品规格
档案下载

采用Freescale CortexTM A9 i.MX 6系列高性能，低功耗处理器（可选单核，双核，四核）
默认板载DDRIII 1066MHZ 2GB存储器：8GB Nand Flash.
集成3D图形单元和1080P编程/编译视频引擎
提供HDMI, LVDS, VGA显示输出端口，支持同步异显
提供1xSATA,拥有8xCOM,4xUSB2.0, 20xGPIO
提供WIFI,千兆以太网以及3G/4G模块.灵活的网络应用环境。
采用开放式Android/ Linux智能操作系统

CPU	Freescale CortexTM A9 i.MX 6Q高性能，低功耗处理器四核
RAM	DDR3 SDRAM，标配1G/可选配2G
FLASH	8GEMMC标配，可选配16G
网络	AR8031网络芯片采用RGMII模式完美支持10M/100M/1000M网口
	RTL8111E模式完美支持10M/100M/1000M网口
	软硬件完美支持 MOXA AWK-1137C无线终端
通讯接口	9路RS232 串口，其中：1路为调试串口，2路RS232与485复用
	1路USB高速OTG，4路USB HOST 其中2路标准USB接口2路2.0mm插针。
	2路CAN接口，支持CAN2.0协议
	2路10/100/1000Mbps 工业以太网，带有ACT,LINK指示灯
	1路WI-FI模块，可以热点使用
	1路SPI总线（四核CPU有）
显示接口	CSI&DSI接口
	2路LVDS接口，每路最高支持1920*1200分辨率，带使能I/O背光控制I/O
	1路HDMI 接口，支持HDMI1.4接口规范
	1路VGA接口，共用1*12_2.0mm插座
音频接口	SGT5000XNAA3/R2双声道音频输出，MIC音频输入。2*4_2.0mm插座
	NS4258T 5W2双声道AB，D类双模式音频功放，25_2.0mm插座
输入接口	标准12C 电容屏接口，共两组I2C，1组用于I2C触摸驱动，1组接外设
扩展接口	MINI_PCIE 2.0接口，支持3G/4G模块
	SIM卡接口
	GPIO接口24路2*12_2.0mm
存储	1路SD卡接口
	1路SATA 硬盘接口，SATAII 标准，速度高达3.0bps
其他设备	复位电路，看门狗电路，实时时钟，单片机定时关机电量检测
电源输入	宽范围供电，可支持+9V-28V宽范围电压供电
工作温度	-20℃～80℃
存储温度	-40℃ ~ 80℃
工作湿度	0% ~ 90% 相对湿度, 无凝露
存储湿度	0% ~ 90% 相对湿度, 无凝露
整机尺寸	11216350.8
