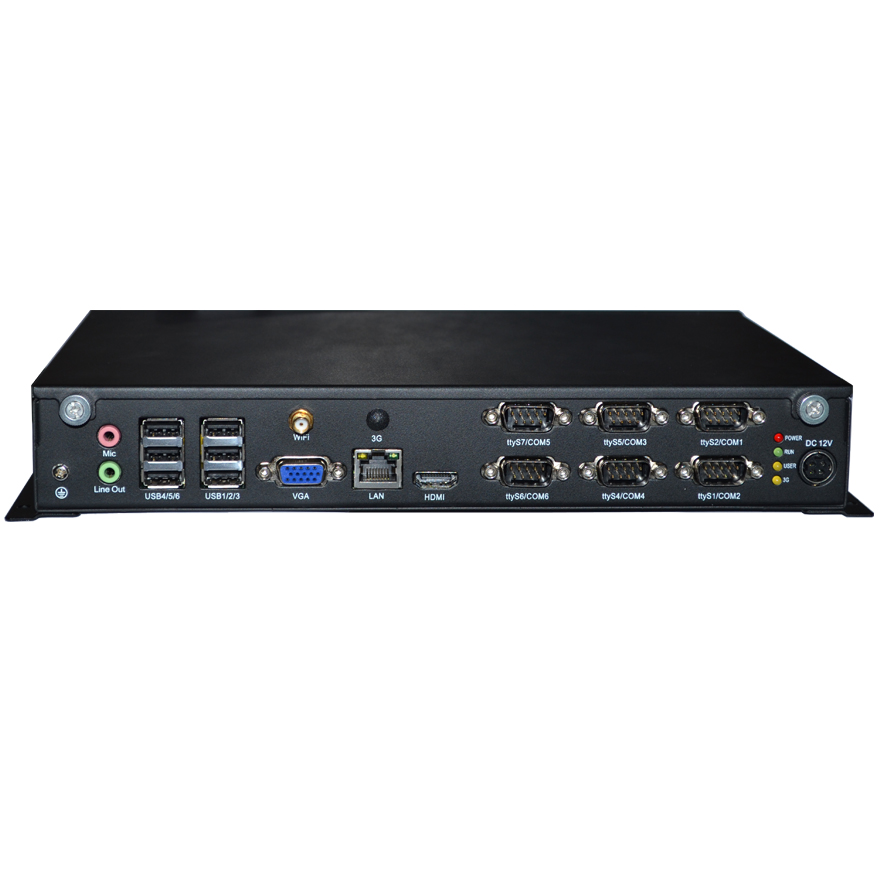

GEA-8304安卓嵌入式整机

主要特点：

- 基于freescale I.MX6系列平台设计的工业级嵌入式整机

- 支持多种性能配置组合

- 板载多路IO接口

- 单面出线设计

- 针对安卓系统进行了全面可靠性的优化

- 整版料件均采用工业级设计及选型

产品型录

产品介绍
产品规格
档案下载

GEA-8304安卓嵌入式整机

功能		说明
处理器系统	CPU	兼容IMX6全系列CPU 单核、双核、四核
内存		2GB or 1GB可选，DDR3，1066MHz
网络	千兆以太网	板载RJ45接口
网络	WIFI	支持802.11b/g/n，提供WIFI热点功能
硬件监测	看门狗定时器	0~255秒，提供看门狗例程
存储	SSD	eMMC 4/8/16GB/32GB可选，标准为8GB
	SD	1路标准SD座
	SATA	支持SATA+POWER一体化接插件
串口	RS232/485	1路隔离RS232/RS485可选，5路RS232,板载2个TTL串口插针
USB	USB.0+OTG	6个USB 2.0、 1个OTG
显示	VGA	标准VGA输出
	LVDS	内置24位LVDS双通道插针，支持双路单通道操作
	HDMI	HDMI 标准，可传输音频，支持1080P,720P等，支持特殊分辨率1028x768及1366x768等
	触摸屏	支持多种触摸屏接口，包括四线制电阻屏,I2C触摸屏,USB触摸屏等
扩展接口	MINI PCIE	支持全长MINI PCIE的扩展，支持3G/4G等
	SIM	板载SIM卡插座
	GPIO	板载32路GPIO插针
	RESET	支持硬复位开关
	CAN	板载2个TTL电平CAN接口
音频	接口	标准3.5mm MIC/耳机
音频	功放	可选2W8Ω驱动，双声道输出
功能按键	KEYPAD	支持扩展功能按键板
RTC时钟	系统时钟	采用外部RTC PCF8563，精度要求：误差小于±3秒/月
电源	电源类型	DC 12V输入，支持电源反向及过压保护
电源	电源类型	电源接口为紧固型工规插口
工作环境	工作温度	-20°C ~ 70°C
	存储温度	-40°C ~ 80°C
	工作湿度	0% ~ 90%相对湿度, 无凝露
	存储湿度	0% ~ 90%相对湿度, 无凝露
外观尺寸	结构设计	一体化单面海岸线出口方式
外观尺寸	尺寸	270mm*110mm
