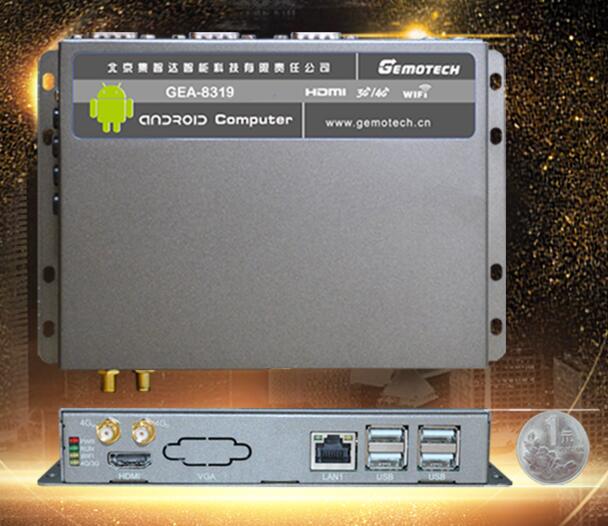

GEA-8319

◆ 基于ARM Cortex RK3399 Cortex A72+Cortex A53 六核 2.0GHz 处理器；

◆ 集成双USB3.0

◆ 双ISP像素处理能力高达800MPix/s，支持双路摄像头数据同时输入，支持3D、深度信息提取等高阶处理。

◆ MIPI/eDP接口，支持2560×1600屏幕显示和双屏显示。

◆ HDMI2.0接口、H.265/H.264/VP9 4K@60fps高清视频解码和显示。

◆ 全面系统支持：兼容Android、Linux等操作系统

产品型录

产品介绍
产品规格
档案下载

GEA-8319采用了六核64位“服务器级”处理器Rockchip RK3399，拥有2GB/4GB DDR3和8GB/16GB/32GB eMMC, 并新增USB3.0 HOST等高性能数据传输接口。支持2560×1600屏幕显示和双屏显示，eDP显示接口输出支持4K级输出接口，采用了工业主板设计，宽压输入DC12V—28V支持电源反向过压保护，RK3399强大的性能配置将给VR、全景拍摄、视觉识别、服务器、3D等前沿技术带来里程碑的变革。

产品特点

◆ 集成双USB3.0

◆ 双ISP像素处理能力高达800MPix/s，支持双路摄像头数据同时输入，支持3D、深度信息提取等高阶处理。

◆ MIPI/eDP接口，支持2560×1600屏幕显示和双屏显示。

◆ HDMI2.0接口、H.265/H.264/VP9 4K@60fps高清视频解码和显示。

◆ 全面系统支持：兼容Android、Linux等操作系统

功能描述
处理器系统	CPU	RK3399 2.0G 6核心CPU 2A72,4A53
内存	技术架构	4GB LPDDR3，1600MHz
网络	有线网络	CPU内部集成1个千兆网络
	WIFI+蓝牙模块	USB RTL8723 2.4GWIFI模块，支持蓝牙4.0
	3G/4G上网	支持联通/移动/电信全网通模块
硬件监测	看门狗定时器	0~255秒，提供看门狗例程
存储	EMMC	EMMC 8GB/16GB/32GB可选
	SD	1个SD座
	EPROM	读取硬件信息，特别是设备ID
串口	COM0	DEBUG口
	COM1	3线制RS232/RS422/RS485可选择，CPU内部引出
	COM2-4(TTY02-04)	3线制RS232可选
USB	USB2.0	4路
	USB3.0	2路
	OTG	1路，支持Android标准的通过USB 3.0共享功能
显示	VGA	VGA输出可选
	HDMI	HDMI1.4A标准，可传输音频,支持1080P、4k显示
	EDP	24位双通道
	触摸屏	采用I2C接口或 USB接口，屏规格由客户提供，我方提供驱动
扩展接口	CON1	1路I2C接口/1路SPI接口
		1路PWM输出
		12路GPIO和电源、GND
音频	接口	MIC/耳机
音频	功放	2W@8欧姆功放输出
功能按键	GPIO	热键：音量+热键：音量— 热键：维护开关（GPIO脚）
RTC时钟	CR2302可充电电池供电，a) 可设定的系统RTC，精度要求：误差小于±3秒/月
温度传感器	规格不限，提供API / 枚举值：SENSOR_TYPE_TEMPERATURE
LED	LED定义及数量：4个（power , wifi， 4g , run）
其他性能参数
电源	电源类型	DC 12V输入，支持电源反向及过压保护
电源	电源类型	采用4PIN航插并保留共LAYOUT4PIN WAFER
工作环境	工作温度	-20℃ ~ 70℃
	存储温度	-40℃ ~ 80℃
	工作湿度	0% ~ 90%相对湿度, 无凝露
	存储湿度	0% ~ 90%相对湿度, 无凝露
外观尺寸	尺寸	146 x 112mm,6层板
