GET-7316

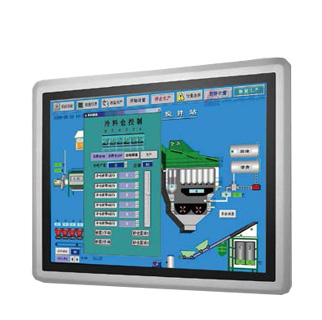

集智达GET-7316 15寸工业平板电脑一体机

产品型录

产品介绍
产品规格
档案下载

集智达GET-7316 15寸工业平板一体机

◆ Freescale 基于ARM Cortex-A9 架构
◆ 支持Android、linux操作系统
◆ 支持3G/4G，WIFI、蓝牙无线传输
◆ 3*RS232，1*RS485/RS232 可选，
◆ 4*USB，1*LAN
◆ 内建RTC 和Watchdog
◆ 支持12VDC 电源输入

类别	项目	型号	数量	主要参数
主板配置	处理器	MCIMX6Q5EYM10AD	1	四核
	主板	GEA-6308	1
	内存	板载2G DDR3	4
	存储器	EMMC16G-M525	1	板载16G
	散热		1
	操作系统	Android 4.2.2
	工作温度			-20~ +70
	I/O接口	电源输入插座 12V	1
		RS232串口	4	COM1~COM4
		HDMI	1
		USB	6	USB1~6
		网口	1
		RS485串口	1	COM5
		SD卡槽	1
		SIM卡槽	1
		Line out	1
		Mic	1
		左右声道功放	1
液晶屏配置	液晶屏型号	无点工规屏		无点工规屏
	尺寸大小	15寸
	宽高比	4:3
	背光	WLED
	分辨率	1024*768
	对比度	600:1
	亮度	400cd/m2
	视角	-80~80°(H）, -80~80°(V）
	使用寿命	大于等于5万小时
	工作温度	-20~ +70度
	触摸控制器型号	集成
	接口类型	USB
	尺寸大小	15寸
	透光率	>88%
	分辨率	32767*32767
	响应时间	<16ms
	触摸精度	<1.5mm（中心区域）<3.2mm（边缘区域）
	点击寿命	大于等于5千万次
	表面硬度	莫氏7级
工作环境	工作温度	–20℃ ~ +70℃
	存储温度	–40℃ ~ +80℃
	相对湿度	工作相对湿度：95% RH 在 40℃无结露
