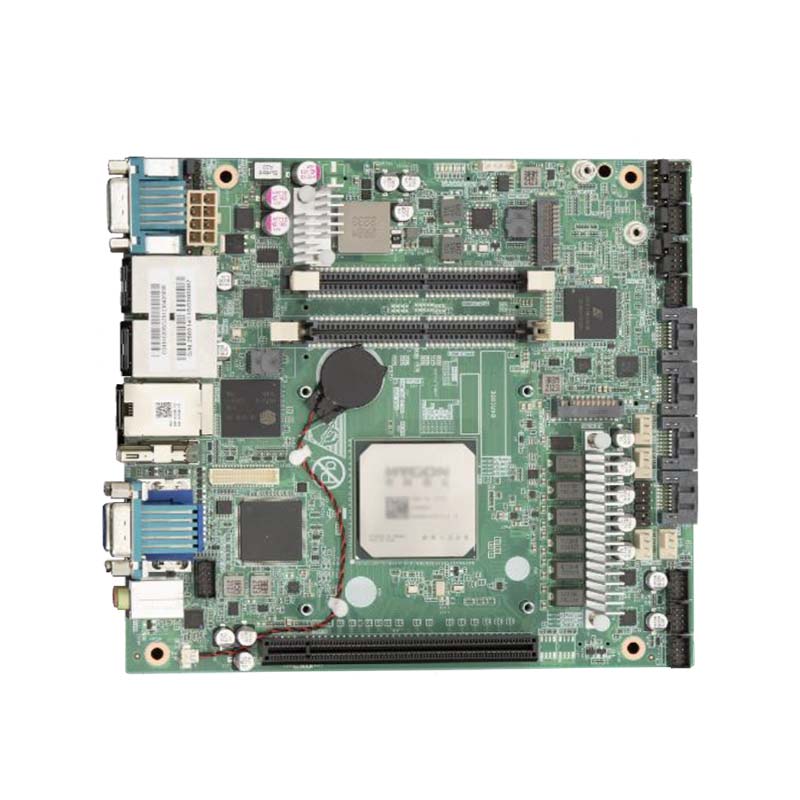

GMB-7411-1

GMB-7411-1是集智达面向工业现场应用而研发设计的工控主板。产品采用高性能4 核或８核处理器，支持 PCIe 插槽，及 USB/COM等多扩展端口。设备可选配搭载 PLC 工业编程环境，及深度神经网络、运动控制、工业通信协议、工业安全、实时数据库等多种软件或中间件模块。可广泛应用于智能制造、工业控制、机器视觉、智能交通、机械自动化、安防监控、教育培训、通讯及信息采集等场景。

产品型录

产品介绍
产品规格
档案下载

GMB-7411-1是集智达面向工业现场应用而研发设计的工控主板。产品采用高性能4核或８核处理器，支持 PCIe 插槽，及 USB/COM等多扩展端口。设备可选配搭载 PLC 工业编程环境，及深度神经网络、运动控制、工业通信协议、工业安全、实时数据库等多种软件或中间件模块。可广泛应用于智能制造、工业控制、机器视觉、智能交通、机械自动化、安防监控、教育培训、通讯及信息采集等场景。

CPU	4核8线程3.0G Hz 8核16线程3.0G Hz
内存	2个DDR4 内存插槽，支持SODIMM，ECC/NoneECC，可达64G
网络	板载网络控制器，支持4个RJ45千兆网口
显示	板载1个VGA接口，支持分辨率可达1920x1080 板载1个HDMI接口，支持分辨率可达3840x2160 板内1个LVDS显示接口pin header 支持双独立显示
PCle 扩展	1个PCle3.0 x16插槽 1个M.2 Key-E for Wifi/BT (PCIe x1信号)
板载存储扩展	板载4个SATA3.0端口板载1个NVMe M.2 2280连接器（PCIe x4信号）
其他端口	总计支持10个USB口：4个USB3.0接口位于RIO，板内6个USB2.0 pin header 总计支持10个串口：2个DB9串口位于RIO，可支持RS232/422/485，板内8个COM pinheader，支持RS232板内8个GPIO pin header，支持自定义输入输出板载一组Audio接口（MIC，Lineout）
操作系统	方德、UOS、麒麟等操作系统 Windows7/10、2019 等视窗操作系统 RedHat、CentOS、Ubuntu 等商用 Linux 操作系统
看门狗计时器	System Reset 1~255 秒可编程
电源	ATX 8pin 电源输入
散热	支持4个4pin PWM散热风扇模组
尺寸	170 x 185 mm（IO至对端185mm）
温度	工作：0℃~ 55℃，存储：-40℃~85℃
湿度	5%~93% @40℃，无凝结
震动（5-500Hz）	工作：1Grms 非工作：2Grms
