GMP-631412

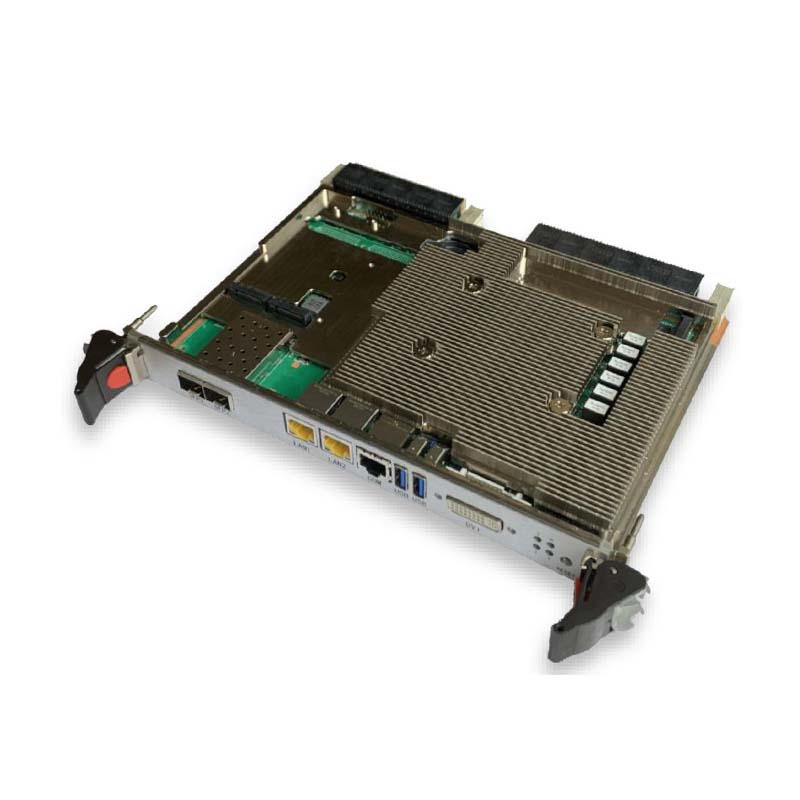

GMP-631412是集智达面向特种行业应用而研发的6U VPX单板计算机

产品采用低功耗4核或高性能８核处理器，配合使用国产操作系统，实现平台的长期稳定、可靠运行。产品支持风冷、导冷两种机箱散热方式，可广泛应用于固定地面站或移动平台如车载、船载加固计算机设备。亦适用于测控、通信、信号处理、高速存储等应用场景。

产品型录

产品介绍
产品规格
档案下载

GMP-631412是集智达面向特种行业应用而研发的6U VPX单板计算机

CPU	4 核8线程2.0G Hz 4 核8线程3.0G Hz 8 核16线程2.8G Hz 8 核16线程3.0G Hz
内存	双通道 DDR4 板贴焊接内存，支持ECC，可达32G
网络	国产网络控制器，支持2x 万兆，6x千兆，总计8个网口
前面板IO接口	2x SFP+10G网络接口（与 XMC 接口共享） 2x RJ45千兆网络接口 2x USB3.0 接口 1x RJ45 COM口 1x DVI-I显示接口，支持VGA信号，最大分辨率1920x1080
背板接口	P1：1x PCIe x16（可配置成2路x8、4路x4、8路x2） P2：1x PCIe x16（可配置成2路x8、4路x4）、6x GPIO、硬盘自毁 P4：2x SERDES或 2x 1000M base-T、XMC扩展（ 8+12d）、3x GPIO P5：2x USB2.0、2x USB3.0、1x DVI、1x VGA、2x UART（支持 RS232/422/485）、 1x SATA3.0、6x PCIE CLK P6：2x USB3.0、2x 1000M base-T、2x UART（支持 RS232/422/485）、2x PCIE CLK
存储扩展	板载3个M.2 2280 NVMe插槽（PCIe x4信号）板载64GB SATA Flash 背板支持1个SATA3.0
XMC 扩展	可选支持XMC接口，PCIe x8信号，支持8+12d RIO传输（与SFP+接口共享）
电源	+12V输入，最大100w
散热	风冷散热，可选导冷散热器
操作系统	方德、UOS、麒麟等操作系统 Windows7/10、2019 等视窗操作系统 RedHat、CentOS、Ubuntu等商用Linux操作系统
尺寸	6U 5HP，233.35 x 160 mm（9.2" x 6.3"）
重量	1.0KG
温度	工作：-40℃~55℃ 存储：-50℃~70℃
湿度	5%~93% @40℃，无凝结
震动	VITA 47, V2
冲击	VITA 47, OS2
兼容性	OpenVPX（VITA 65）
