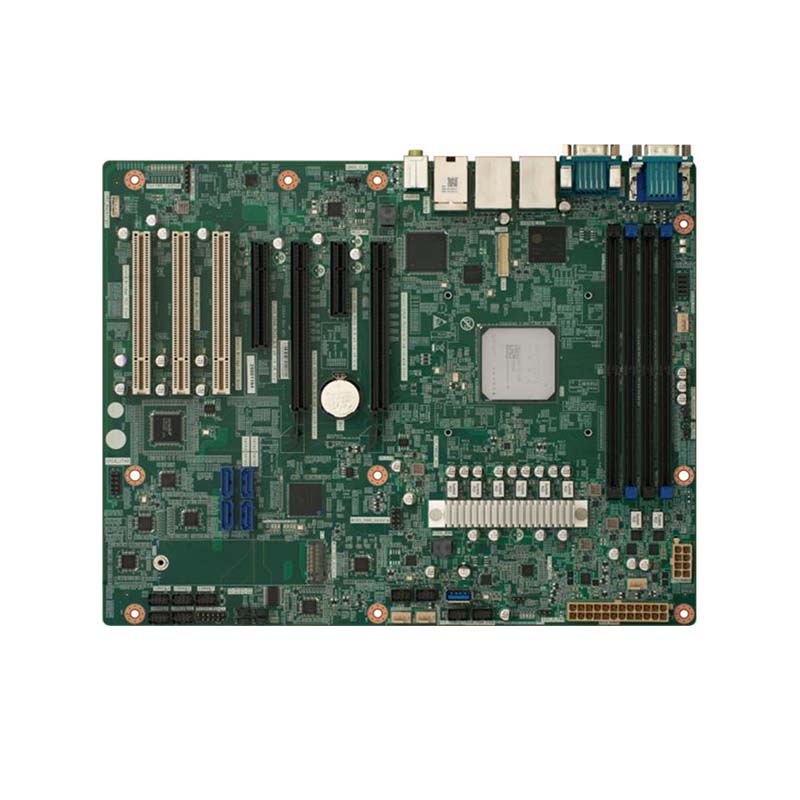

GMB-1411-1

GMB-1411-1是集智达面向工业现场应用而研发设计的工控主板。产品采用4 核或８核处理器，支持 PCIe/PCI 插槽，及USB/COM 等多种扩展端口。可搭载PLC 工业编程环境，深度神经网络、运动控制、工业通信协议、工业安全、实时数据库等多种软件或中间件模块。可广泛应用于智能制造、工业控制、机器视觉、智能交通、机械自动化、安防监控、教育培训、通讯及信息采集等场景。

产品型录

产品介绍
产品规格
档案下载

CPU	4核8线程 3.0G Hz 8核16线程 3.0G Hz
内存	4个DDR4 内存插槽，支持UDIMM/RDIMM，ECC/NoneECC，可达128G
网络	板载网络控制器，支持4个RJ45千兆网口
显示	板载1个VGA接口，支持分辨率1920x1080 板载1个HDMI接口，支持分辨率3840x2160 板内1个LVDS显示接口 pin header 支持双独立显示
PCle/PCI扩展	2个PCle3.0 x16插槽（分别为x8信号） 1个PCle3.0 x8插槽(x2信号) 1个PCle3.0 x4插槽(x1信号) 3个32bit PCl插槽
板载存储扩展	板载4个SATA3.0端口板载1个NVMe M.2 2280连接器（PCIe x2信号）
其他端口	总计支持12个USB口：4个USB3.0 接口位于RIO，1个USB3.0 Type A位于主板内部，板内7个USB2.0 pin header总计支持12个串口：2个DB9串口位于 RIO，可支持 RS232/422/485，板内 10个COMpin header，支持RS232板内 8 个 GPIO pin header板载一组Audio接口（MIC，Lineout）
操作系统	方德、UOS、麒麟等操作系统 Windows7/10、2019等视窗操作系统 RedHat、CentOS、Ubuntu等商用Linux操作系统
看门狗计时器	System Reset 1~255 秒可编程
电源	ATX 24+ 8pin电源输入
散热	支持4个4pin PWM散热风扇模组
尺寸	304 x 244 mm
温度	工作：0℃~ 55℃，存储：-40℃~85℃
湿度	5%~93% @40℃，无凝结
震动（5-500Hz）	工作：1Grms 非工作：2Grms
