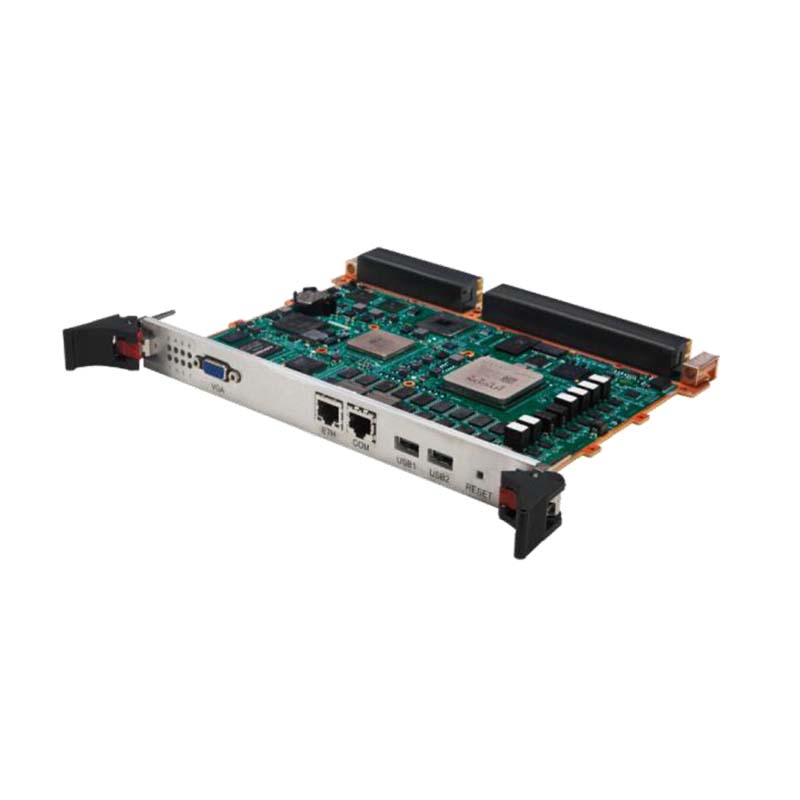

GMP-631411

GMP-631411是一款高性能6U VPX 计算刀片，搭载国产高性能多核处理器，背板支持多种总线及IO扩展，帮助提升系统的部署密度及空间使用率，降低系统成本。可广泛应用于固定工作站及移动载具高密度计算、通信、信号处理、存储等应用场景。

产品型录

产品介绍
产品规格
档案下载

处理器	CPU	国产处理器
处理器	主频/核数	2.6GHz~3.0GHz，4核、8核
内存	主频	双通道DDR4
内存	容量	32GB
背板接口	P1	可选，2x40GBase-KR4或4个万兆
	P2	1*PCIex16(可配置成1个x16、2个x8、4个x4)
	P3	1PCIex8、1PCIe x4、 2*SERDES
	P4	2*SERDES、2个1000M Base-T
	P5	2USB2.0 MS/KB、2USB3.0、1*VGA
	P6	2SATA3.0,1RS232,1*RS422
前面板	HJ30J	VGA&RS232
	以太网	2*RJ-45 10/100/1000BASE-T
	USB	2*USB3.0
操作系统	兼容性	Windows、Linux、国产操作系统
存储	扩展存储	4*SATA 到背板，1个NMVe SSD接口
存储	板载存储	64G SATA Flash
尺寸	PCB 尺寸	5HP,233.35x 160 mm(9.2" x6.3")(Wx D)
散热	支持风冷散热，可选导冷散热
环境	温度	工作温度：-20 度~55 度，存储温度-50 度~70 度
环境	湿度	5~93%无凝结，可选三防喷涂，满足严苛湿热环境
兼容性	VPX	满足 OpenVPX 标准规范
