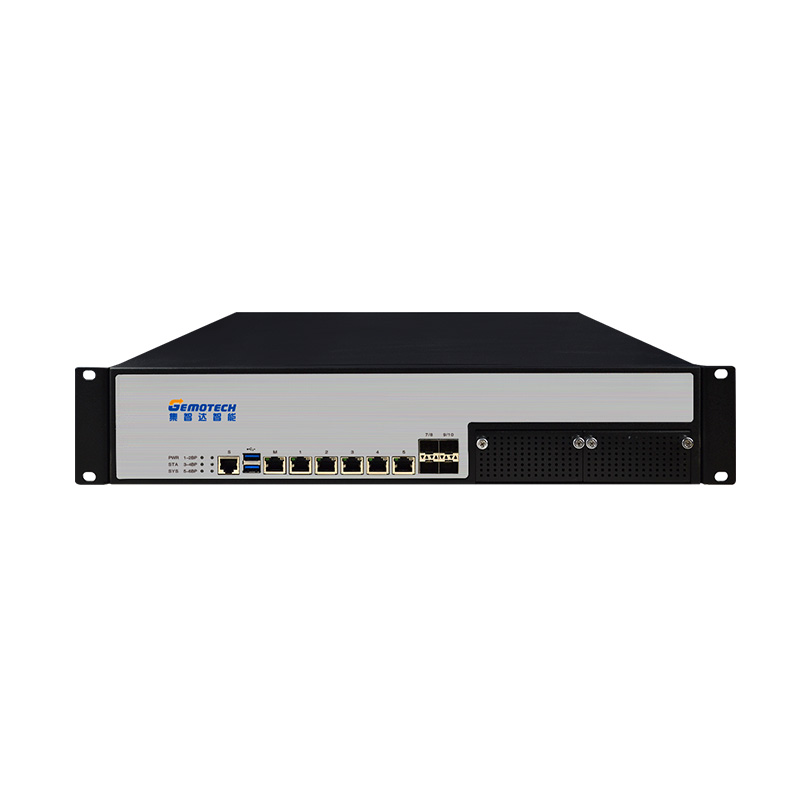

GNS-1411

基于海光 32xx/33xx 系列多网口信创定制服务器

产品型录

产品介绍
产品规格
档案下载

国产化 x86架构处理器，支持多线程（SMT），可无缝应用到生态链中。GNS-1411 兼容海光三号 CPU，平台集成 6 个千兆以太网电口和 4 个千兆以太网光口，3 组 Bypass，网卡芯片采用国产化网讯芯片，进一步提高自主可控；平台可支持128G 内存；3 个 SATA3.0 接口；1 个 CF 卡；1 个 Mini PCIe 接口；1 个 M.2 接口；预留 SODIMM DDR4 插槽可以扩展 IPMI 功能；平台支持 2 个 PCIe 8x 前置扩展插槽；内置 2 个 USB3.0Pinheader，1 个 USB2.0 插针；1 个内置串口等。

主要特点

◆国产化X86平台支持海光32xx/33xx系列处理器

◆预留SODIMM DDR4 插槽，可以扩展IPMI功能

◆计算、访存、能效比、数据库等测试性能突出，高性价比平台

◆平台高计算性能、高内存带宽、高I/O带宽，应用广泛，移植性好，兼容性好

◆完善的生态链，可支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu等

处理器系统	海光32XX/3250/33XX 系列CPU
内存	2通道，4条DIMM，可支持128G
扩展	2个USB 3.0，板内预留双排插针
	2个PCIe 8x的内置扩展插槽，二选一可插客户卡
	1个Mini PCIe接口，可插4G/WIFI模块或Mini PCIe显卡
	1个20 Pinheader，支持TCM1.0、TPM2.0卡
前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯
	1 个 RJ45 串口 2个USB2.0接口
	6个RJ45千兆网口，含1个IPMI 管理口
	4个SFP千兆光口
	2个前置网络扩展卡接口
后面板I/O接口	1个电源开关按键
后面板I/O接口	1/2个外接电源输入接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能
	板载4个SFP千兆光口
	网卡芯片：网迅WX1860A2/WX1860/A4支持10/100/1000MB
存储	2个7-pin SATA3.0 接口，标准接口定义
存储	1个CF卡接口，IDE总线，1×Compact Flash Type II插槽
电源	单电，冗电
操作系统	支持开源操作系统如centos，ubantu，redhat等，也可以支持国产化操作系统，如凝思
工作环境	工作温度0℃ ~ 40℃
	存储温度-40℃ ~ 70℃
	10% ~ 90%相对湿度，无凝露
外观尺寸	560mm x 440mm x 89mm（长x宽x高）
