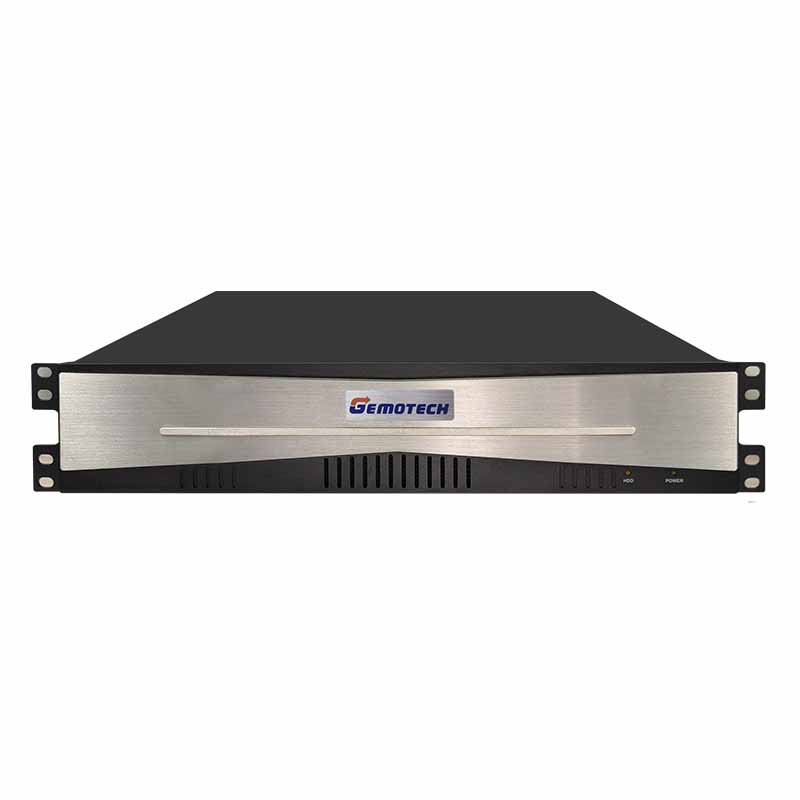

GNS-1415

基于海光 3280 处理器双路信创定制服务器

产品型录

产品介绍
产品规格
档案下载

GNS-1415 是一款基于国产 X86 架构的海光 3280 处理器高性能服务器，支持双路、6 个内置扩展插槽，提供企业级计算性能和丰富扩展能力，具有出色的软硬件兼容性。

主要特点

◆ 国产化x86平台，支持双路海光二号3280 CPU

◆ 高主频，16核，提供更强算力

◆ CPU集成安全芯片，可满足等级保扩2.0规范

◆ 支持内置多达6个PCIe插槽，不同带宽，多样选择

◆ 高内存带宽，8条DDR4 /RDIMM/UDIMM ECC/no ECC, 内存容量可达512GB

◆ 板载BMC远程管理功能

◆ 丰富的IO接口，可灵活选择和搭配

处理器	海光 3280 处理器 ×2
内存	8 槽 RDIMM/UDIMM ECC/no ECC 最大可支持到 512GB 支持双通道
存储	2 个 SATA3.0 接口 1 个 mini SAS 接口
显示	1*VGA
扩展插槽	2PCIe 3.0 ×16（同时插两块卡为 x8） 1PCIe 3.0 ×8（x4 in x8 Slot） 3*PCIe 3.0 ×4（x1 in x4 Slot）
面板 I/O 接口	2 个千兆 RJ45 网口 1 个 RJ45 千兆 BMC 管理网口 4 个 USB3.0 1 个 VGA 口 3* 音频孔

内部接口	2 个 SATA 3.0，1 个 mini SAS 接口 2 个 PCIe 3.0 ×16 1 个 PCIe 3.0 ×8（x4 in x8 Slot） 3 个 PCIe 3.0 ×4（x1 in x4 Slot） 8DIMM Slots, 2 Channels Per CPU 2 个 SYS_FAN，2 个 CPU_FAN 电源接口 24Pin +8Pin+8Pin 1 个 PMBUS 接口 1 个 CLR_CMOS，1 个 JGUI1， 1 个 JAT_ATX
电源输入	550W 冗余电源
工作温度	0℃ ~ 40℃
存储温度	-40℃ ~70℃
相对湿度	10%~90%( 无凝结 )
机箱尺寸	560mmx440mmx89mm( 长 x 宽 x 高 )
