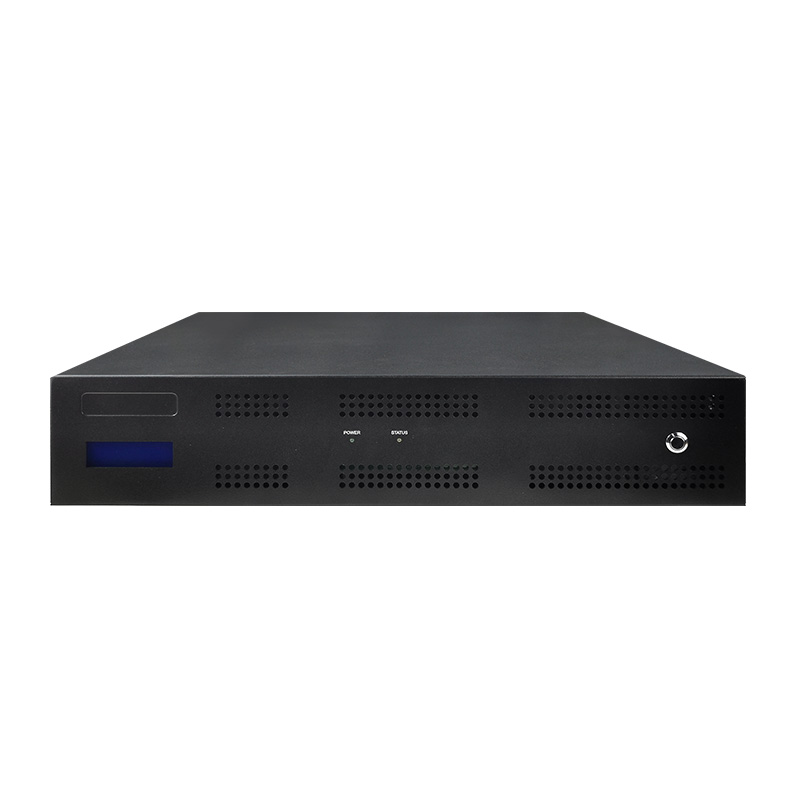

GNS-142C

基于海光 53xx/73xx 系列双路信创定制服务器

产品型录

产品介绍
产品规格
档案下载

GNS-142C 主板基于国产海光 3 号 5 系 /7 系处理器开发设计，同时兼容支持海光 2/3 号 5 系 /7 系处理器，海光 3 号 5 系 /7 系处理器是一款面向高性能计算和高端服务器的 32 核心 /64 线程、64MB L3 缓存的处理器产品，产品采用 X86 架构，集成 8 个 DDR4/3200 内存控制器，支持128 个 PCIe 4.0 Lane，集成4组10GbE/1GbE，支持 2 路互联。

处理器	海光52xx/53xx/72xx/73xx系列处理器
内存	16根 DDR4 RDIMM，最高速率支持3200MT/s
存储	硬盘数量可基于标准机箱及 SAS/RAID 卡配置
	板载4个7PIN SATA + 3个 MINI SAS HD 8643：最多支持16个 SATA
	两个SLIMSAS：最多支持4个NVME
	1个 PCIE M.2
PCIE 扩展	主板板载支持 6 个 PCIE4.0 标准直插 Slot，从左至右分别为 Slot1~Slot6 支持 3 个 PCIE X16 Slot，及3 个 PCIE X8 Slot.
后面板I/O接口	1 个 DB9 COM 口； 1 个 Dual USB3.0 接口； 1 个 Dual RJ45 数据网口； 1 个 Dual USB3.0+IPMI LAN 口； 1 个 VGA； 1 个 UID Button +LED；
前面板 I/O接口	2个USB3.0接口； 1个VGA接口；按键（电源，复位，UID），指示灯（电源，UID，系统状态，报警，网络灯）

RAID控制器	支持标准PCIE RAID卡，支持LSI和PMC的方案
网络通信	板载2个千兆电口，Intel I210以太网，支持NCSI 板载1个千兆管理网口，Aspeed AST2500
管理芯片	板载集成Aspeed AST2500 BMC芯片
板载 Header	TCM Header（LPC与SPI各1个）
	BMC UART与CPU UART
	CPLD JTAG
	CPU VR Debug Header， I2C Header，PMBUS Header，入侵开关
	电池座
	SD卡座子
风扇	8个4PIN 风扇插头
蜂鸣器	1个
电源	ATX标准电源
