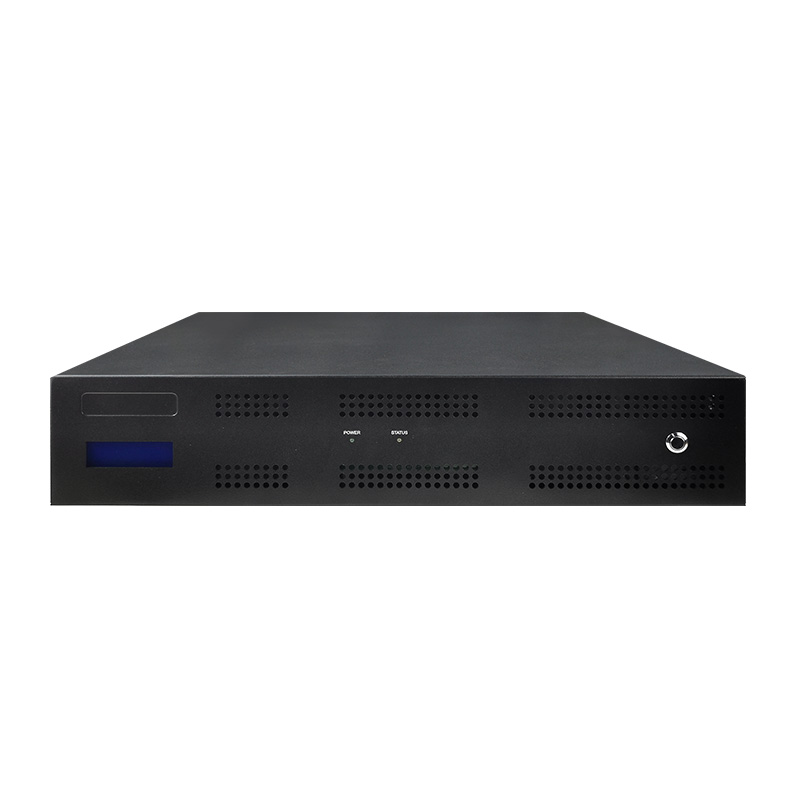

GNS-1444

基于海光 34xx 系列的信创定制服务器

产品型录

产品介绍
产品规格
档案下载

新一代高性能国产化 x86 处理器，支持多线程（SMT），可无缝应用到生态链中。GNS-1444 适配海光 3 系 4 号系列 CPU，平台集成 2 个千兆以太网电口和 4 个 PCIe 接口，网卡芯片采用国产化网讯芯片，进一步提高了产品的国产化率。

主要特点

◆ 采用国产化海光34xx高性能处理器

◆ 适配麒麟，统信，方德等国产化操作系统

◆ 接口丰富，性能均衡稳定

◆ 标准mATX主板

处理器	支持海光 34xx 系列处理器
内存	支持 4 根 DDR5 内存插槽支持 UDIMM/RDIMM 内存支持 DDR5 ECC 内存支持 DDR4 3200/2666/2400/2133 ECC 内存
PCI-E 扩展插槽	4 组扩展槽 2 个 PCIe 4.0 x8 插槽 x4 信号 1 个 PCIe 4.0 x16 插槽 x16 信号 1 个 PCIe 4.0 x8 插槽 x1 信号
存储设备	集成 4 个 SATA 硬盘控制器
电源	标准 ATX 电源单电源 250W/350W 冗余 350W
其他端口	2 x USB 3.0 接口 1 x USB 3.0 19Pin 接口 1 x USB 2.0 9pin 接口 1 x VGA 接口 1x BMC 千兆管理网口 2x 板载千兆 RJ45 网口

管理功能	带 BMC 芯片，支持 IPMI2.0、KVM Over IP、虚拟媒介等高级管理功能，对外提供 1 个 1Gbps RJ45 管理口，支持 NCSI 功能
显示	集成显示控制器（最大分辨率 1920 x 1200）
尺寸	243.84mm x 243.84mm
工作环境	工作温度：0℃~ 40℃ (41 ℉~ 104 ℉ ) 存储温度：-40℃~ 60℃ (-40 ℉ ~ 140 ℉ ) 相对湿度：0% ~ 90%（无凝结）
