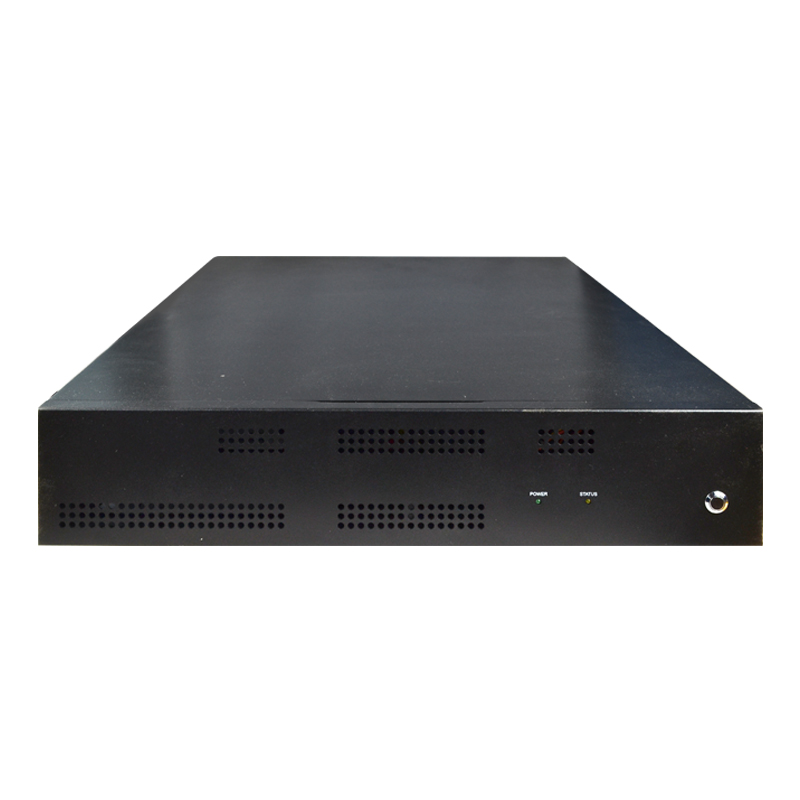

GNS-1412

基于海光3230/3250系列CPU，支持多PCIe扩展槽的2U网安整机

产品型录

产品介绍
产品规格
档案下载

基于海光3230/3250系列CPU，支持多PCIe扩展槽的2U网安整机
产品概述：
国产化海光二号平台，具有安全可控，通用性等。

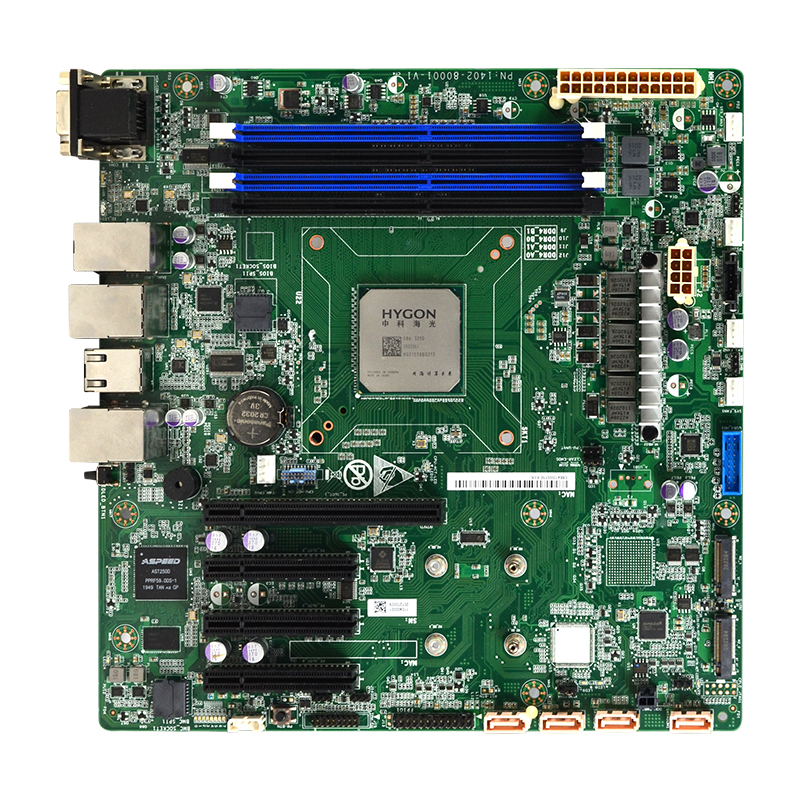

平台集成1个VGA口，1个COM口，4个千兆以太网电口和1个管理口，4个USB口。平台可支持到128G内存，4个SATA口，内置2个M.2，20pinheader USB3.0 ，外接引出PS/2键鼠接口，主板后置支持多扩展，主板为OEM产品可应用在服务器产品。
主要特点：
◆ 国产化X86平台，生态完善
◆ 4个DDR4 UDIMM插槽可支持到128GB
◆ 内置4个SATA口，2个M.2
◆ 可支持3个x8PCIe插槽，支持1个x16PCIe插槽，主板后置支持多扩展，可以满足不同类型的半高网卡/显卡的定制需求
◆ 适用于网闸、VPN网关、防火墙、IPS、IDS等网安解决方案
◆ 支持多种开源和国产化操作系统
◆ 满足服务器产品的规格需求

CPU	海光3230 (4核)/3250( 8核)
内存	支持4根DDR4内存插槽
	支持DDR4 ECC内存（内存运行频率可至2666MHz、工作频率根据配置不同而不同）
	支持UDIMM/RDIMM内存
PCIe扩展	3个x8PCIe插槽，支持1个x16PCIe插槽
存储控制器	4个SATA接口，2个M.2

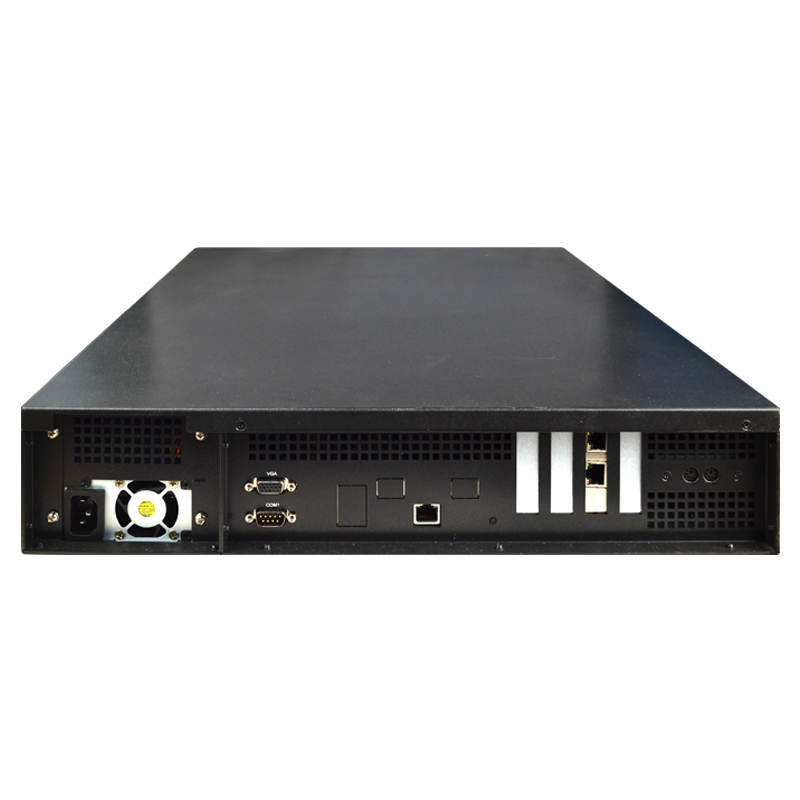

外置端口	1个VGA，1个COM口，4个RJ45，4个USB
电源	单电250W/冗电350W
机箱尺寸	560mmx440mmx89mm（长x宽x高）
