GNS-1414

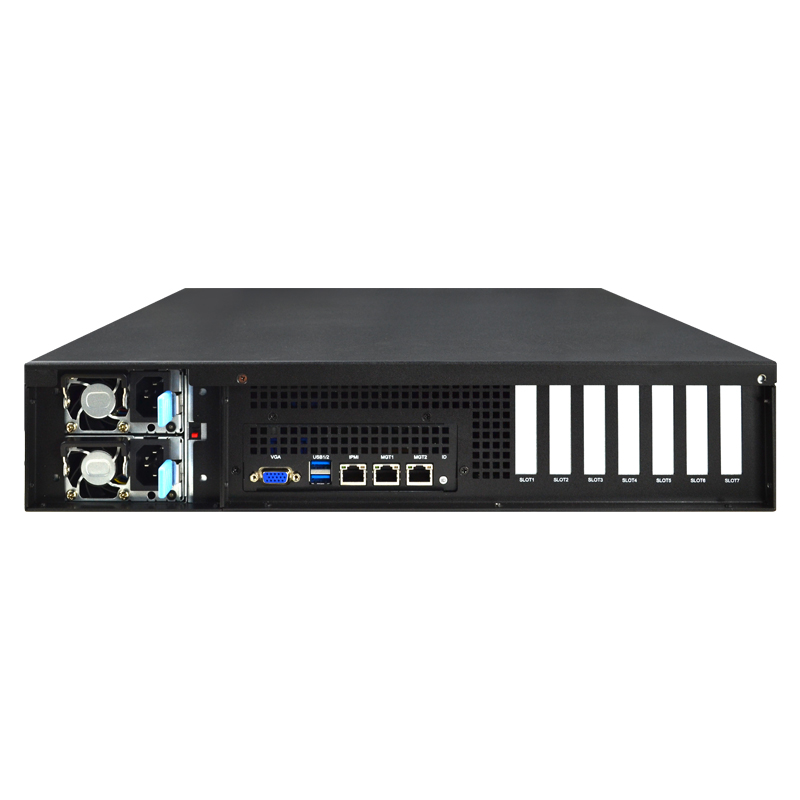

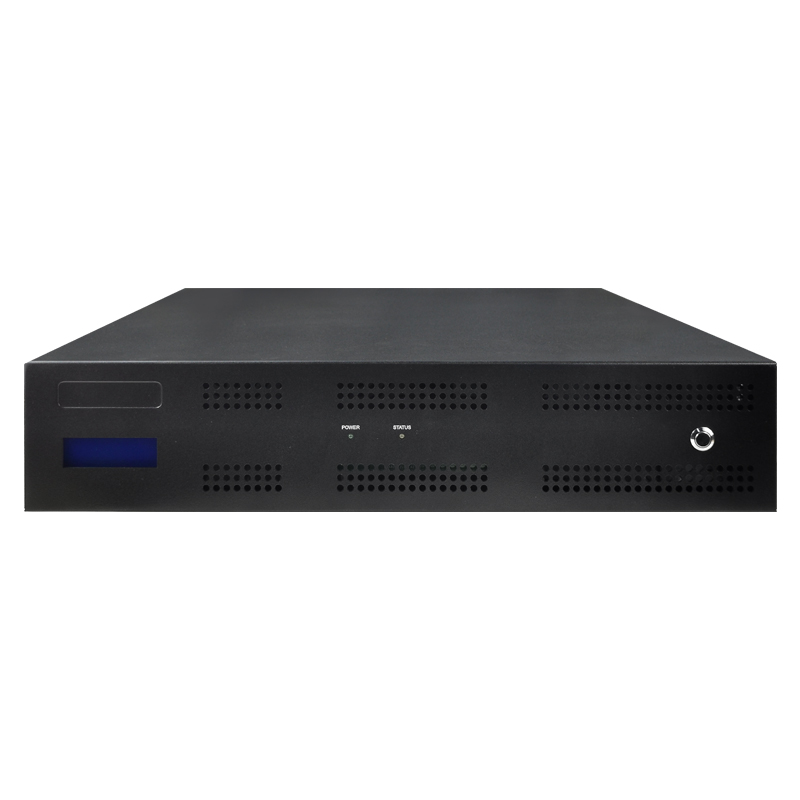

基于海光 3230/3250 CPU，2电口，IPMI接口，支持4个PCIe扩展插槽的2U网络安全计算机

产品型录

产品介绍
产品规格
档案下载

基于海光 3230 (4 核 )/3250( 8 核 )CPU，集成1个VGA口2个千兆以太网电口和1个IPMI 管理口，2个USB 口。可支持到 128G内存，4个SATA口，内置1个COM口，20pinheader USB3.0 ，主板后置，支持多扩展，可应用在服务器产品。

主要特点:

◆ 国产化X86平台，生态完善

◆ 4 个 DDR4 UDIMM 插槽可支持到128GB

◆ 板载1个VGA 口，1个 IPMI 口，2个千兆RJ45，2个USB 2.0

◆ 可支持3个x8 PCIe 插槽，1 个 x16PCIe 插槽

◆ 内置4个SATA 口，1 个 MicroSD卡，20PIN支持2组USB 3.0 插针

◆ 支持多扩展，可以满足不同类型的各种半高网卡 / 显卡的定制需求

◆ 适用于网闸、VPN 网关、防火墙、IPS、IDS 等网安解决方案

◆ 支持开源和国产化操作系统

CPU	海光3230 (4核)/3250( 8核)
内存	支持4根DDR4内存插槽
	支持DDR4 ECC内存（内存运行频率可至2666MHz、工作频率根据配置不同而不同）
	支持UDIMM/RDIMM内存
PCIe扩展	4组扩展槽 2个X8PCIe插槽X4信号，1个X16PCIe插槽X16信号，一个x8PCIe插槽x1信号
存储控制器	4个SATA接口
外置端口	1个VGA，1个IPMI，2个RJ45，2个USB
电源	单电/冗电
机箱尺寸	560mmx440mmx89mm（长x宽x高）
