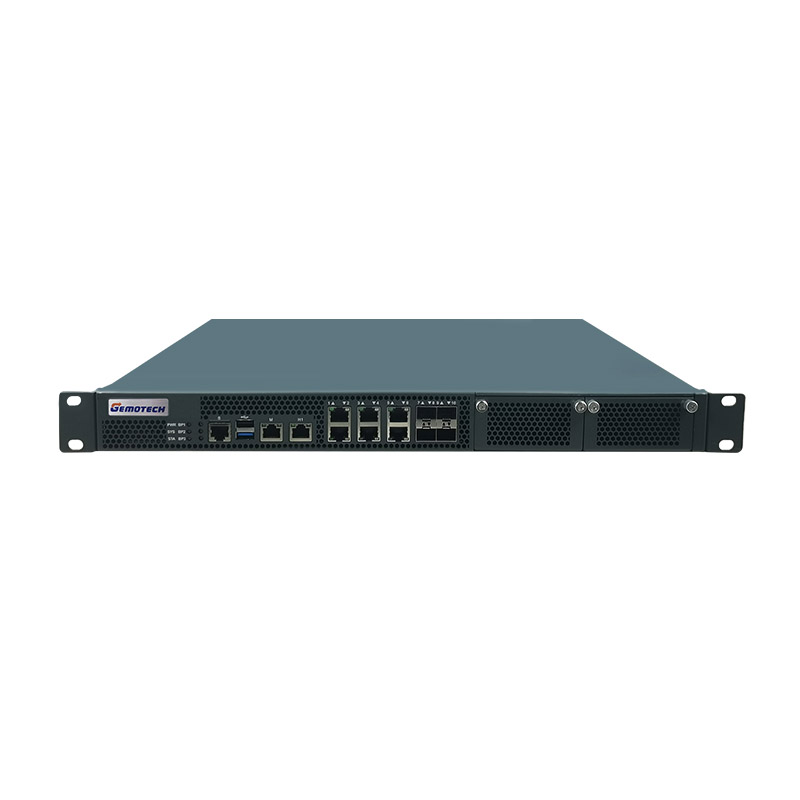

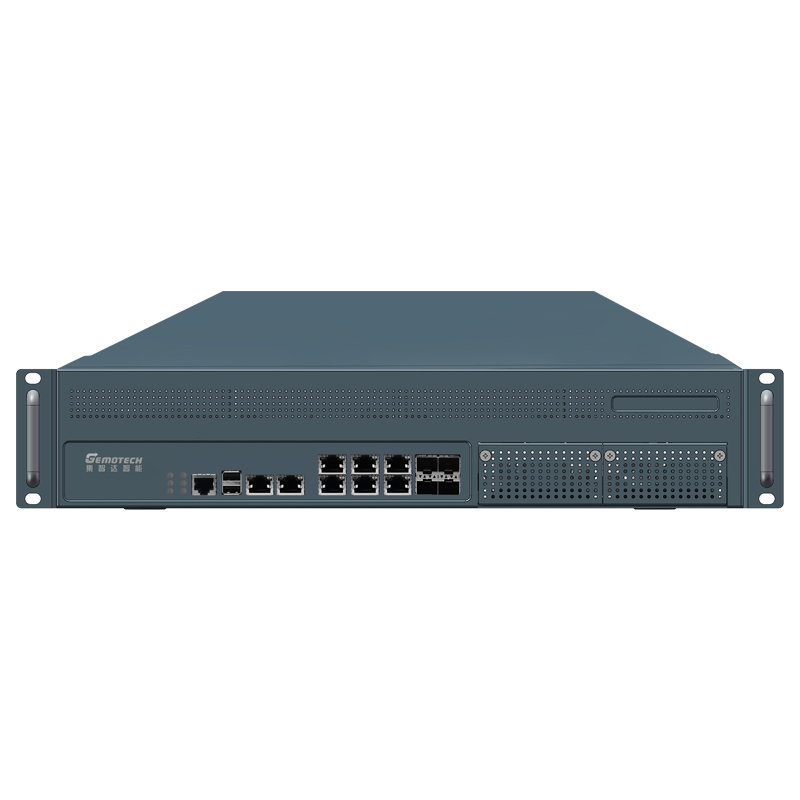

GNS-1413

基于海光3系CPU、集成可信计算、国产网卡芯片的8电4光2扩的1U/2U网安整机

产品型录

产品介绍
产品规格
档案下载

国产化 X86 处理器，支持多线程 (SMT)，可无缝应用到生态链中。GNS-1413 兼容海光三号 CPU，平台集成 8 个千兆以太网电口和 4 个千兆以太网光口，3 组 Bypass，网卡芯片采用国产化网讯芯片，进—步提高自主可控。平台可支持到128G 内存，2 个 SATA3.0 接口，2 个 Mini PCle 接口，1 个支持 TPM 卡的接口，支持 2 个 PCle 8x 前置扩展插槽，内置 2 个 USB3.0 Pin header，1 个内置串口等。

主要特点

◆ 支持海光二号 CPU 及海光三号 CPU

◆ 内置 1 个 TPM 卡接口，实现安全可信

◆ 板载 8 千兆电接口4 千兆光接口，国产化网卡芯片

◆ 板载 4 条 DDR4 UDIMM 插槽，可达到 128GB 内存容量

◆ 内置2个MiniPCIe插槽，满足客户卡需求

◆ 平台高计算性能、高内存带宽、高 I/0 带宽，应用广泛，移植性好

◆ 完善的生态链，可支持国产或开源系统

处理器	海光3系2号/3号系列CPU
内存	2通道，4条DIMM，可支持到128G内存容量
扩展	2个USB 3.0，板内预留双排插针 2个PCIe 8x 的内置扩展插槽，二选一可插客户卡 1个20Pinheader，支持TPM 2.0 可信卡 2个 Mini PCIe 接口，可插4G/WIFI模块或客户卡
前面板 I/O 接口	PWR/SYS/STA灯，3组Bypass灯 1 个 RJ45串口 2 个 USB3.0接口 8 个 RJ45千兆网口 4 个 SFP千兆光口 2 个前置网络扩展卡接口

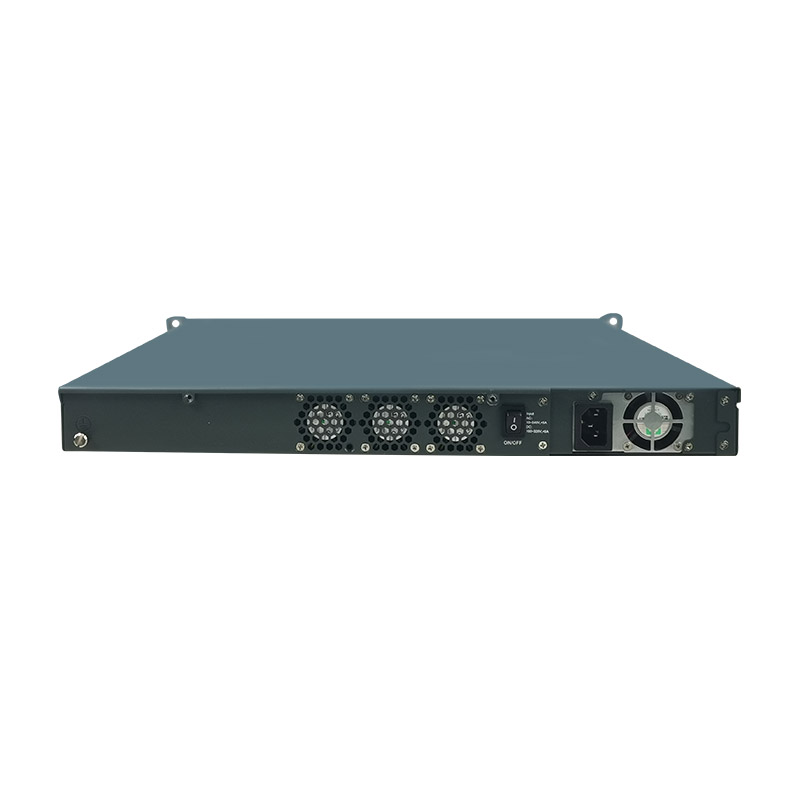

后面板 I/O 接口	1个电源开关按键 1/2个外接电源输入接口
以太网口	板载 8 个 RJ45 千兆电口，带有 3 组 bypass 功能板载 4 个 SFP 千兆光口网卡芯片：网迅 WX1860 支持10/100/1000MB
存储	2个7-pin SATA3.0 接口，标准接口定义
电源	单电/冗电
操作系统	支持开源操作系统如 centos，ubantu，redhat 等也可以支持国产化操作系统，如凝思
工作环境	工作温度 0℃ ~ 45℃ 存储温度 -40℃~70℃ 0% ~ 90% 相对湿度，无凝露
